Rake Trim - Slimline®
Rake Trim - Slimline®. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.26.018.FL1034

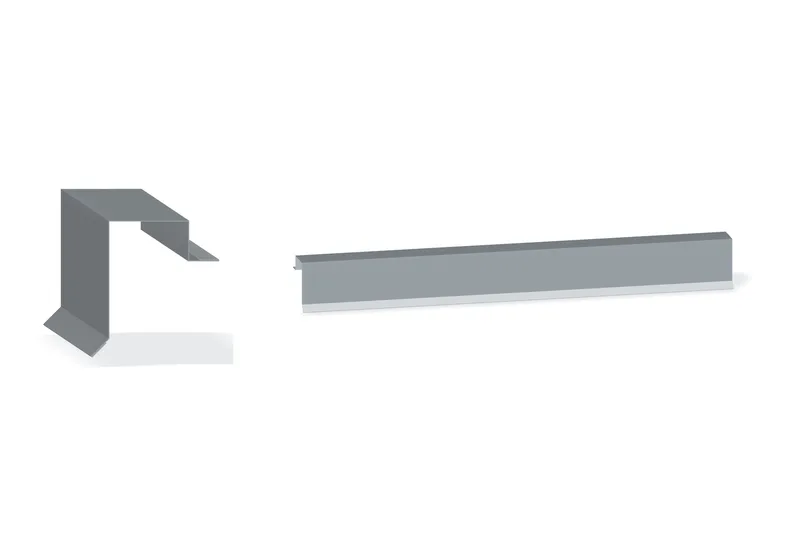

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- FL-1030 — 29 gauge, 10'-2"
- A 3 7/16"; girth 8 13/16"; 4.50 lb per piece
- FL-1030 — 26 gauge, 10'-2"
- A 3 7/16"; girth 8 13/16"; 5.82 lb per piece
- FL-1031 — 29 gauge, 10'-2"
- A 3 5/16"; girth 8 11/16"; 4.44 lb per piece
- FL-1031 — 26 gauge, 10'-2"
- A 3 5/16"; girth 8 11/16"; 5.73 lb per piece
- FL-1032 — 29 gauge, 10'-2"
- A 3 3/16"; girth 8 9/16"; 4.37 lb per piece
- FL-1032 — 26 gauge, 10'-2"
- A 3 3/16"; girth 8 9/16"; 5.65 lb per piece
- FL-1033 — 29 gauge, 10'-2"
- A 3 1/16"; girth 8 7/16"; 4.31 lb per piece
- FL-1033 — 26 gauge, 10'-2"
- A 3 1/16"; girth 8 7/16"; 5.57 lb per piece
- FL-1034 — 29 gauge, 10'-2"
- A 2 15/16"; girth 8 5/16"; 4.24 lb per piece
- FL-1034 — 26 gauge, 10'-2"
- A 2 15/16"; girth 8 5/16"; 5.49 lb per piece
Published slopes are FL-1030 3–4:12, FL-1031 5–6:12, FL-1032 7:12, FL-1033 8–9:12, and FL-1034 10:12. The live page's CF-115/CF-301A table belongs to other profiles and is not used. These are published stock-profile references. Match the part number, gauge and stock length before using a listed weight; custom cut lengths are not assigned a weight here.
Supplier specifications
| Part # | Dim. A | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|---|
| FL-1030 | 3 7/16" | 10'-2" | 8 13/16" | 29 | 4.50 lb |
| FL-1030 | 3 7/16" | 10'-2" | 8 13/16" | 26 | 5.82 lb |
| FL-1031 | 3 5/16" | 10'-2" | 8 11/16" | 29 | 4.44 lb |
| FL-1031 | 3 5/16" | 10'-2" | 8 11/16" | 26 | 5.73 lb |
| FL-1032 | 3 3/16" | 10'-2" | 8 9/16" | 29 | 4.37 lb |
| FL-1032 | 3 3/16" | 10'-2" | 8 9/16" | 26 | 5.65 lb |
| FL-1033 | 3 1/16" | 10'-2" | 8 7/16" | 29 | 4.31 lb |
| FL-1033 | 3 1/16" | 10'-2" | 8 7/16" | 26 | 5.57 lb |
| FL-1034 | 2 15/16" | 10'-2" | 8 5/16" | 29 | 4.24 lb |
| FL-1034 | 2 15/16" | 10'-2" | 8 5/16" | 26 | 5.49 lb |
Product resources
Request current drawings and installation instructions for your selected product.

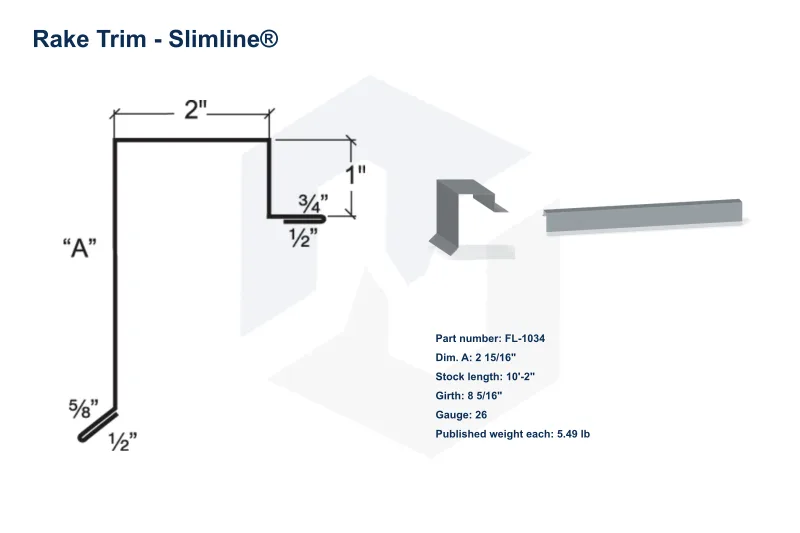

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
