TRIM CATALOG · Exposed Fastener Trim
Rake Trim - PBU and MasterRib®
0 ratings0 recorded purchasers
Rake Trim - PBU and MasterRib®. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.26.258.FL1006

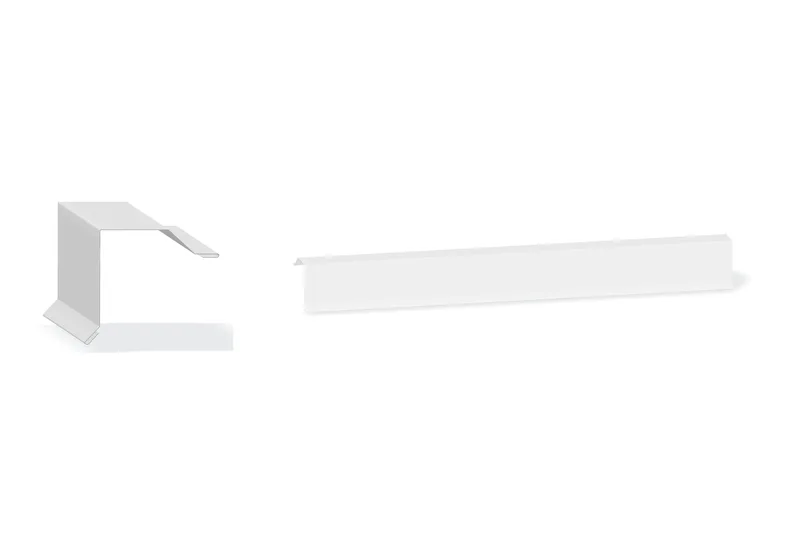

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$28.73/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"
- Published gauges
- 29; 26
- Published girth
- 8 11/16"; 8 9/16"; 8 7/16"; 8 5/16"; 8 3/16"
- Published dimension A
- 3 3/16"; 3 1/16"; 2 15/16"; 2 13/16"; 2 11/16"
- Published roof slopes
- 3-4:12; 5-6:12; 7:12; 8-9:12; 10:12
Supplier specifications
| Part # | Dim. A | Roof Slope | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|---|---|
| FL-1002 | 3 3/16" | 3-4:12 | 10'-2" | 8 11/16" | 29 | 4.43# |
| FL-1002 | 3 3/16" | 3-4:12 | 10'-2" | 8 11/16" | 26 | 5.73# |
| FL-1003 | 3 1/16" | 5-6:12 | 10'-2" | 8 9/16" | 29 | 4.37# |
| FL-1003 | 3 1/16" | 5-6:12 | 10'-2" | 8 9/16" | 26 | 5.65# |
| FL-1004 | 2 15/16" | 7:12 | 10'-2" | 8 7/16" | 29 | 4.30# |
| FL-1004 | 2 15/16" | 7:12 | 10'-2" | 8 7/16" | 26 | 5.56# |
| FL-1005 | 2 13/16" | 8-9:12 | 10'-2" | 8 5/16" | 29 | 4.24# |
| FL-1005 | 2 13/16" | 8-9:12 | 10'-2" | 8 5/16" | 26 | 5.48# |
| FL-1006 | 2 11/16" | 10:12 | 10'-2" | 8 3/16" | 29 | 4.18# |
| FL-1006 | 2 11/16" | 10:12 | 10'-2" | 8 3/16" | 26 | 5.40# |
Product resources
Request current drawings and installation instructions for your selected product.

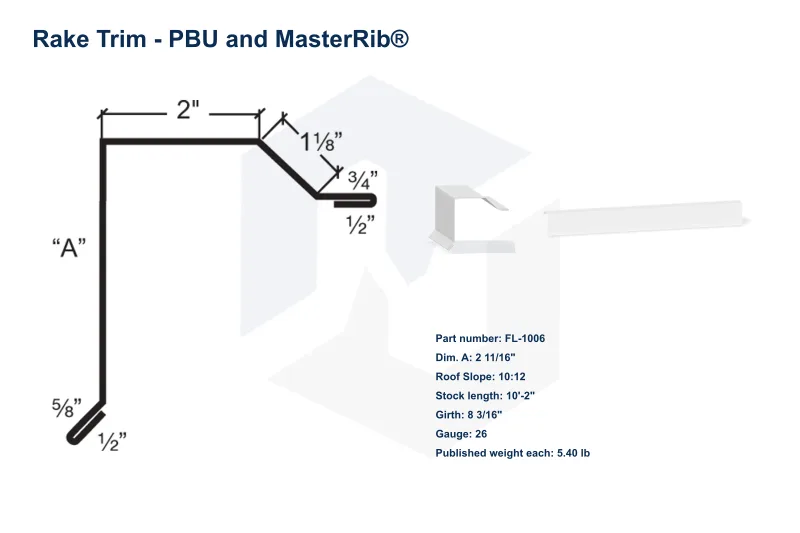

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
