Rake Trim - PBR
0 ratings0 recorded purchasers
Rake Trim - PBR. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.26.018.FL1010

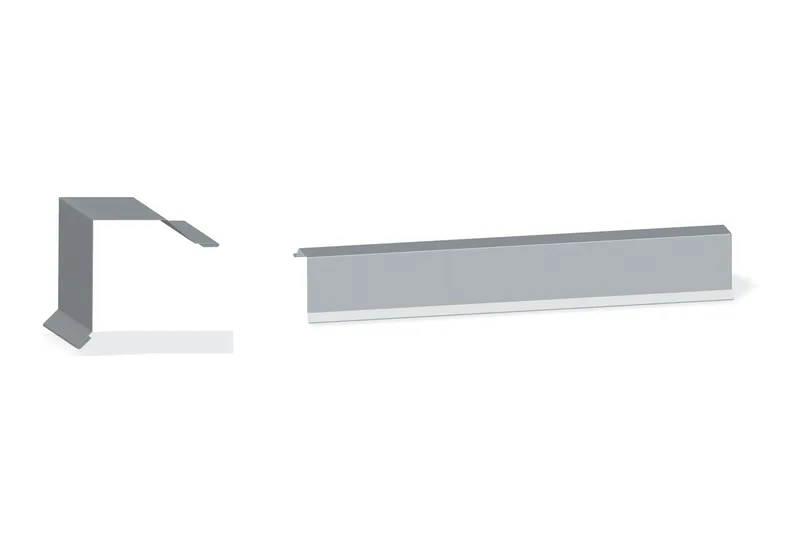

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$31.24/1 piece
per piece
Price recorded
Published product details
- Published gauges
- 29; 26
- Published girth
- 10 13/16"; 10 11/16"; 10 9/16"; 10 7/16"
- Published dimension A
- 3 11/16"; 3 9/16"; 3 7/16"; 3 5/16"
- Published roof slopes
- 3-4:12; 5-6:12; 7:12; 8-9:12
- Published weight per piece
- 5.51#; 7.13#; 5.45#; 7.05#; 5.39#; 6.96#; 5.32#; 6.88#

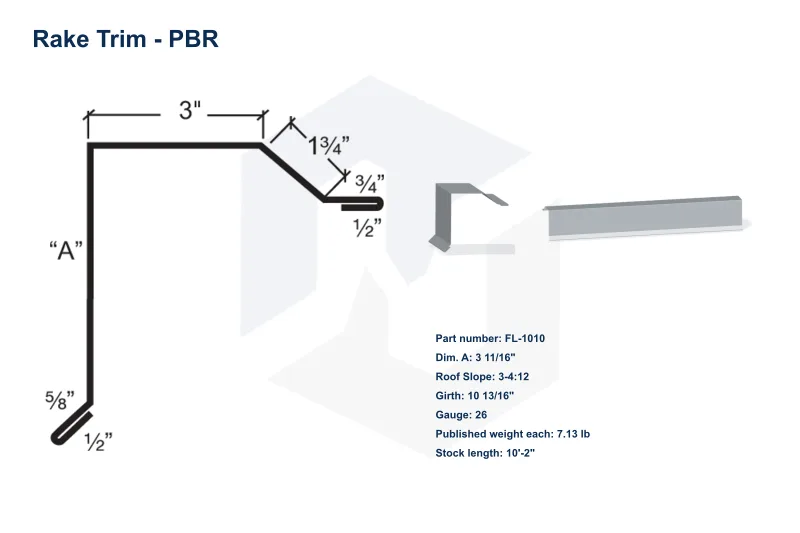

Supplier specifications
| Part # | Dim. A | Roof Slope | Girth | Gauge | Weight Each |
|---|---|---|---|---|---|
| FL-1010 | 3 11/16" | 3-4:12 | 10 13/16" | 29 | 5.51# |
| FL-1010 | 3 11/16" | 3-4:12 | 10 13/16" | 26 | 7.13# |
| FL-1011 | 3 9/16" | 5-6:12 | 10 11/16" | 29 | 5.45# |
| FL-1011 | 3 9/16" | 5-6:12 | 10 11/16" | 26 | 7.05# |
| FL-1012 | 3 7/16" | 7:12 | 10 9/16" | 29 | 5.39# |
| FL-1012 | 3 7/16" | 7:12 | 10 9/16" | 26 | 6.96# |
| FL-1013 | 3 5/16" | 8-9:12 | 10 7/16" | 29 | 5.32# |
| FL-1013 | 3 5/16" | 8-9:12 | 10 7/16" | 26 | 6.88# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
