Rake Trim - 5V Crimp
Rake Trim - 5V Crimp. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.26.018.FL1022

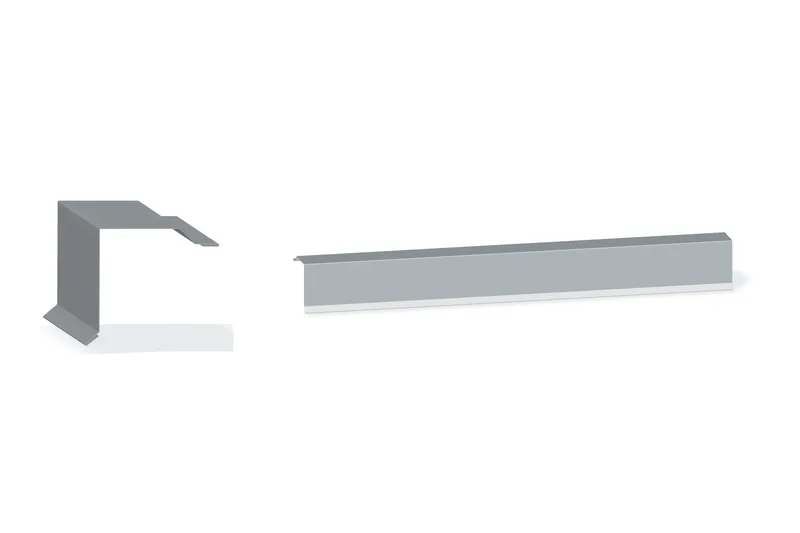

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- FL-1020 — 29 gauge, 10'-2"
- A 2 15/16"; girth 8 7/16"; 4.31 lb per piece
- FL-1020 — 26 gauge, 10'-2"
- A 2 15/16"; girth 8 7/16"; 5.57 lb per piece
- FL-1021 — 29 gauge, 10'-2"
- A 2 13/16"; girth 8 5/16"; 4.24 lb per piece
- FL-1021 — 26 gauge, 10'-2"
- A 2 13/16"; girth 8 5/16"; 5.49 lb per piece
- FL-1022 — 29 gauge, 10'-2"
- A 2 11/16"; girth 8 3/16"; 4.18 lb per piece
- FL-1022 — 26 gauge, 10'-2"
- A 2 11/16"; girth 8 3/16"; 5.40 lb per piece
- FL-1023 — 29 gauge, 10'-2"
- A 2 9/16"; girth 8 1/16"; 4.12 lb per piece
- FL-1023 — 26 gauge, 10'-2"
- A 2 9/16"; girth 8 1/16"; 5.32 lb per piece
- FL-1024 — 29 gauge, 10'-2"
- A 2 7/16"; girth 7 15/16"; 4.05 lb per piece
- FL-1024 — 26 gauge, 10'-2"
- A 2 7/16"; girth 7 15/16"; 5.24 lb per piece
Published slopes are FL-1020 3–4:12, FL-1021 5–6:12, FL-1022 7:12, FL-1023 8–9:12, and FL-1024 10:12. Catalog FL-1022 dimension A is 2 11/16 inches; the live table's 2 11/15 inches and 0.3 slope are inconsistent. These are published stock-profile references. Match the part number, gauge and stock length before using a listed weight; custom cut lengths are not assigned a weight here.
Supplier specifications
| Part # | Dim. A | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|---|
| FL-1020 | 2 15/16" | 10'-2" | 8 7/16" | 29 | 4.31 lb |
| FL-1020 | 2 15/16" | 10'-2" | 8 7/16" | 26 | 5.57 lb |
| FL-1021 | 2 13/16" | 10'-2" | 8 5/16" | 29 | 4.24 lb |
| FL-1021 | 2 13/16" | 10'-2" | 8 5/16" | 26 | 5.49 lb |
| FL-1022 | 2 11/16" | 10'-2" | 8 3/16" | 29 | 4.18 lb |
| FL-1022 | 2 11/16" | 10'-2" | 8 3/16" | 26 | 5.40 lb |
| FL-1023 | 2 9/16" | 10'-2" | 8 1/16" | 29 | 4.12 lb |
| FL-1023 | 2 9/16" | 10'-2" | 8 1/16" | 26 | 5.32 lb |
| FL-1024 | 2 7/16" | 10'-2" | 7 15/16" | 29 | 4.05 lb |
| FL-1024 | 2 7/16" | 10'-2" | 7 15/16" | 26 | 5.24 lb |
Product resources
Request current drawings and installation instructions for your selected product.

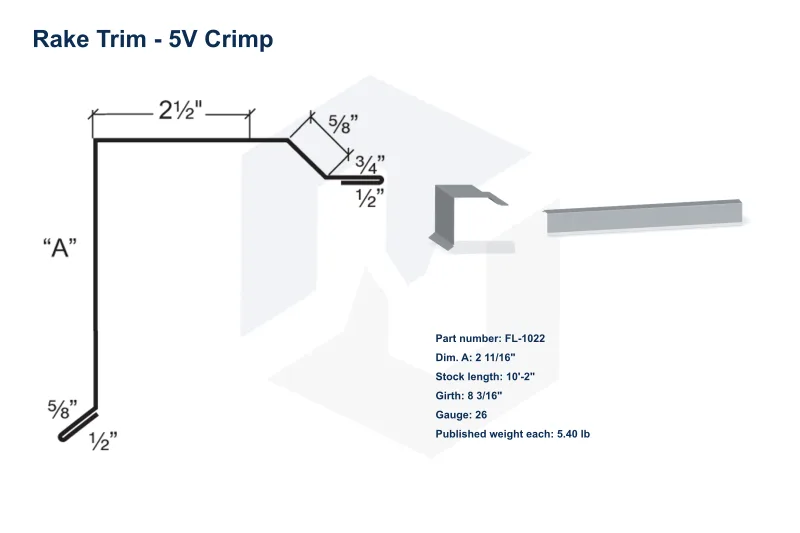

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
