TRIM CATALOG · Exposed Fastener Trim
Rake and Corner Trim - Perm-Clad®
0 ratings0 recorded purchasers
Rake and Corner Trim - Perm-Clad®. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, size, and length for your project.
Part: 60.29.018.AG410

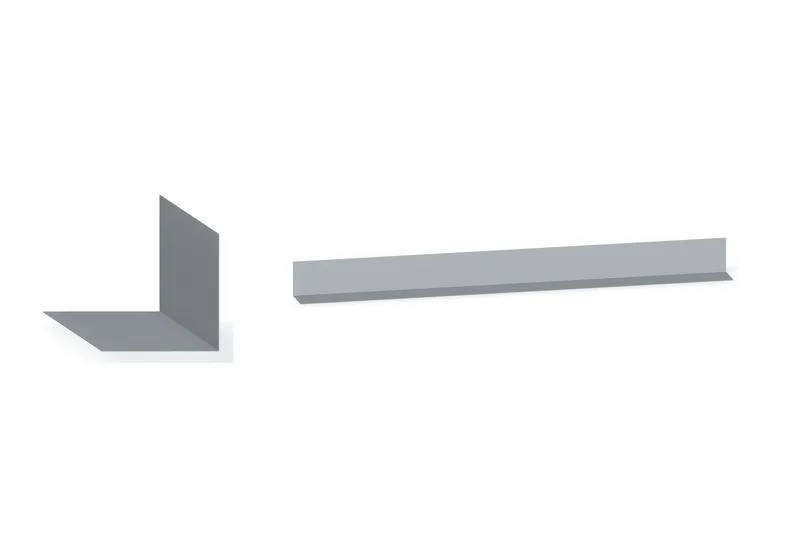

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$22.78/1 piece
per piece
Price recorded
Published product details
- Published size
- 2 3/8" x 2 3/8"; 4 7/8" x 4 7/8"; 6 7/8" x 6 7/8"
- Published lengths
- 10'-6"; 12'-0"; 14'-0"
- Published gauges
- 29
- Published girth
- 8 1/2"; 13 1/2"; 15 1/2"
- Published weight per piece
- 4.80#; 5.70#; 6.70#; 7.60#; 9.00#; 10.60#; 8.70#; 10.40#
Supplier specifications
| Part # | Size | Length | Girth | Gauge | Weight Each | 12.10# |
| AG-410 | 2 3/8" x 2 3/8" | 10'-6" | 8 1/2" | 29 | 4.80# | |
| AG-411 | 2 3/8" x 2 3/8" | 12'-0" | 8 1/2" | 29 | 5.70# | |
| AG-412 | 2 3/8" x 2 3/8" | 14'-0" | 8 1/2" | 29 | 6.70# | |
| AG-415 | 4 7/8" x 4 7/8" | 10'-6" | 13 1/2" | 29 | 7.60# | |
| AG-416 | 4 7/8" x 4 7/8" | 12'-0" | 13 1/2" | 29 | 9.00# | |
| AG-417 | 4 7/8" x 4 7/8" | 14'-0" | 13 1/2" | 29 | 10.60# | |
| AG-420 | 6 7/8" x 6 7/8" | 10'-6" | 15 1/2" | 29 | 8.70# | |
| AG-421 | 6 7/8" x 6 7/8" | 12'-0" | 15 1/2" | 29 | 10.40# | |
| AG-422 | 6 7/8" x 6 7/8" | 14'-0" | 15 1/2" | 29 |
Product resources
Request current drawings and installation instructions for your selected product.

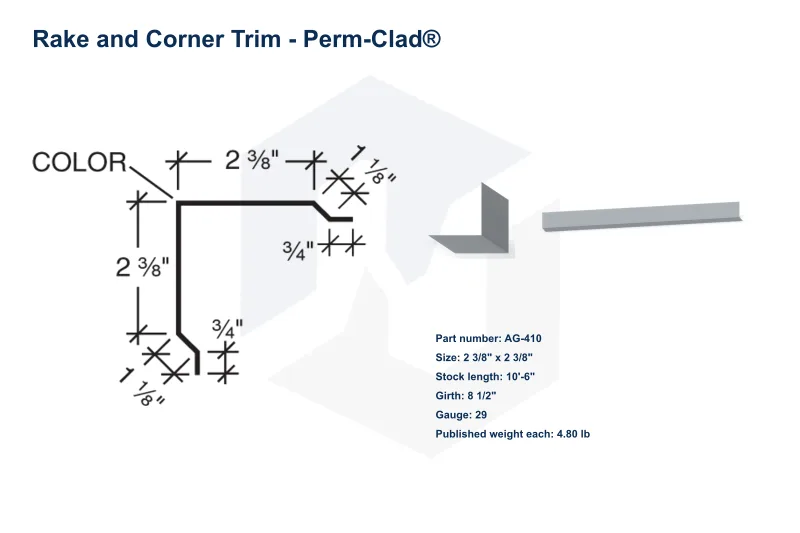

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
