TRIM CATALOG · Exposed Fastener Trim
Panel Starter Trim - AVP
0 ratings0 recorded purchasers
Panel Starter Trim - AVP. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.24.018.FL46

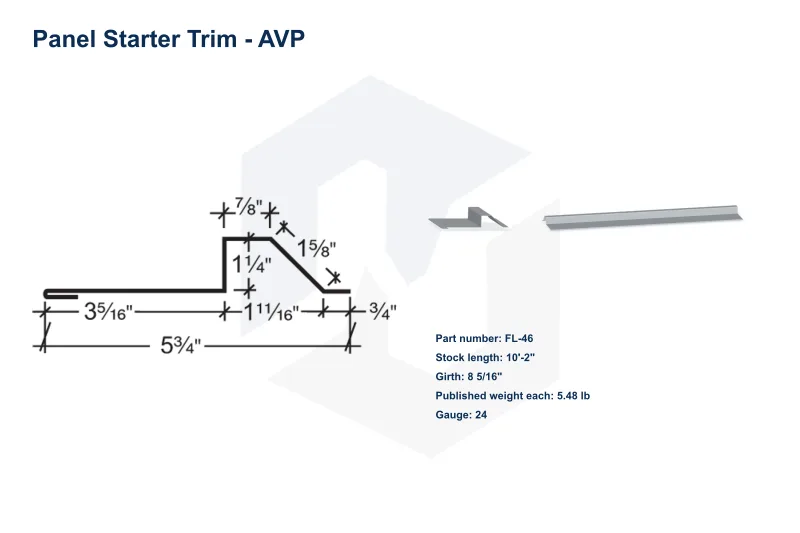

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$27.47/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 12'-0"; 14'-0"; 16'-0"; 20'-2"
- Published girth
- 8 5/16"
- Published weight per piece
- 5.48#; 6.47#; 7.55#; 8.63#; 10.87#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| FL-46 | 10'-2" | 8 5/16" | 5.48# |
| FL-46A | 12'-0" | 8 5/16" | 6.47# |
| FL-46B | 14'-0" | 8 5/16" | 7.55# |
| FL-46C | 16'-0" | 8 5/16" | 8.63# |
| FL-46D | 20'-2" | 8 5/16" | 10.87# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
