TRIM CATALOG · Concealed Fastener Trim
Panel Cap - ShadowRib™
0 ratings0 recorded purchasers
Panel Cap - ShadowRib™. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.24.018.T6061

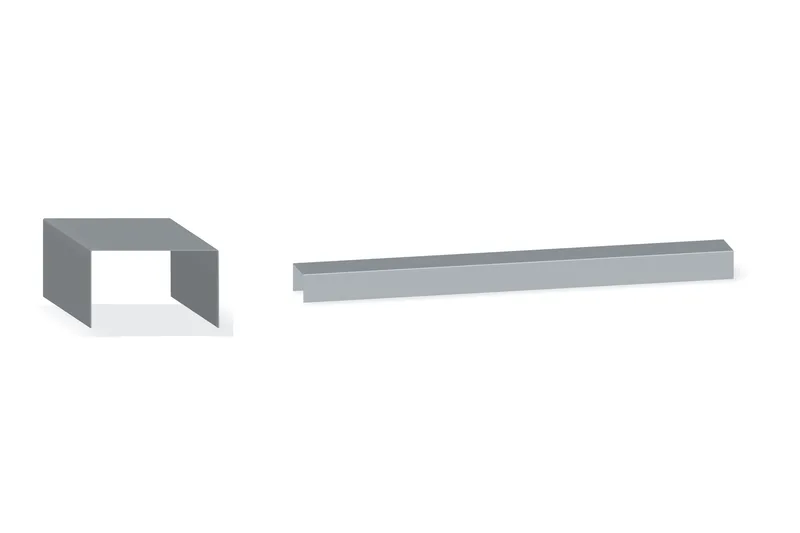

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$20.33/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 7 1/8"
- Published weight per piece
- 5.82#; 11.64#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| T-6061 | 10'-2" | 7 1/8" | 5.82# |
| T-6062 | 20'-2" | 7 1/8" | 11.64# |
Product resources
Request current drawings and installation instructions for your selected product.

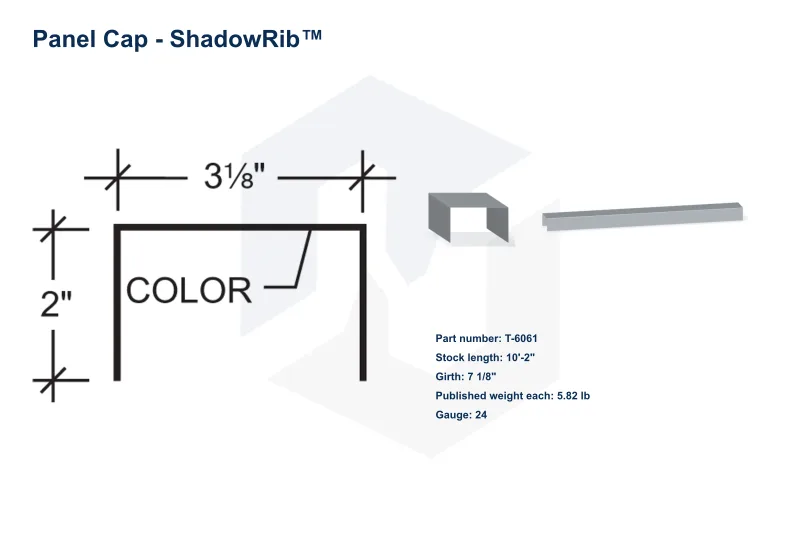

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
