TRIM CATALOG · Exposed Fastener Trim
Outside Corner Trim - PBU
0 ratings0 recorded purchasers
Outside Corner Trim - PBU. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, size, and length for your project.
Part: 60.24.018.FL840

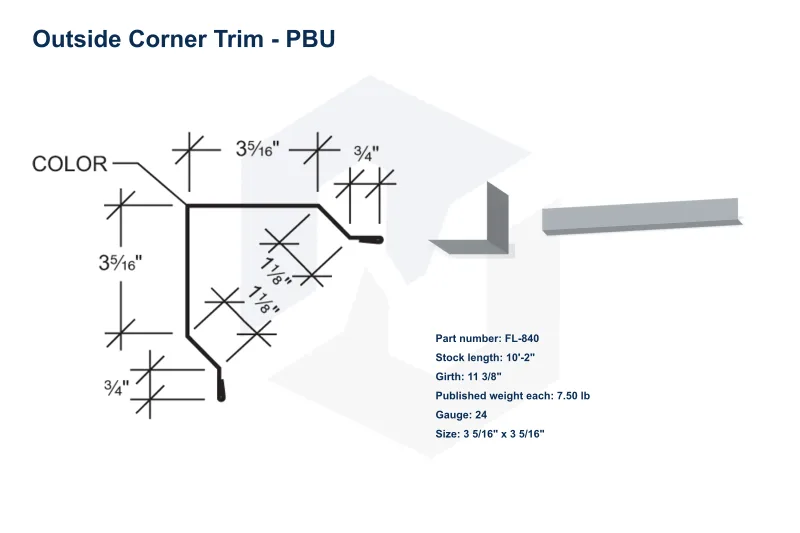

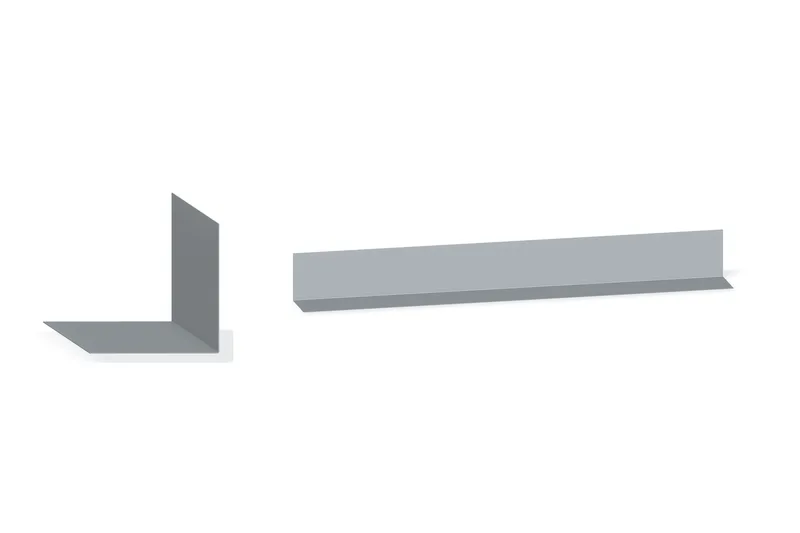

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$38.36/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 12'-0"; 14'-0"; 16'-0"; 18'-0"; 20'-2"
- Published girth
- 11 3/8"
- Published weight per piece
- 7.50#; 8.85#; 10.33#; 11.80#; 13.28#; 14.88#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| FL-840 | 10'-2" | 11 3/8" | 7.50# |
| FL-841 | 12'-0" | 11 3/8" | 8.85# |
| FL-842 | 14'-0" | 11 3/8" | 10.33# |
| FL-843 | 16'-0" | 11 3/8" | 11.80# |
| FL-844 | 18'-0" | 11 3/8" | 13.28# |
| FL-845 | 20'-2" | 11 3/8" | 14.88# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
