TRIM CATALOG · Concealed Fastener Trim
New Construction Head Trim - NuWall®
0 ratings0 recorded purchasers
New Construction Head Trim - NuWall®. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.24.018.T6236

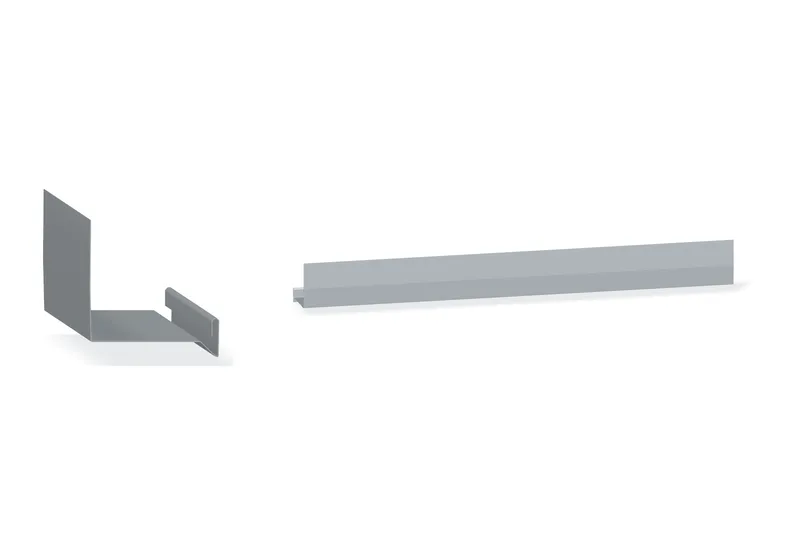

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$26.62/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 3'-6"; 10'-6"; 14'-6"; 16'-4"
- Published girth
- 8 1/8"
- Published weight per piece
- 2.33#; 6.94#; 9.30#; 13.28#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| T-6234 | 3'-6" | 8 1/8" | 2.33# |
| T-6236 | 10'-6" | 8 1/8" | 6.94# |
| T-6238 | 14'-6" | 8 1/8" | 9.30# |
| T-6240 | 16'-4" | 8 1/8" | 13.28# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
