TRIM CATALOG · Exposed Fastener Trim
Jamb Trim - AVP · order reference 60.24.018.FL48
0 ratings0 recorded purchasers
Jamb Trim - AVP. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.24.018.FL48

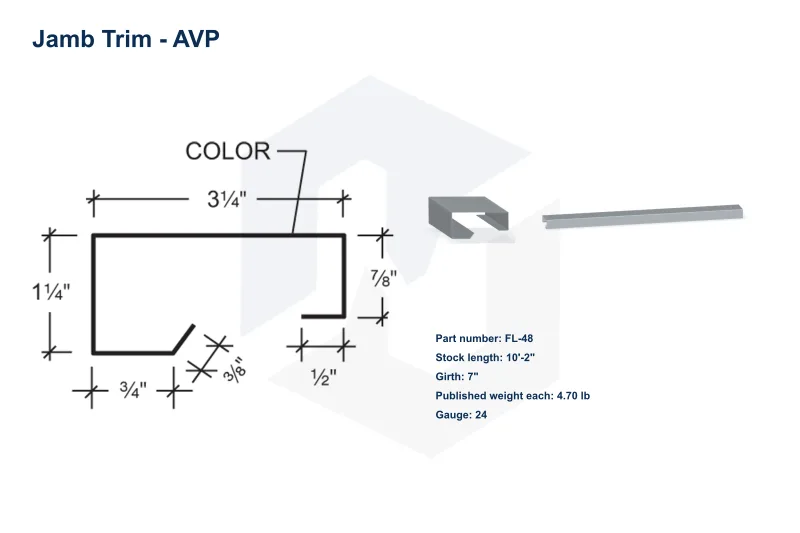

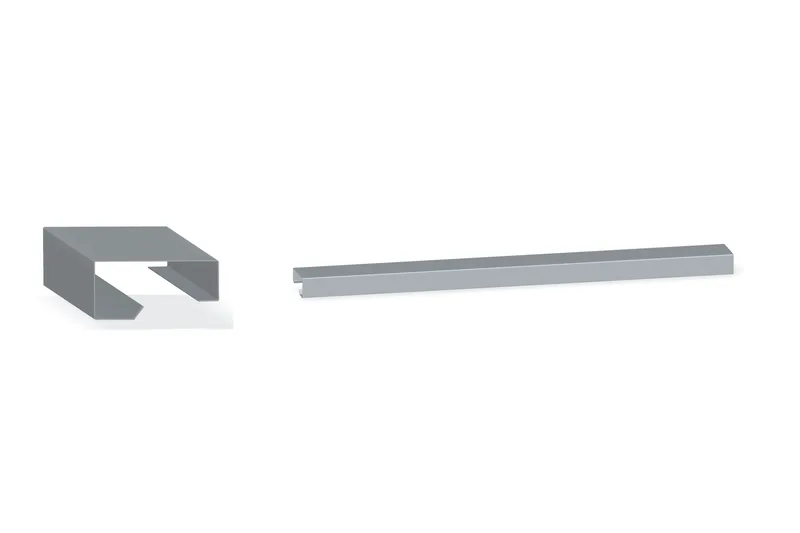

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$23.06/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 7'-3"; 10'-2"; 12'-2"; 14'-2"
- Published girth
- 7"
- Published weight per piece
- 3.40#; 4.70#; 5.80#; 6.70#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| FL-47 | 7'-3" | 7" | 3.40# |
| FL-48 | 10'-2" | 7" | 4.70# |
| FL-48B | 12'-2" | 7" | 5.80# |
| FL-48C | 14'-2" | 7" | 6.70# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
