TRIM CATALOG · Exposed Fastener Trim
Inside Corner Trim - PBU
0 ratings0 recorded purchasers
Inside Corner Trim - PBU. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, size, and length for your project.
Part: 60.24.018.FL810

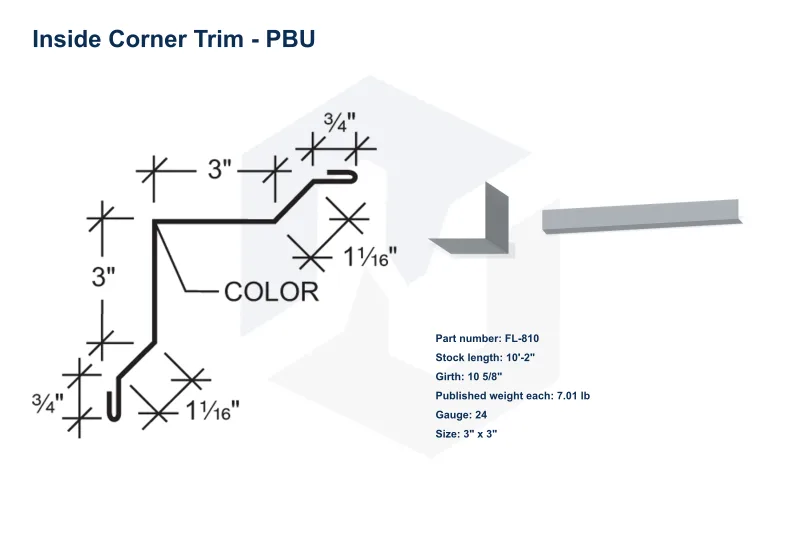

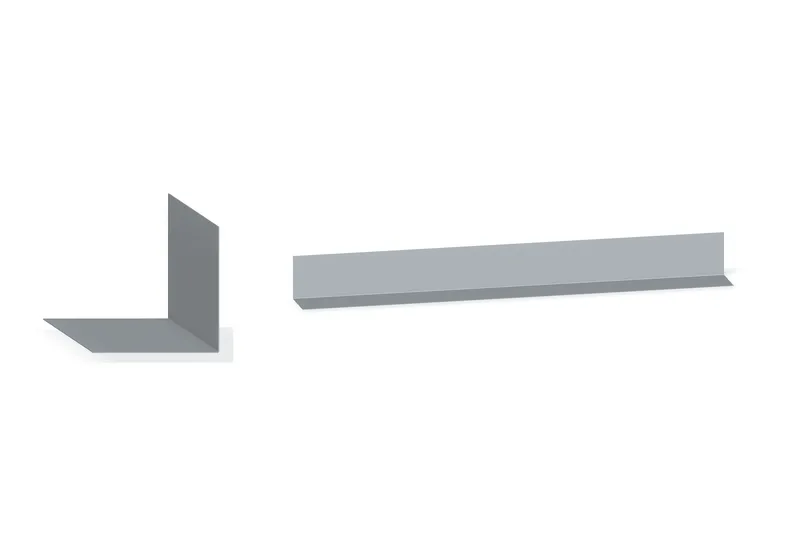

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$36.43/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 12'-0"; 14'-0"; 16'-0"; 18'-0"; 20'-2"
- Published girth
- 10 5/8"
- Published weight per piece
- 7.01#; 8.27#; 9.65#; 11.03#; 12.40#; 13.90#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| FL-810 | 10'-2" | 10 5/8" | 7.01# |
| FL-811 | 12'-0" | 10 5/8" | 8.27# |
| FL-812 | 14'-0" | 10 5/8" | 9.65# |
| FL-813 | 16'-0" | 10 5/8" | 11.03# |
| FL-814 | 18'-0" | 10 5/8" | 12.40# |
| FL-815 | 20'-2" | 10 5/8" | 13.90# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
