TRIM CATALOG · Exposed Fastener Trim

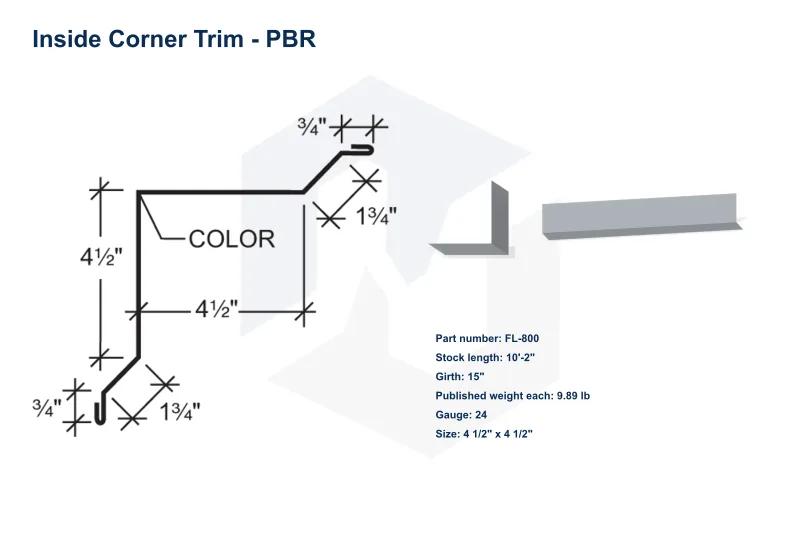

Inside Corner Trim - PBR
0 ratings0 recorded purchasers
Inside Corner Trim - PBR. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, size, and length for your project.
Part: 60.24.018.FL800

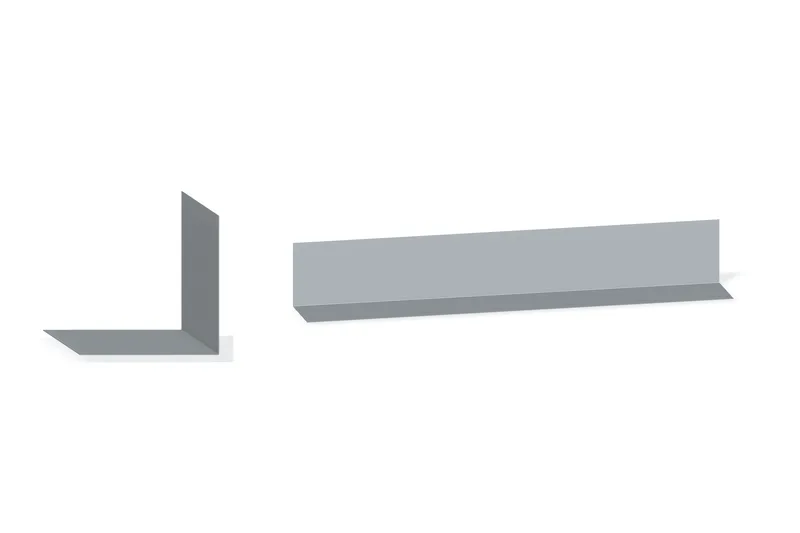

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$47.69/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 12'-0"; 14'-0"; 16'-0"; 18'-0"; 20'-2"
- Published girth
- 15"
- Published weight per piece
- 9.89#; 11.67#; 13.62#; 15.57#; 17.51#; 19.62#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| FL-800 | 10'-2" | 15" | 9.89# |
| FL-801 | 12'-0" | 15" | 11.67# |
| FL-802 | 14'-0" | 15" | 13.62# |
| FL-803 | 16'-0" | 15" | 15.57# |
| FL-804 | 18'-0" | 15" | 17.51# |
| FL-805 | 20'-2" | 15" | 19.62# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
