TRIM CATALOG · Standing Seam Roof Trim
Hem-Lock Coping Trim
0 ratings0 recorded purchasers
Hem-Lock Coping Trim. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T5341

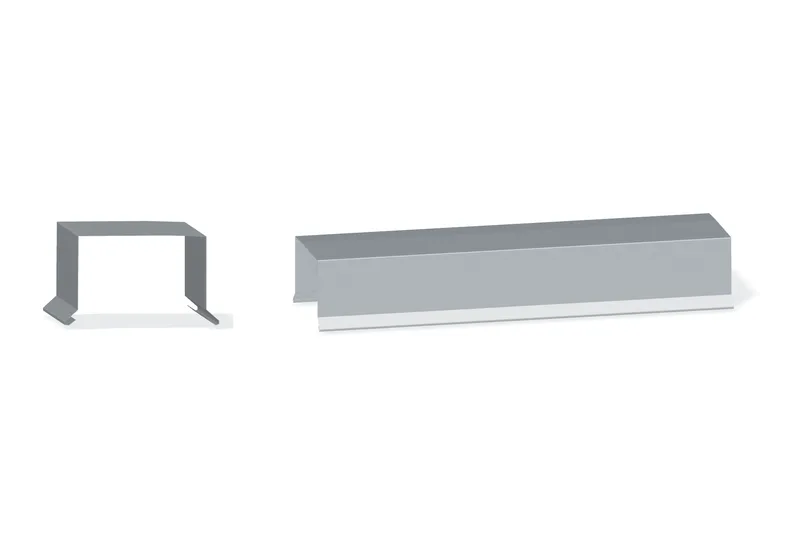

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$57.56/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 19 1/4"; 23 1/4"
- Published dimension A
- 10"; 14"
- Published weight per piece
- 15.93#; 31.59#; 19.24#; 37.98#

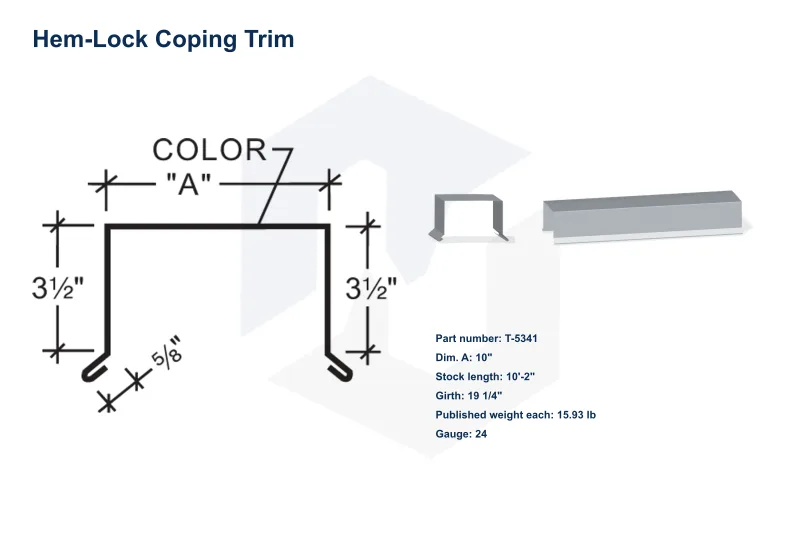

Supplier specifications
| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-5341 | 10" | 10'-2" | 19 1/4" | 15.93# |
| T-5342 | 10" | 20'-2" | 19 1/4" | 31.59# |
| T-5343 | 14" | 10'-2" | 23 1/4" | 19.24# |
| T-5344 | 14" | 20'-2" | 23 1/4" | 37.98# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
