TRIM CATALOG · Concealed Fastener Trim
Head Trim - FW-120
0 ratings0 recorded purchasers
Head Trim - FW-120. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.
Part: 69.24.018.F481

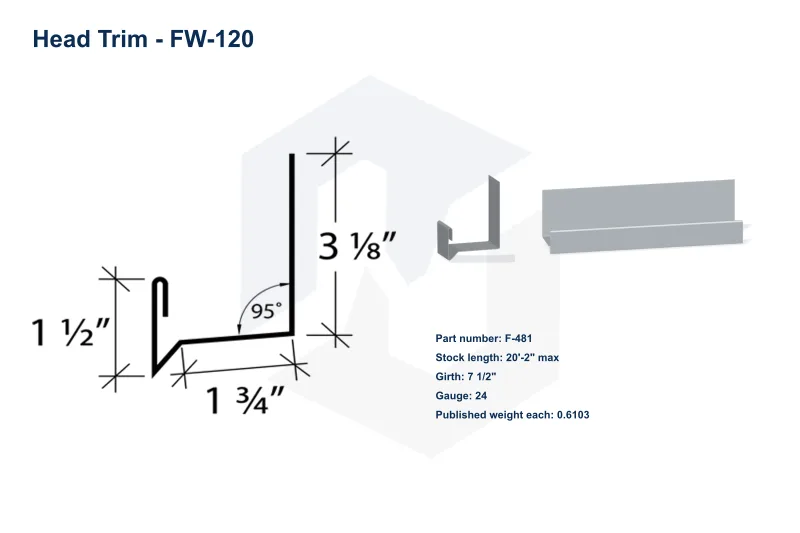

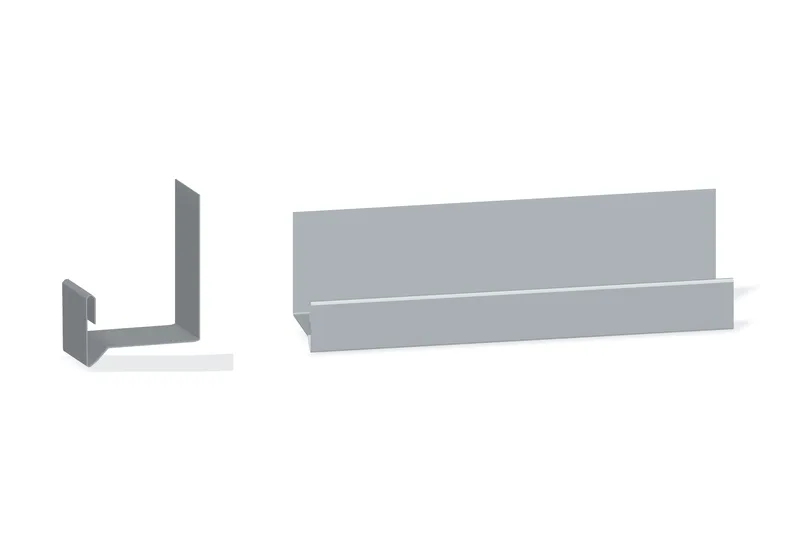

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Reference price · per 1 linear ft$5.25
per 1 linear ft
Price recorded
Published product details
- Published lengths
- 20'-2" max
- Published gauges
- 24
- Published girth
- 7 1/2"
- Published weight per piece
- 0.6103
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-481 | 20'-2" max | 7 1/2" | 24 | 0.6103 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
