TRIM CATALOG · Concealed Fastener Trim
Furring Zee - ShadowRib™
0 ratings0 recorded purchasers
Furring Zee - ShadowRib™. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T6131

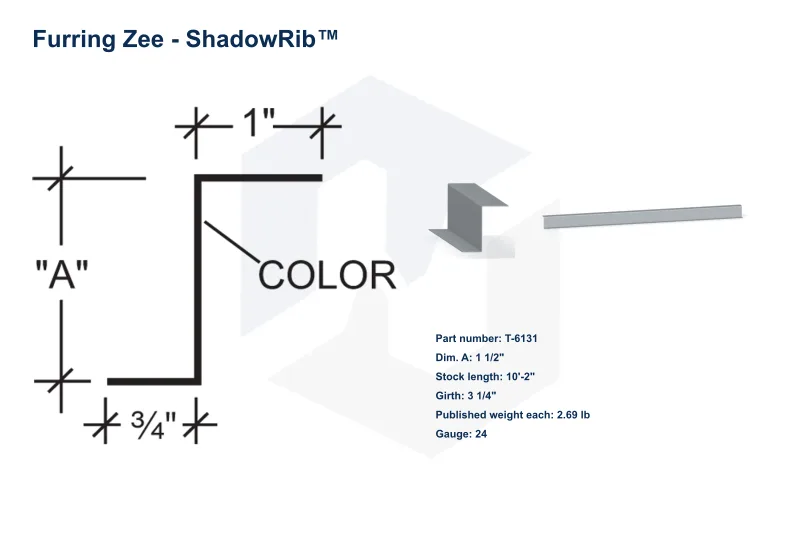

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$10.40/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"
- Published girth
- 3 1/4"; 4 3/4"
- Published dimension A
- 1 1/2"; 3"
- Published weight per piece
- 2.69#; 3.93#
Supplier specifications
| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-6131 | 1 1/2" | 10'-2" | 3 1/4" | 2.69# |
| T-6132 | 3" | 10'-2" | 4 3/4" | 3.93# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
