TRIM CATALOG · Concealed Fastener Trim
Floating Ridge Flashing
0 ratings0 recorded purchasers
Floating Ridge Flashing. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.FL205

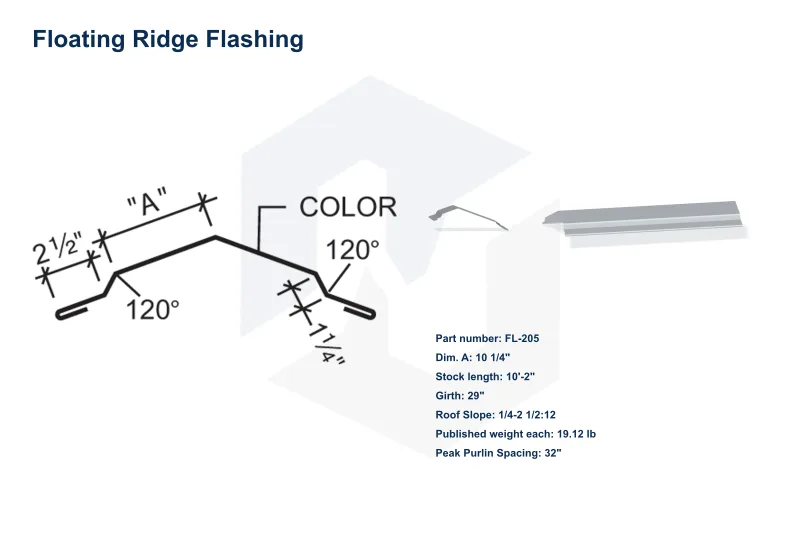

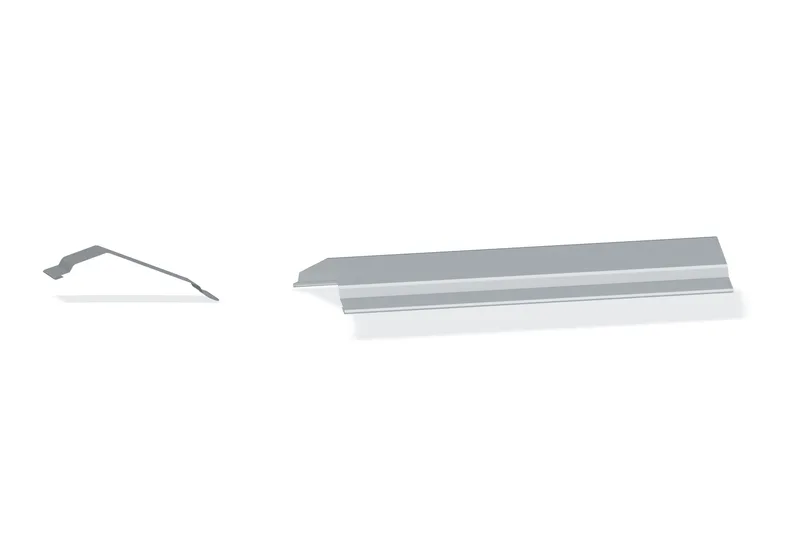

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$83.60/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"
- Published girth
- 15 1/2"; 17 1/2"; 21 1/2"; 23 1/2"; 29"; 30 1/2"
- Published dimension A
- 3 1/2"; 4 1/2"; 6 1/2"; 7 1/2"; 10 1/4"; 11"
- Published roof slopes
- 1/4-2 1/2:12; 2 9/16-4:12; 1/4-2 2/1:12
- Published weight per piece
- 10.22#; 12.00#; 14.74#; 15.49#; 19.12#; 20.11#
Supplier specifications
| Part # | Dim. A | Length | Girth | Roof Slope | Weight Each | Peak Purlin Spacing | SSR System |
|---|---|---|---|---|---|---|---|
| FL-200 | 3 1/2" | 10'-2" | 15 1/2" | 1/4-2 1/2:12 | 10.22# | 18" | UD & DL |
| FL-202 | 4 1/2" | 10'-2" | 17 1/2" | 2 9/16-4:12 | 12.00# | 18" | UD & DL |
| FL-213 | 6 1/2" | 10'-2" | 21 1/2" | 1/4-2 2/1:12 | 14.74# | 24" | UD & DL |
| FL-214 | 7 1/2" | 10'-2" | 23 1/2" | 2 9/16-4:12 | 15.49# | 24" | UD & DL |
| FL-205 | 10 1/4" | 10'-2" | 29" | 1/4-2 1/2:12 | 19.12# | 32" | UD & DL |
| FL-207 | 11" | 10'-2" | 30 1/2" | 2 9/16-4:12 | 20.11# | 32" | UD & DL |
| NOTE: Use with HW-702 9" Continous Ventilator Only | |||||||
| FL-200 | 3 1/2" | 10'-2" | 15 1/2" | 1/4-2 1/2:12 | 10.22# | 18" | BL & SLK |
| FL-202 | 4 1/2" | 10'-2" | 17 1/2" | 2 9/16-4:12 | 12.00# | 18" | BL & SLK |
| FL-213 | 6 1/2" | 10'-2" | 21 1/2" | 1/4-2 2/1:12 | 14.74# | 24" | BL & SLK |
| FL-214 | 7 1/2" | 10'-2" | 23 1/2" | 2 9/16-4:12 | 15.49# | 24" | BL & SLK |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
