TRIM CATALOG · Standing Seam Roof Trim
Fixed Ridge or Hip Flashing
0 ratings0 recorded purchasers
Fixed Ridge or Hip Flashing. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Reference part: 60.24.018.FL212

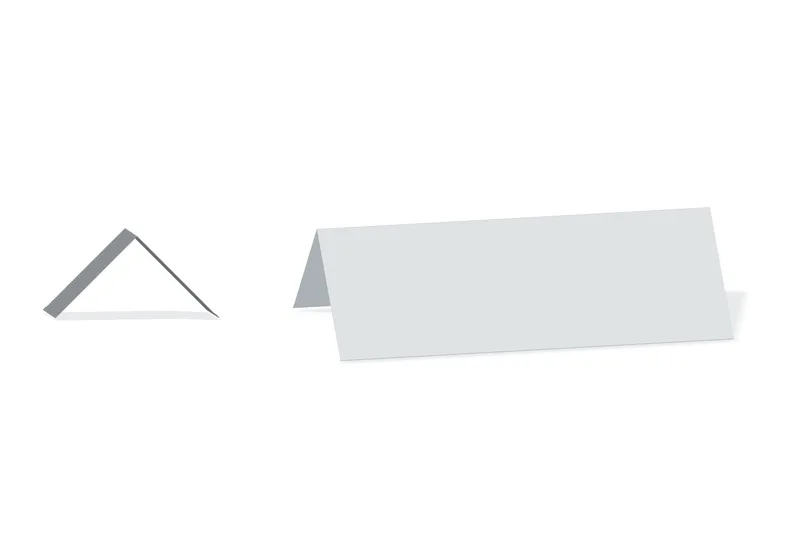

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Price recorded
Check the product inputs to add this selection.
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 10"; 12"; 14"; 13"; 15"; 24"
- Published dimension A
- 4 1/2"; 5 1/2"; 6 1/2"; 6"; 7"; 11 1/2"
Supplier specifications
| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-5071 | 4 1/2" | 10'-2" | 10" | 8.27# |
| T-5072 | 4 1/2" | 20'-2" | 10" | 16.41# |
| T-5073 | 5 1/2" | 10'-2" | 12" | 9.93# |
| T-5074 | 5 1/2" | 20'-2" | 12" | 19.69# |
| T-5075 | 6 1/2" | 10'-2" | 14" | 11.58# |
| T-5076 | 6 1/2" | 20'-2" | 14" | 22.97# |
| FL-209 | 6" | 10'-2" | 13" | 8.91# |
| FL-211 | 7" | 10'-2" | 15" | 10.28# |
| FL-212 | 11 1/2" | 10'-2" | 24" | 15.88# |
Product resources
Request current drawings and installation instructions for your selected product.

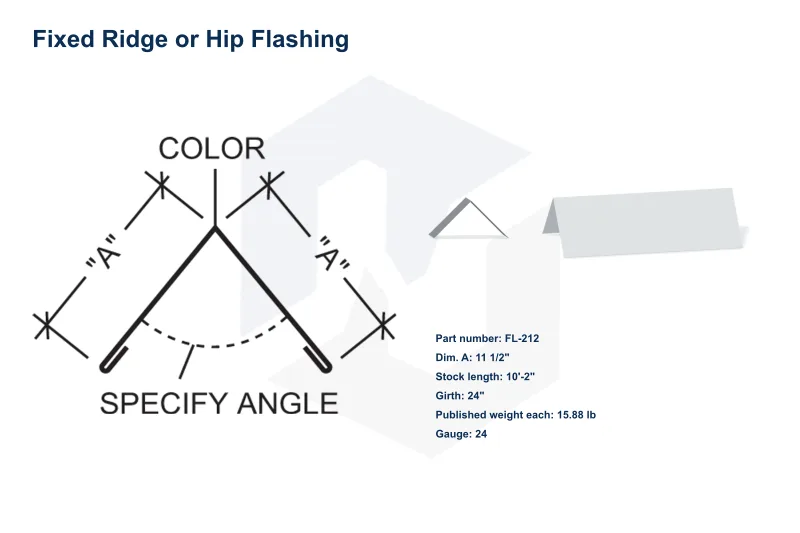

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
