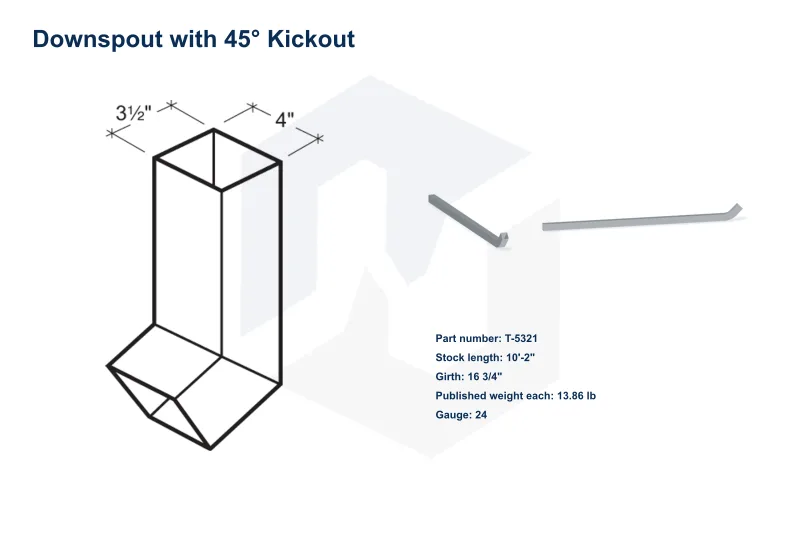

Downspout with 45° Kickout
Downspout with 45° Kickout. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.24.018.T5321

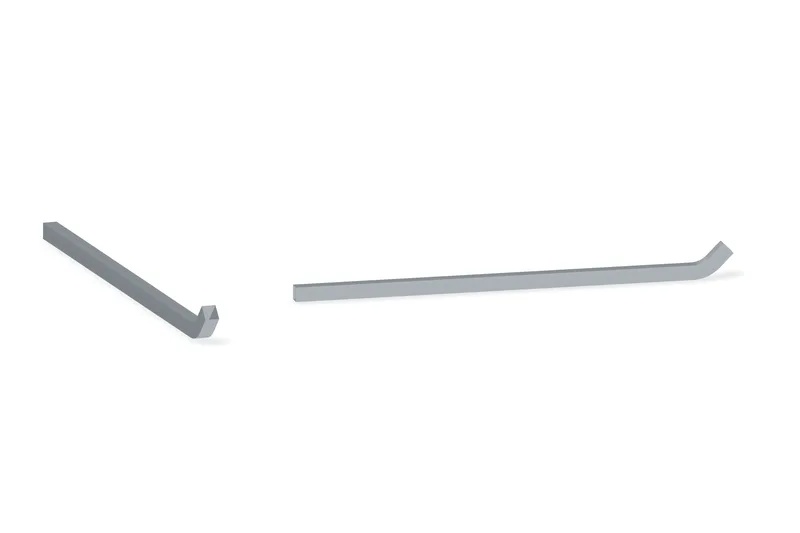

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Supplier-table lengths (reference)
- 10'-2"; 12'-0"; 14'-0"; 16'-0"; 20'-2"
- Published girth
- 16 3/4"; 16 7/8"
Stock-length confirmation required: saved option 2" versus supplier-table label 20'-2". The supplier-table labels are reproduced as published and may be inconsistent or malformed. The figures above are general product references; confirm the intended stock length before ordering. No weight is assigned to the conflicting saved option.
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| T-5321 | 10'-2" | 16 3/4" | 13.86# |
| T-5322 | 12'-0" | 16 3/4" | 16.46# |
| T-5323 | 14'-0" | 16 3/4" | 19.21# |
| T-5325 | 16'-0" | 16 3/4" | 21.95# |
| T-5324 | 20'-2" | 16 7/8" | 27.69# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
