Downspout with 45° Elbow
0 ratings0 recorded purchasers
Downspout with 45° Elbow. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.24.018.FL31A

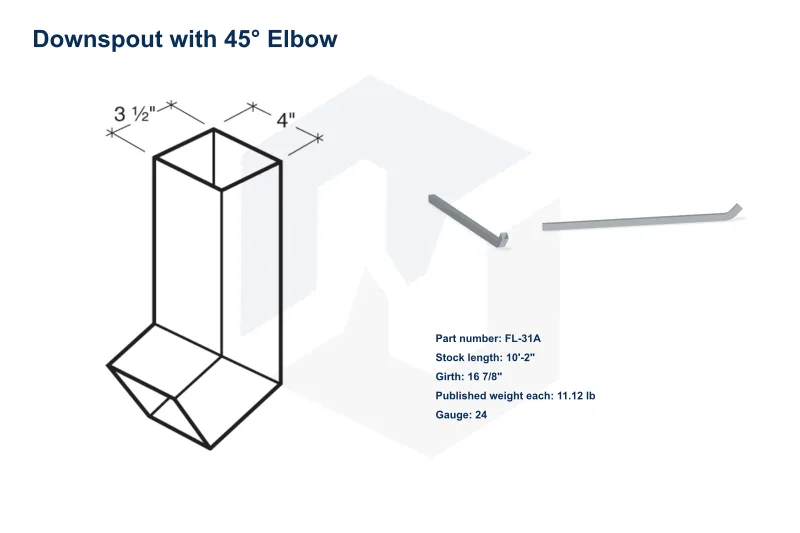

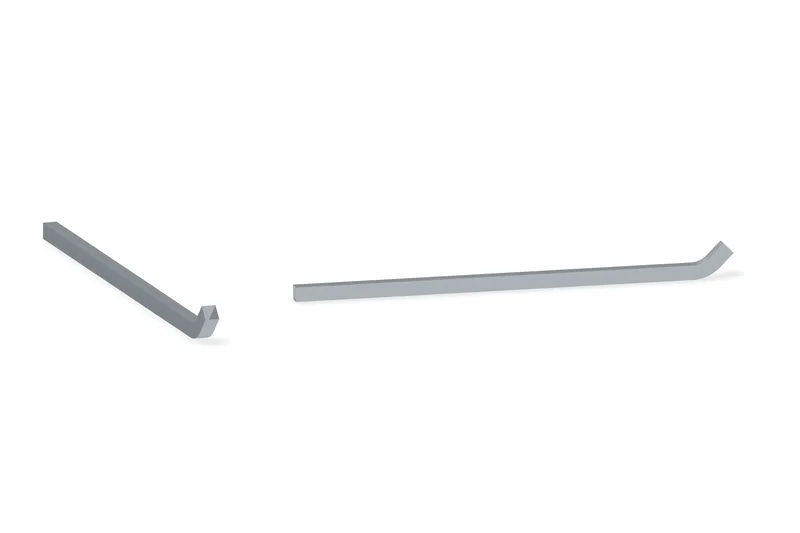

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$48.40/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 12'-0"; 14'-0"; 16'-0"; 20'-2"
- Published girth
- 16 7/8"
- Published weight per piece
- 11.12#; 13.13#; 15.32#; 17.51#; 22.07#
Supplier specifications
| Part # | Length | Girth | Weight Each |
|---|---|---|---|
| FL-31A | 10'-2" | 16 7/8" | 11.12# |
| FL-31D | 12'-0" | 16 7/8" | 13.13# |
| FL-31E | 14'-0" | 16 7/8" | 15.32# |
| FL-31I | 16'-0" | 16 7/8" | 17.51# |
| FL-31G | 20'-2" | 16 7/8" | 22.07# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
