C Closure with Cleat
0 ratings0 recorded purchasers
C Closure with Cleat. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T5041

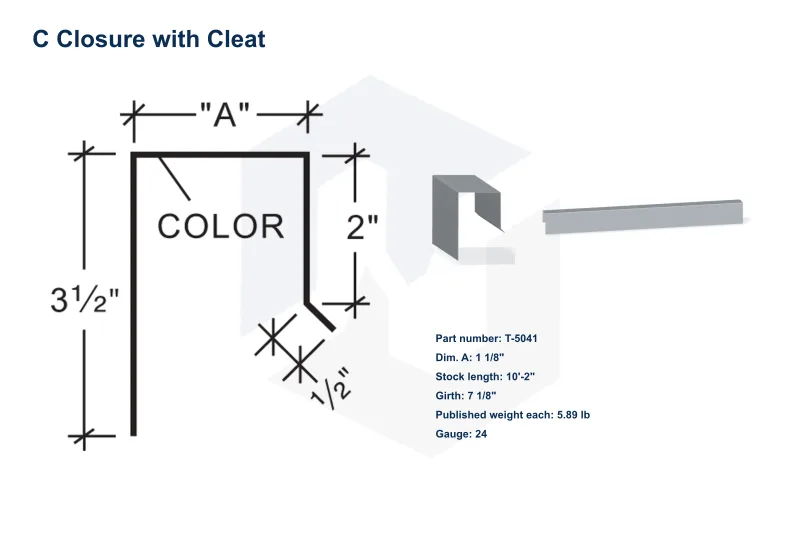

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$21.34/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"
- Published girth
- 7 1/8"; 7 3/4"; 8"; 8 1/8"
- Published dimension A
- 1 1/8"; 1 3/4"; 2"; 2 1/8"
- Published weight per piece
- 5.89#; 6.41#; 6.62#; 6.72#
Supplier specifications
| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-5041 | 1 1/8" | 10'-2" | 7 1/8" | 5.89# |
| T-5042 | 1 3/4" | 10'-2" | 7 3/4" | 6.41# |
| T-5043 | 2" | 10'-2" | 8" | 6.62# |
| T-5044 | 2 1/8" | 10'-2" | 8 1/8" | 6.72# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
