TRIM CATALOG · Standing Seam Roof Trim
C Closure
0 ratings0 recorded purchasers
C Closure. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T5031

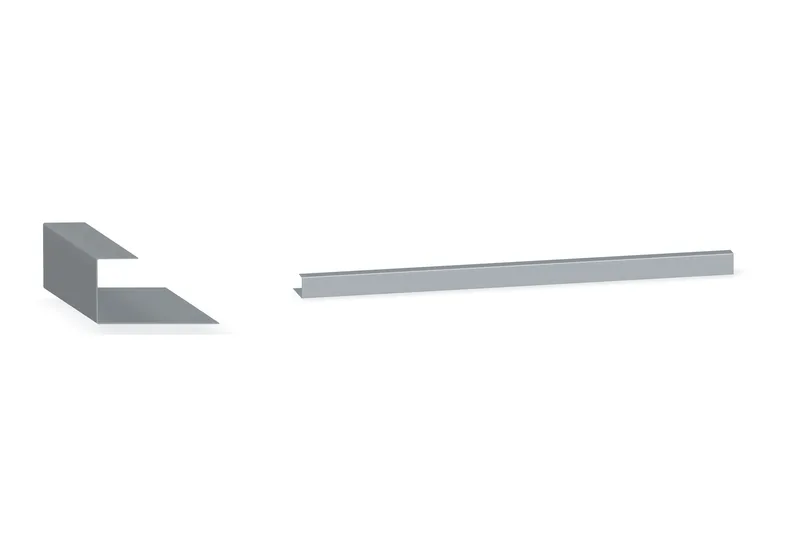

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$15.20/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"
- Published girth
- 5 1/8"; 5 3/4"; 6"; 6 1/8"
- Published dimension A
- 1 1/8"; 1 3/4"; 2"; 2 1/8"
- Published weight per piece
- 4.24#; 4.76#; 4.96#; 5.07#
Supplier specifications

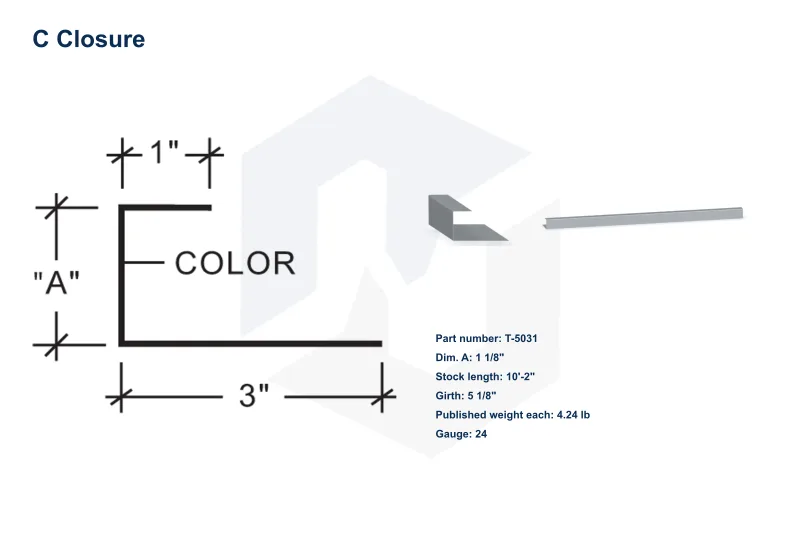

| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-5031 | 1 1/8" | 10'-2" | 5 1/8" | 4.24# |
| T-5032 | 1 3/4" | 10'-2" | 5 3/4" | 4.76# |
| T-5033 | 2" | 10'-2" | 6" | 4.96# |
| T-5034 | 2 1/8" | 10'-2" | 6 1/8" | 5.07# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
