TRIM CATALOG · Exposed Fastener Trim
Box Hang-On Gutter - 7.2 Panel
0 ratings0 recorded purchasers
Box Hang-On Gutter - 7.2 Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.FL74J

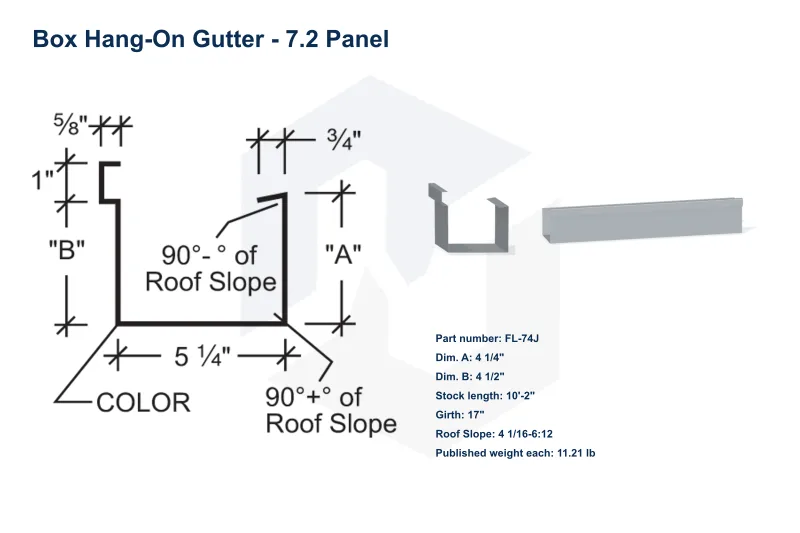

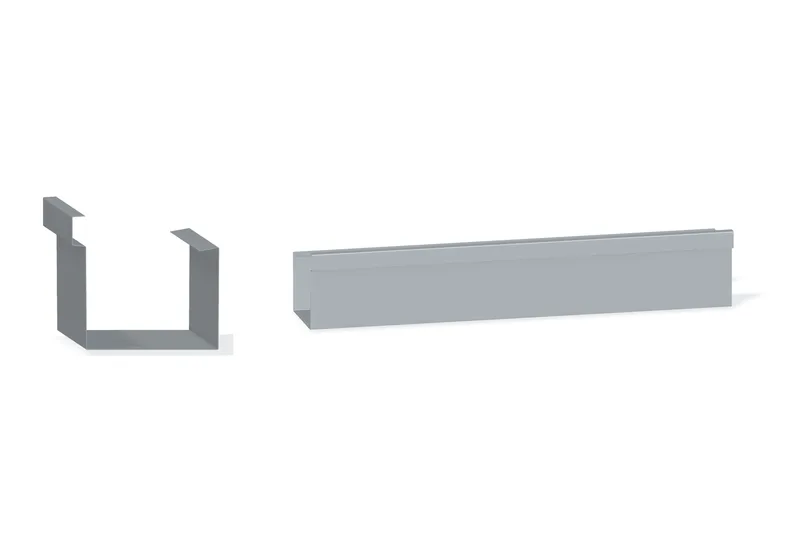

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$49.74/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 16 3/4"; 17"
- Published dimension A
- 4"; 4 1/4"
- Published dimension B
- 4 1/2"
- Published roof slopes
- 1/2-4:12; 4 1/16-6:12
- Published weight per piece
- 11.04#; 21.91#; 11.21#; 22.23#
Supplier specifications
| Part # | Dim. A | Dim. B | Length | Girth | Roof Slope | Weight Each |
|---|---|---|---|---|---|---|
| FL-74D | 4" | 4 1/2" | 10'-2" | 16 3/4" | 1/2-4:12 | 11.04# |
| FL-74E | 4" | 4 1/2" | 20'-2" | 16 3/4" | 1/2-4:12 | 21.91# |
| FL-74J | 4 1/4" | 4 1/2" | 10'-2" | 17" | 4 1/16-6:12 | 11.21# |
| FL-74K | 4 1/4" | 4 1/2" | 20'-2" | 17" | 4 1/16-6:12 | 22.23# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
