Box Eave Gutter - 7.2 Panel
0 ratings0 recorded purchasers
Box Eave Gutter - 7.2 Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.FL505C

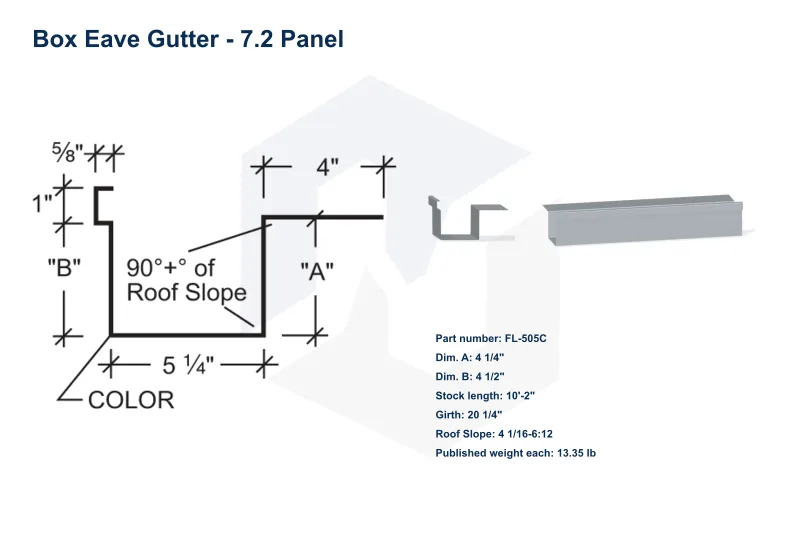

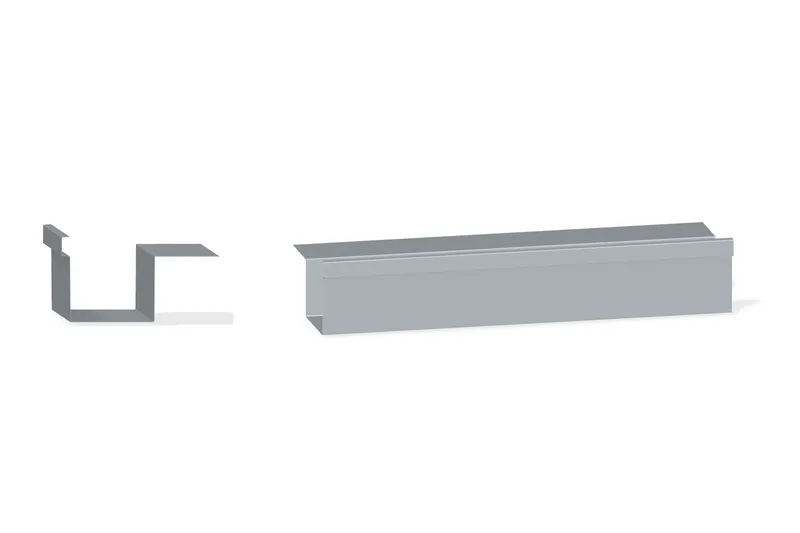

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$58.10/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 20"; 20 1/4"
- Published dimension A
- 4"; 4 1/4"
- Published dimension B
- 4 1/2"
- Published roof slopes
- 1/2-4:12; 4 1/16-6:12
- Published weight per piece
- 13.19#; 26.16#; 13.35#; 26.48#
Supplier specifications
| Part # | Dim. A | Dim. B | Length | Girth | Roof Slope | Weight Each |
|---|---|---|---|---|---|---|
| FL-505 | 4" | 4 1/2" | 10'-2" | 20" | 1/2-4:12 | 13.19# |
| FL-505A | 4" | 4 1/2" | 20'-2" | 20" | 1/2-4:12 | 26.16# |
| FL-505C | 4 1/4" | 4 1/2" | 10'-2" | 20 1/4" | 4 1/16-6:12 | 13.35# |
| FL-505D | 4 1/4" | 4 1/2" | 20'-2" | 20 1/4" | 4 1/16-6:12 | 26.48# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
