Tapered vs. Prismatic Frames in Metal Buildings

Compare changing-depth and constant-depth steel frames through usable clearance, attachment zones, and coordination documents before procurement.

By Nexus Building Components3 min readRecorded content date

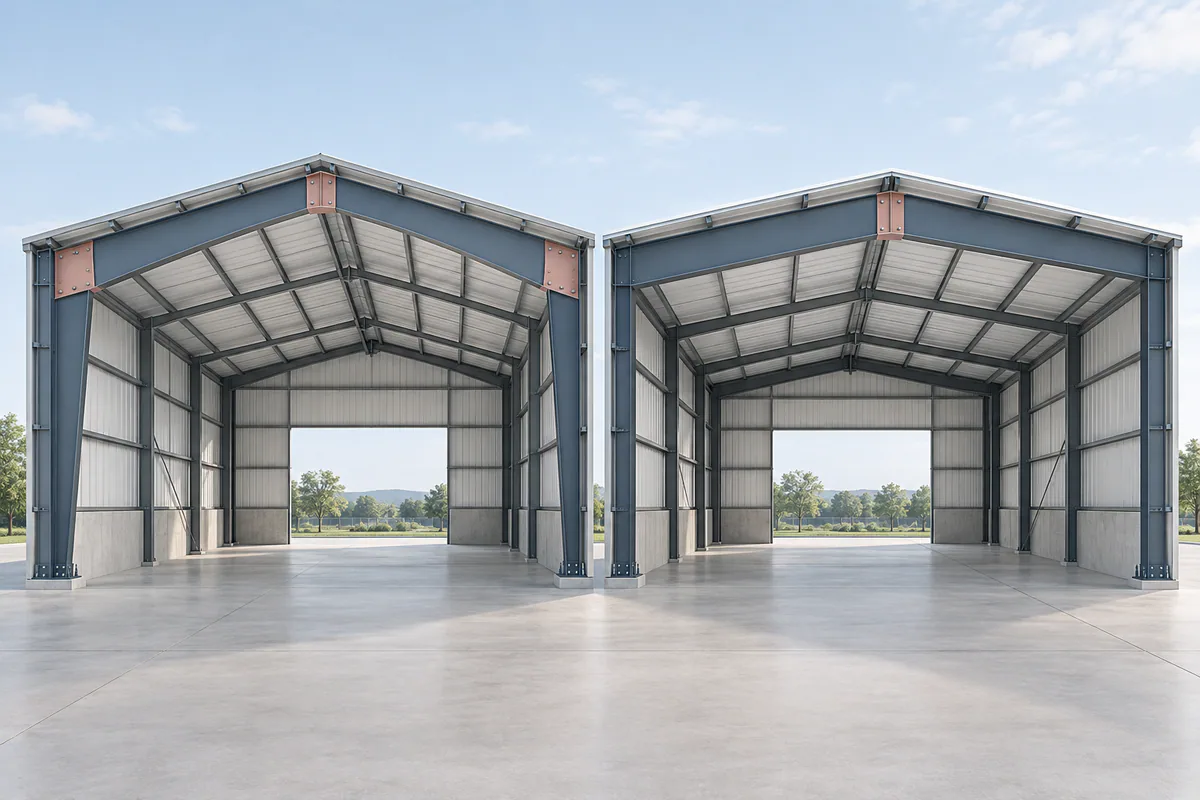

Tapered and constant-depth steel portal frames displayed side by side at the same scale and viewing angle.
AI-generated concept illustration — Frame depth affects usable space and connections; compare approved sections rather than judging frames from exterior elevations.

Understand the project condition

A tapered frame changes member depth along its length, while a prismatic member maintains a constant nominal depth. Metal building frames may combine different member forms. Neither label establishes the right solution without the loads, geometry, and serviceability criteria used by the manufacturer and project designer.

For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.

References: Metal building system design resources · AISC 303: Code of Standard Practice

Compare decisions before fabrication release

Plot the actual underside profile against operational needs. Haunches near the column-to-rafter junction can affect high racks, door equipment, duct routing, and elevated platforms even when the advertised eave height is unchanged. Compare the same equipment envelopes and future attachment requirements on both proposed systems.

Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.

References: Metal building system design resources · AISC 303: Code of Standard Practice

Coordinate the trade interface

An architectural section that shows only the roof slope can conceal conflicts with the steel below. Overlay the manufacturer frame profile with mechanical clearances and owner equipment. Request attachment details for the actual member configuration; do not assume a constant-depth beam accessory suits a tapered built-up member.

References: Metal building system design resources · AISC 303: Code of Standard Practice

Prepare a reviewable record

This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.

Project coordination matrix
ConditionRequired recordDecision supported
Member profileDimensioned manufacturer frame sectionConfirm usable interior envelope
Attachment zonesApproved equipment support detailAvoid incompatible field attachments
Alternative frameMatched load and geometry basisMake a meaningful system comparison

References: Metal building system design resources · AISC 303: Code of Standard Practice

Close open items and transfer the information

Keep the accepted frame section in the coordination set used by downstream trades. Record the equipment envelopes checked against it and unresolved attachment questions before releasing those trades. A substitution review should include usable space and attachments as well as the structural calculation scope. At completion, identify any changed obstruction that affects the owner's operating envelope; an approved exterior elevation cannot demonstrate the final clearance beneath a different haunch or installed service.

Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.

  1. Place the largest equipment envelopes on the proposed frame section.
  2. Flag conflicts at haunches, flange transitions, and connection plates.
  3. Obtain the coordinated section before finalizing rack or duct layouts.

References: Metal building system design resources · AISC 303: Code of Standard Practice

Common questions

Does a tapered frame always give more floor area?

No. Floor area and usable height depend on the complete layout, supports, and frame profile.

Can equipment clamps be selected from member depth alone?

No. The flange geometry, connection location, permitted attachment, and manufacturer's instructions also matter.
