Suspended Ceilings and Steel Building Frame Movement

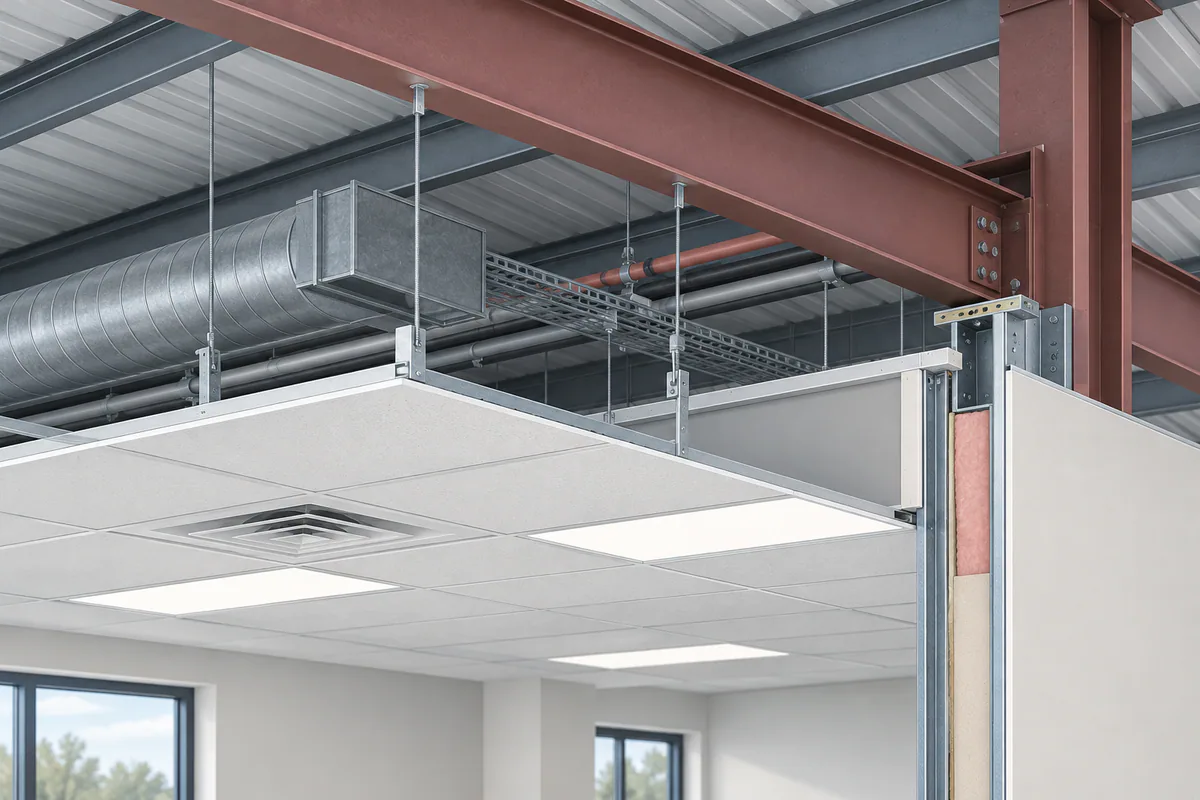

Coordinate ceiling support, above-ceiling services, wall junctions, and building movement before finishing the interior of a metal building.
Understand the project condition
A ceiling changes the interior appearance and introduces supports, access needs, and interfaces with partitions and services. A flexible building frame may move differently from interior construction. Treating the ceiling as a purely decorative layer can leave these junctions and added loads unreviewed.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Compare decisions before fabrication release
Confirm the ceiling system, its design inputs, and the required support and movement arrangement with the project team. List lighting, access panels, ducts, and other components that need their own support. Avoid assuming every above-ceiling item belongs to the ceiling supplier or can attach to nearby secondary framing.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Coordinate the trade interface
Coordinate ceiling elevations against haunches, door equipment, and maintenance access. Partition heads and service connections must accommodate the specified movement condition. The responsible designers should determine attachment requirements and any applicable bracing; this guide does not supply ceiling suspension layouts or structural capacities.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Ceiling system | System submittal and support criteria | Identify actual added scope |
| Independent services | Support register and locations | Avoid loading unintended components |
| Movement junction | Partition and perimeter details | Coordinate frame/interior behavior |
References: Metal building system design resources · Common Industry Practices, 2024 edition
Close open items and transfer the information
Keep access locations, support responsibilities, and accepted movement details in the interior handover file. Identify final independent supports for lights and services where required. Later installations should follow those records rather than hang from an available ceiling component. Ceiling replacement or new partitions should also preserve access and reviewed perimeter conditions; a visually similar system can have different support needs that must be reconciled with the existing building and above-ceiling equipment.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- List ceiling and above-ceiling supports separately.
- Overlay ceiling elevations with steel and door profiles.
- Obtain reviewed movement details at partitions and services.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Metal building system design resources · Common Industry Practices, 2024 edition
Common questions
Can the ceiling support mechanical services automatically?
No. Identify each service's designed support arrangement and the supplier's limitations.
Can partition heads be fixed tightly to moving roof framing?
Use the project-specific movement detail reviewed by the responsible designers.
