Connections & installation
Stripped Screw Holes in Steel: What to Document Next
Recognize and document a questionable screw hole in steel, separate symptoms from causes, and prepare the information needed for an approved repair.

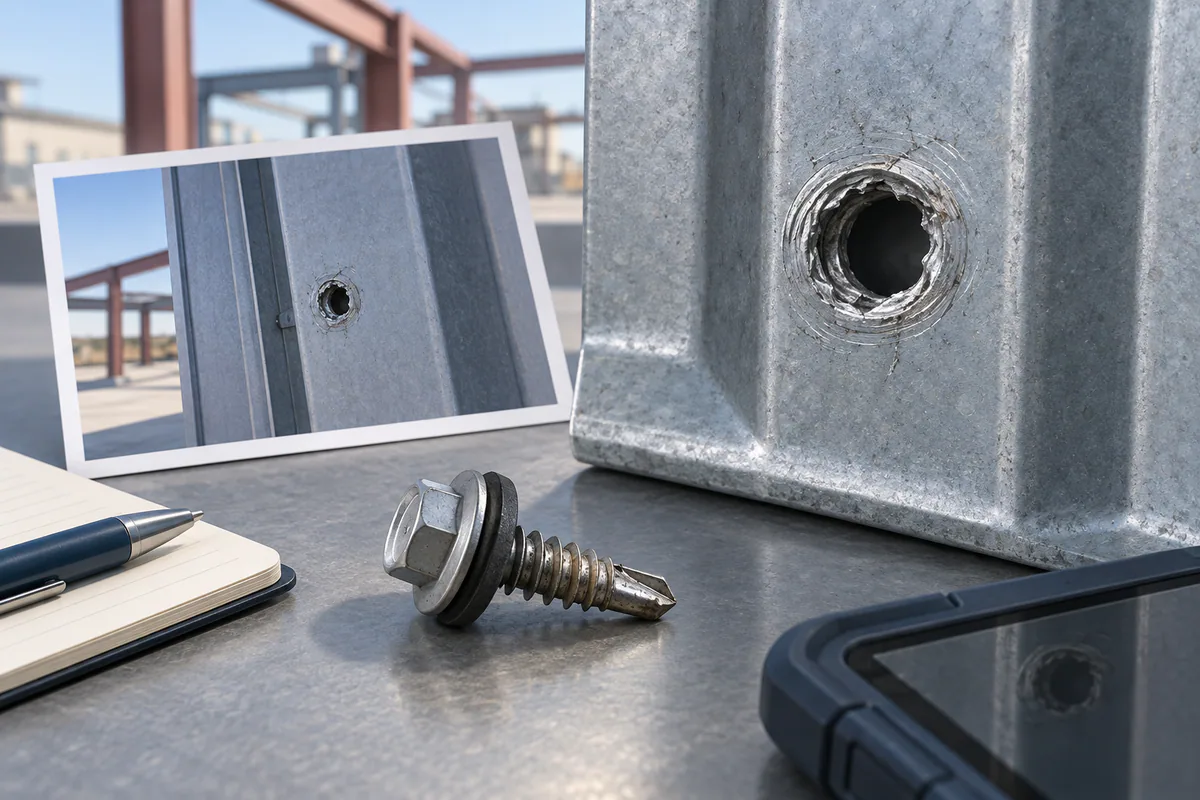

Describe what happened without guessing the cause
A screw that rotates without seating, a damaged recess, and a broken drill point are different observations. Record what the installer saw and which part of the product appears affected. Calling every problem a stripped hole can send the reviewer toward the wrong question.
Identify whether the condition occurred during initial installation, after removal and reinsertion, or during a later inspection. Include the connection location and exact screw designation. If the supporting steel is not visible, state that limitation rather than assuming what happened behind the attached piece.
References: How self-drilling screws work
Keep the repair decision with the connection review
A questionable fastening location can affect the intended connection, and a replacement approach must account for the assembly rather than just the damaged item. Triangle Fastener's technical data expressly places fastener selection and changes with engineering review.
Do not choose a larger screw, relocate the hole, or add extra screws on the assumption that more material means a better repair. Those changes may alter the connection pattern or interact with existing holes. Send the actual condition to the responsible professional and obtain a documented disposition before treating the work as accepted.
References: BLAZER screw properties and connection data (PDF)
Gather information that can answer the reviewer's questions
A compact record can reduce repeated site visits and avoid a repair instruction based on an incomplete description.
| Record | Include | Why it helps |
|---|---|---|
| Location and detail | Grid, member, connection reference, revision | Establishes the intended assembly |
| Fastener identity | Part number, point, length, head, coating | Separates product selection from installation symptoms |
| Material condition | Known steel thicknesses, existing holes, visible damage | Describes the actual receiving material |
| Sequence | Initial drive, reinstallation, or later discovery | Provides context without declaring a cause |
| Evidence | Clear photos and retained labels | Supports a reviewable disposition |
Distinguish isolated damage from a repeated pattern
One affected location and repeated difficulties across an area deserve different investigation scopes. Record the extent observed, including locations checked without finding the same symptom. This helps the reviewer decide whether the issue is local or whether a broader product, tooling, or material question needs attention.
Do not infer acceptance from the absence of visible damage elsewhere. Instead, identify how the additional locations were checked and who will determine the required follow-up. Keep material from different deliveries identifiable when investigating a repeated issue so that the observation remains connected to its evidence.
Example: a damaged hole beside a panel lap
Suppose an installer reports a spinning screw near a panel lap. Record whether that screw is a lap fastener or an attachment to the structural support; those are different conditions. Photograph the location before obscuring it and identify the panel system and screw product.
The accepted response may need to address both attachment and weather sealing. Keep those two requirements visible in the request. When work is completed, record the authorized method and any required inspection rather than closing the issue with a note that a larger screw was used.
- Identify the fastening function at that exact location.
- Record observed damage and the known installation sequence.
- Obtain a product- and connection-specific disposition.
- Confirm closeout before concealing or accepting the work.
Preserve the lesson for the next material order
Once the cause and disposition are established, update the relevant material or installation record. If the problem came from an incorrect delivered item, make the distinguishing product attribute visible on future purchase lines. If it came from a revised assembly, link the corrected selection to the new drawing. A brief, factual record is more useful than a general instruction to be careful, and it avoids repeating an unresolved assumption on the next phase.
Common questions
Can I reuse the same hole with another screw?
Only when the approved repair and exact product documentation permit that condition. Do not assume that a fresh screw recreates the original hole's engagement.
Can sealant repair stripped threads?
Sealant is not evidence that the specified structural attachment has been restored. Attachment and weather-sealing requirements need their own approved resolution.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- How self-drilling screws work Simpson Strong-Tie
- BLAZER screw properties and connection data (PDF) Triangle Fastener Corporation
