Steel Building Lean-To Attachment Planning
Define whether a lean-to is independently supported or connected to a steel building, with clear drainage, clearance, and foundation records.
Understand the project condition

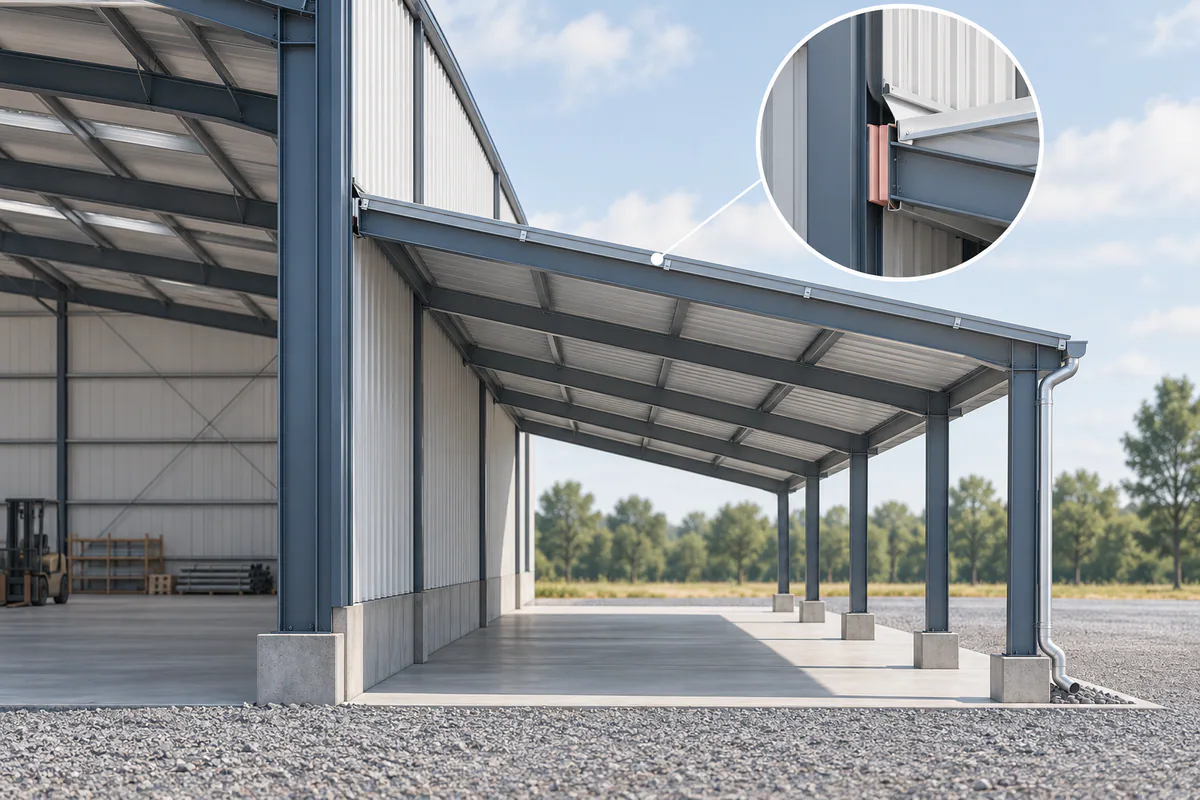

A lean-to typically uses a roof sloping away from a taller building face. It may serve covered storage, a loading area, or an enclosed addition. The support arrangement and open or enclosed condition can differ substantially between proposals that look similar in a rendering.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Compare decisions before fabrication release
State the current and intended future enclosure condition, operating clearance, and equipment use. Ask how the high side is supported and whether loads enter the original frame. Evaluate roof-water discharge and nearby foundation interaction. Enclosing an initially open lean-to later is a design change, not merely an extra panel purchase.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Coordinate the trade interface
Resolve attachment elevations, movement accommodation, wall flashing, and drainage with the responsible designers. Existing girts are not automatically attachment beams. Coordinate vehicles and loading equipment with low-side columns, protective systems, and the usable underside roof profile before selecting dimensions.
References: Metal building system design resources · Common Industry Practices, 2024 edition · Assessment and repair of structural steel in existing buildings
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| High-side support | Reviewed connection or independent frame detail | Define forces entering existing structure |
| Low-side supports | Column and foundation layout | Check traffic and site interfaces |
| Enclosure condition | Open/current/future use statement | Avoid unreviewed later enclosure changes |
References: Metal building system design resources · Common Industry Practices, 2024 edition · Assessment and repair of structural steel in existing buildings
Close open items and transfer the information
Record the accepted lean-to design assumptions, supports, and enclosure condition in the facility file. Retain final attachment, foundation, and roof-junction records together so future reviewers can follow the actual load path. Enclosure, storage, or equipment changes should be checked against those assumptions. If the original building is altered, also review the lean-to interface; its dependence on that structure may remain important even when the work appears confined to the main building.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Describe the lean-to's operating and enclosure conditions.
- Obtain reviewed support and movement details before fabrication.
- Coordinate low-side clearances and discharge paths with the owner.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Metal building system design resources · Common Industry Practices, 2024 edition · Assessment and repair of structural steel in existing buildings
Common questions
Can a lean-to attach directly to wall girts?
Only if a responsible designer approves the specific support condition; wall girts are not assumed to carry an addition.
Does adding panels later leave the design unchanged?
No. Enclosure can change design inputs and requires project-specific review.
