Standing Seam Roof Panels: Seaming and Clip Planning
Prepare a standing seam roof package with matched panels, clips, seaming equipment, support details, and installation review records before ordering.

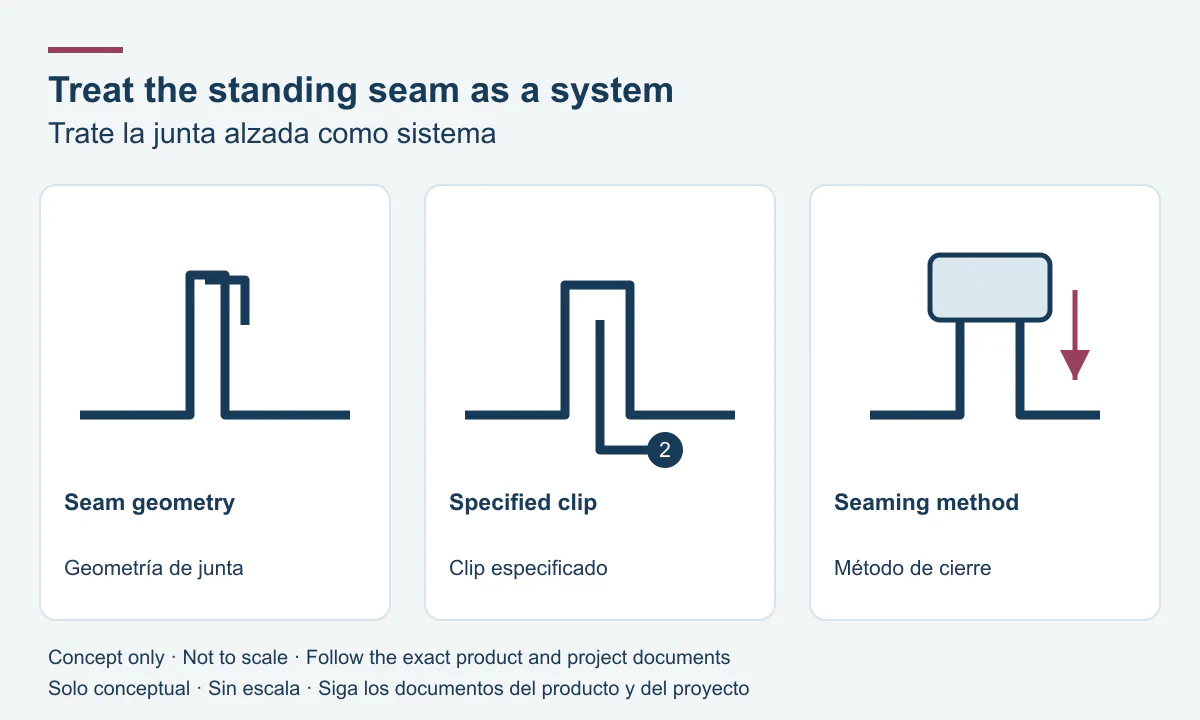

Identify the seam method for the selected product
Standing seam panels do not all close in the same way. MBCI describes BattenLok HS as mechanically field seamed, while its Ultra-Dek manual describes a snap-joint assembly. Start with the exact system name and current manual, rather than assuming that every raised seam needs the same machine or engagement method.
The Nexus catalog also includes Double-Lok, SuperLok, and LokSeam. Obtain each selected system's installation instructions before allocating labor or equipment. Use this guide to prepare the work package; use the product instructions and approved project drawings for the actual installation process.
References: BattenLok HS mechanical seaming and clip options · Ultra-Dek technical and installation manual (PDF) · Product-specific installation and seamer manuals
Match the clip schedule to the assembly
BattenLok HS has several clip options, including different heights and fixed or floating arrangements. That choice belongs to the assembly review. A clip that resembles another can still have the wrong geometry, clearance, movement function, or fastening requirement.
Ask the designer to connect each roof zone with its approved attachment detail. Keep the clip fasteners, support thickness, and insulation clearance on the same schedule. Do not substitute clip height to accommodate a field obstruction without a reviewed detail.
| Item | Information to match | Open question |
|---|---|---|
| Panel | System, gauge, width, and finish | Is this the approved configuration? |
| Clip | Part, height, and movement function | Which roof zones use it? |
| Fastener | Specified attachment and support | Does the support match the detail? |
| Seam | Engagement method and equipment | Who confirms the first completed seam? |
| Edges | Eave, ridge, rake, and penetrations | Are terminations coordinated? |
References: BattenLok HS mechanical seaming and clip options
Prepare for installation before the delivery arrives
Make a job-specific readiness checklist with the installer. Identify who supplies compatible seaming tools, who checks their setup, and how the crew will obtain the correct manual. Include safe access, material staging, weather protection, and the sequence for completing the roof edges.
For a mechanically seamed system, plan the equipment and first-seam review before production work. For a snap-joint system, plan how engagement will be confirmed. A partially connected assembly should not be treated as a completed weather-resistant roof solely because the panels cover the building.
- Confirm the panel and seamer instructions describe the same system.
- Reconcile the support survey and approved attachment drawings.
- Identify hold points for the first panel, first seam, and perimeter details.
- Assign responsibility for protecting unfinished work and documenting exceptions.
Retain a reviewable completion record
Keep the approved panel and clip schedule, drawing revision, equipment confirmation, and first-area review with the project record. Label photographs by roof area and date. Record unresolved seam or attachment concerns for the responsible reviewer instead of covering them with the next trade's work.
When asking about a replacement clip or additional panels, provide the original product identification and the applicable roof detail. The same color or nominal panel width does not establish compatibility with an existing seam.
Revisit the assembly when a panel changes
If a proposed alternative changes the panel system, pause the matching accessory release. Compare the new seam, clips, edge details, and documented performance requirements with the approved package. Identify every retained component explicitly. This keeps a purchasing change from silently becoming a mixture of roof systems that the project team has never reviewed together.
Common questions
Does every standing seam panel need a mechanical seamer?
No. The required joint method is product specific. Read the exact panel manual and project requirements before arranging tools or labor.
Can a floating clip be exchanged for a fixed clip?
Do not make that substitution from appearance alone. It can change the assembly's intended movement and attachment behavior; obtain project-specific review.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- BattenLok HS mechanical seaming and clip options MBCI
- Ultra-Dek technical and installation manual (PDF) MBCI
- Product-specific installation and seamer manuals MBCI
