Shop Primer vs. Finish Coating on Red Iron Frames
Distinguish shop primer from the specified finish system using exposure, surface preparation, compatibility, appearance, and contract scope.
Understand the project condition
Red iron proposals can describe a shop primer without defining a complete finish system. Interior dry service, exterior exposure, and corrosive processes present different project conditions. The coating decision should therefore begin with environment and specified performance, not with the familiar red appearance.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Technical advisory about painting interior steel · AISC 303: Code of Standard Practice
Compare decisions before fabrication release
Ask for the exact coating product and intended function. Reconcile surface preparation, compatible overcoats, field exposure, and appearance requirements with the responsible specification team. If steel will remain visible, document the acceptance expectations separately from corrosion protection. Do not infer a universal coating life or maintenance interval.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Technical advisory about painting interior steel · AISC 303: Code of Standard Practice
Coordinate the trade interface
Fabricator, erector, coating installer, and owner may own different stages. Identify which surfaces receive factory treatment, which connections need special coordination, and who performs site cleaning and repairs. Where fire-protection or other materials contact steel, obtain compatibility requirements before applying an additional coat.
References: Technical advisory about painting interior steel · AISC 303: Code of Standard Practice
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|

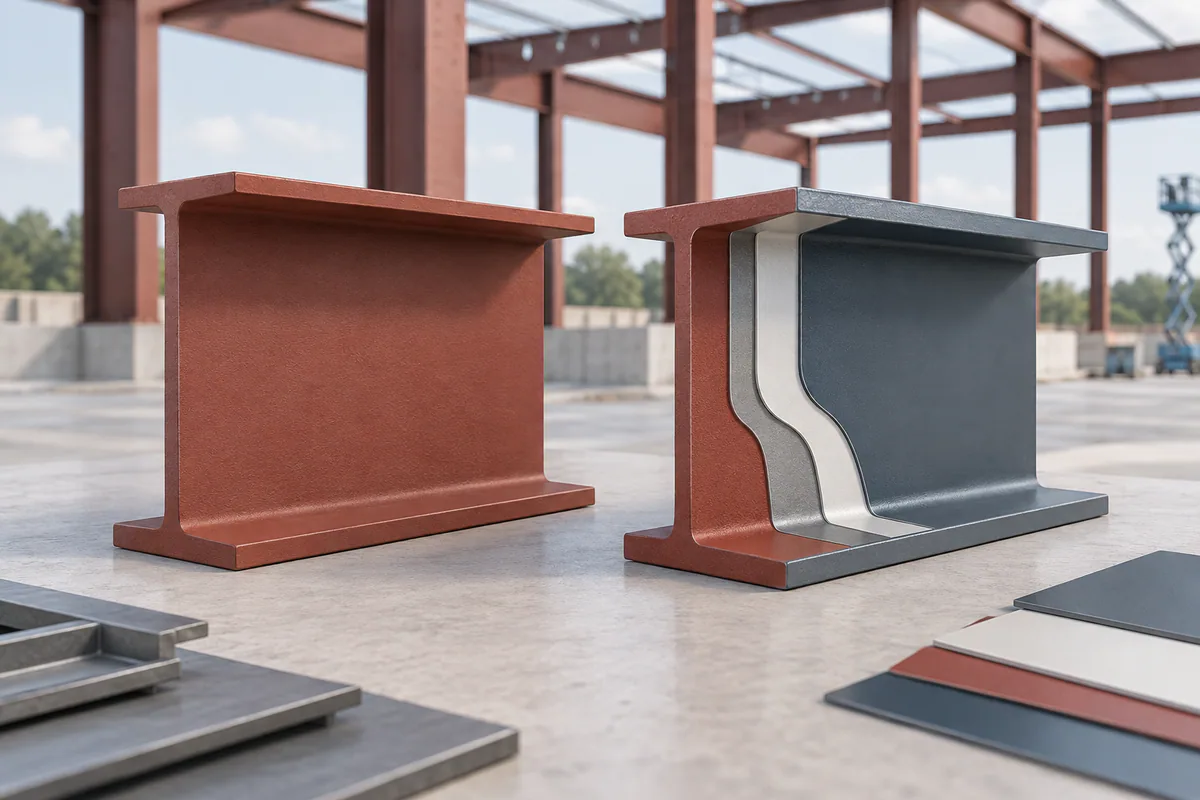

| Shop primer | Actual product and purpose | Understand the supplied treatment |
| Finish system | Exposure and compatible coating specification | Define required completed protection |
| Visible steel | Appearance criteria and review sample | Separate aesthetics from structural acceptance |
References: Technical advisory about painting interior steel · AISC 303: Code of Standard Practice
Close open items and transfer the information
The closeout package should identify products actually applied and the locations covered by each stage. Include required inspection records and accepted appearance exceptions where relevant. Document field repairs so maintenance can use compatible materials rather than choosing by color. If service conditions change to wet or chemically aggressive use, seek a new coating review; the original interior-primer description does not establish protection for the changed environment.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Describe the steel's intended environment and visibility.
- Confirm the complete coating system and preparation requirements.
- Assign factory, field, and maintenance responsibilities in writing.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Technical advisory about painting interior steel · AISC 303: Code of Standard Practice
Common questions
Does red primer equal an exterior finish?
No. Verify the coating manufacturer's stated use and the project finish specification.
Can any paint be applied over the supplied primer?
No. Confirm preparation and compatibility using current product instructions and the specified system.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Technical advisory about painting interior steel American Institute of Steel Construction
- AISC 303: Code of Standard Practice American Institute of Steel Construction
