PVDF vs. SMP Coatings for Metal Roof and Wall Panels
Compare PVDF and SMP metal panel finishes by appearance, weathering priorities, substrate, color selection, touch-up expectations, and specification details.
Know what the resin names describe
PVDF means polyvinylidene fluoride. SMP means silicone-modified polyester. These are resin families used in factory-applied metal coatings. Sherwin-Williams' comparison describes differences in weathering, color retention, hardness, and other properties across its coating systems.
PVDF systems are often considered when long-term color and chalk resistance are priorities. SMP systems offer their own balance of appearance and physical properties. The appropriate comparison is between named products with relevant data, not two acronyms treated as universal performance guarantees. A manufacturer's specific formulation and coating build matter.
References: Metal coating resin and performance comparison
Compare priorities instead of choosing by acronym
Ask the owner to rank visible appearance, exposure, maintenance expectations, and budget before narrowing the coating selection. Then request data for the actual products offered.
| Priority | Question to ask | Evidence to retain |
|---|---|---|
| Color retention | How is the named finish evaluated for fade? | Technical data and applicable terms |
| Surface appearance | What sheen, texture, and visual variation are expected? | Approved physical samples |
| Handling resistance | What precautions apply during fabrication and installation? | Manufacturer handling instructions |
| Environment | Is the system suitable for the identified exposure? | Product selection confirmation |
| Future repair | What touch-up or replacement process is recommended? | Maintenance and repair guidance |
Keep paint separate from the underlying steel coating
A PVDF or SMP label does not identify the steel grade, thickness, or metallic coating beneath the paint. Record those attributes separately. This makes a substitution review clearer when two panels have the same color name but different underlying material descriptions.
Likewise, do not infer energy performance from resin family alone. If solar properties are part of the project requirements, request the relevant values for the exact color and finish offered. Keep those records connected to the accepted sample so an aesthetic change does not silently change another specified property.

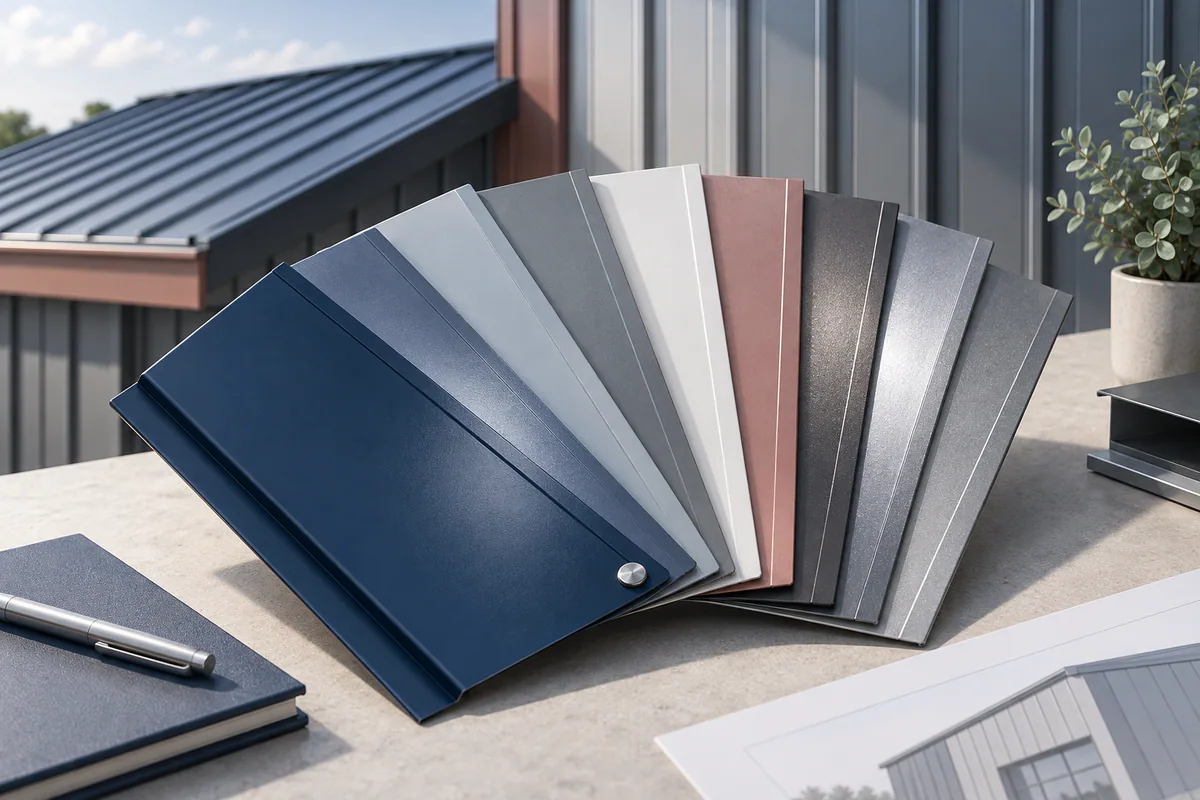

Use samples to settle appearance questions
An online swatch is useful for narrowing choices, but final selection should use the manufacturer's physical finish samples and the project's approval process. Review adjacent materials together, especially when panels, trim, doors, and accessories come from different sources.
Imagine a dark blue facade with matching roof-edge trim. A shared color description does not necessarily establish an identical sheen or finish system. Record the accepted manufacturer, color code, coating system, texture, and sample reference for each component. Where appearance is critical, ask whether a larger sample or mockup is appropriate before releasing the full order.
Set realistic touch-up expectations
Factory-applied finishes and field touch-up paint are different processes. MBCI advises assessing the damage before touching up and notes that touch-up material can weather differently from the original baked finish. A broad repaint of a small blemish can therefore create a more visible area.
For project planning, identify who evaluates damage and what repair guidance applies to the selected finish. Keep handling-related observations and accepted repair decisions with the delivery record. Do not promise an invisible touch-up or use an unrelated spray paint solely because its color appears close.
References: Assessing and applying panel touch-up paint
Write a finish schedule with enough detail
List the panel or trim location, substrate, named paint system, manufacturer color code, sheen or texture where specified, exposed face, and accepted sample reference. Add any project-specific exposure review and the exact warranty document if one forms part of the purchase.
Read warranty terms as a separate contract item rather than translating a stated term into a guaranteed service life. At closeout, retain cleaning and touch-up guidance with the finish schedule. This gives the owner a better starting point for maintenance and future additions than a folder containing color names alone.
Common questions
Does the same color name mean two panels use the same coating?
No. Confirm the manufacturer color code, resin system, finish characteristics, and substrate, then approve physical samples through the project process.
Can field touch-up perfectly duplicate a factory finish?
Do not assume so. Follow the panel manufacturer's damage-assessment and repair guidance; field-applied material may look or weather differently.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Metal coating resin and performance comparison Sherwin-Williams
- Assessing and applying panel touch-up paint MBCI
