Planning & documentation
Farm Machinery Metal Building Design Brief
Document machinery dimensions, seasonal access, maintenance areas, enclosure condition, and future fleet needs for an agricultural steel building.
Understand the project condition

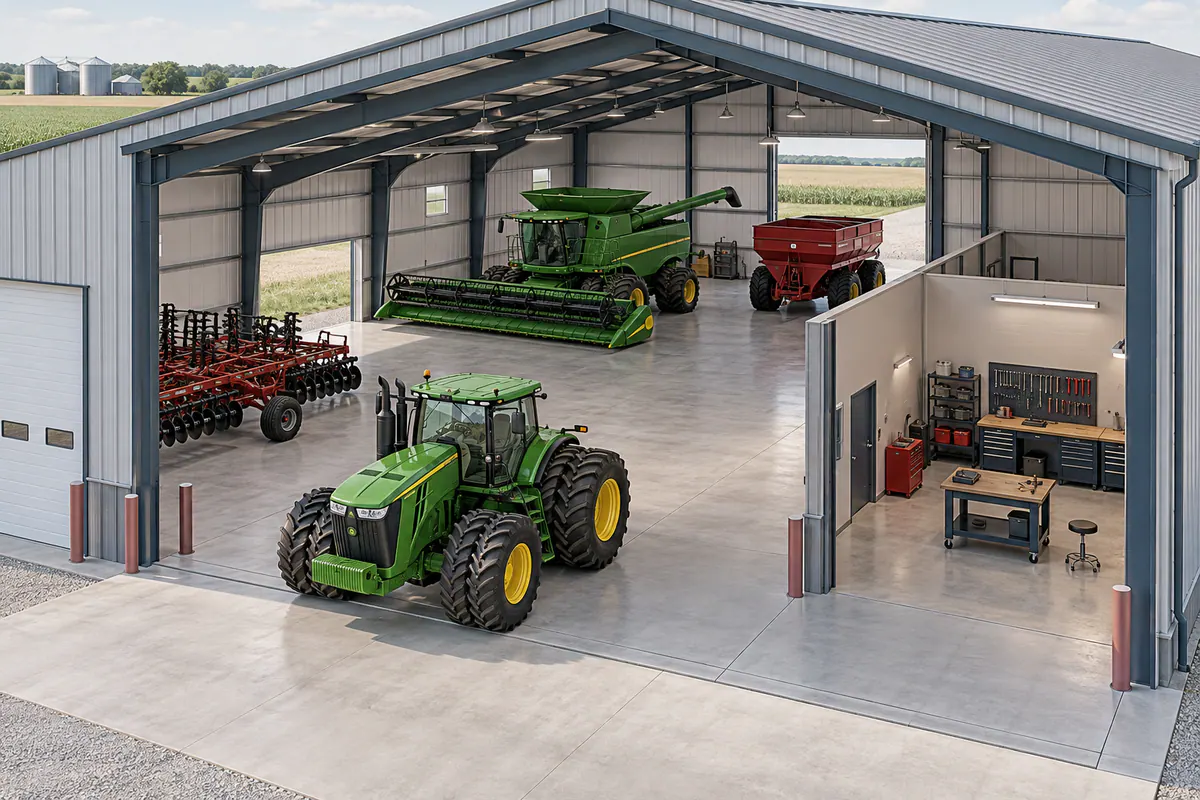

A farm machinery building can hold implements that need different door, turning, and maintenance space than ordinary vehicles. Seasonal access can make blocked equipment particularly inconvenient. Agricultural use describes a broad activity; it does not define one universal building or exemption from project review.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Agricultural metal building applications · Metal building system design resources
Compare decisions before fabrication release
List the actual machines with operating, transport, and service dimensions. Show how equipment enters, turns, parks, and leaves when other units remain stored. Define open or enclosed conditions and any workshop use. Future fleet allowances should state known dimensions and uncertainty rather than promise unrestricted growth.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Agricultural metal building applications · Metal building system design resources
Coordinate the trade interface
Coordinate door hardware, frame haunches, columns, floor conditions, and service utilities with the equipment plan. Separate machinery maintenance equipment from the storage shell's supply scope. Discuss drainage, indoor moisture, and local project requirements with the relevant professionals before steel dimensions are fixed.
References: Agricultural metal building applications · Metal building system design resources · Common Industry Practices, 2024 edition
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Machinery fleet | Actual transport and operating dimensions | Define access and parked-space needs |
| Service area | Maintenance envelope and equipment brief | Coordinate support and utilities |
| Future fleet | Explicit dimension/use assumptions | Preserve limits of expansion planning |
References: Agricultural metal building applications · Metal building system design resources · Common Industry Practices, 2024 edition
Close open items and transfer the information
Retain the accepted fleet plan and clearances with the building records. Check the completed door and overhead conditions before moving the largest equipment into routine service. When machinery changes, compare folded, transport, working, and maintenance dimensions against the documented envelope. Future enclosure or workshop additions should also revisit the building assumptions; the original agricultural storage description does not establish suitability for every subsequent use or piece of equipment.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Measure current machinery and document the operating route.
- Show doors and frame profiles against the equipment envelope.
- Assign workshop, floor, and utility scopes separately.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Agricultural metal building applications · Metal building system design resources · Common Industry Practices, 2024 edition
Common questions
Is parked width enough to choose door size?
No. Include transport configuration, turning, hardware clearance, and the actual entry route.
Does agricultural use define all permit requirements?
No. The project team must verify applicable requirements for the actual site and use.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Agricultural metal building applications Metal Building Manufacturers Association
- Metal building system design resources Metal Building Manufacturers Association
- Common Industry Practices, 2024 edition Metal Building Manufacturers Association
