Clear Span vs. Multi-Span Steel Building Layouts
Compare column-free and interior-supported steel buildings using operating clearances, foundation interfaces, and future layout flexibility.
Understand the project condition

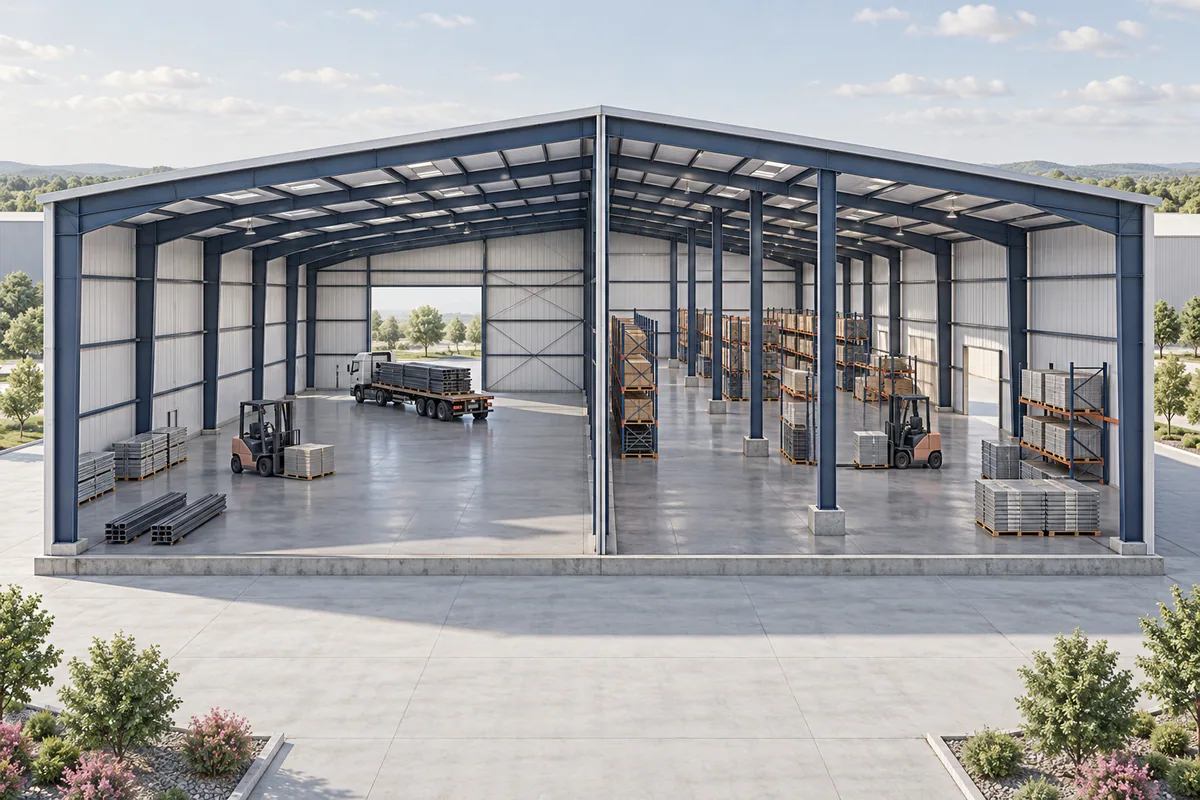

A clear-span building leaves the main interior span without intermediate frame supports. A multi-span arrangement introduces interior supports. Both can serve US commercial projects, but the practical choice depends on traffic, storage, equipment, and the supporting foundation rather than a universal preference for either system.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Compare decisions before fabrication release
Draw aisles and work zones first, including turning movements and maintenance access. An interior column may fit a fixed rack layout but obstruct a future production line. Conversely, eliminating supports can change the engineered frame and foundation demands. Ask for alternatives based on the same occupancy and loading inputs.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Coordinate the trade interface
Interior support locations connect architectural planning to footings, slab joints, utilities, and equipment pads. Coordinate below-slab services before their positions become fixed. Maintain one dimensioned column grid shared by the manufacturer and foundation engineer; a floor-plan symbol without grid coordinates is insufficient.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Clear-span option | Frame profile and operating envelope | Check equipment and overhead clearance |
| Multi-span option | Interior column and footing locations | Check circulation and slab interfaces |
| Future layout | Owner's reserved operating zones | Evaluate flexibility without assuming capacity |
References: Metal building system design resources · Common Industry Practices, 2024 edition
Close open items and transfer the information
Include the selected support arrangement in the owner's planning records, together with the rack, traffic, or equipment layout used for its review. Identify reserved areas and foundation constraints that limit later changes. Future layout changes should start with this grid and the structural documents, not an assumption that interior columns can be moved. A revised operations plan should demonstrate continued access and compatibility before new equipment occupies previously clear zones.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Overlay both support arrangements on the same operations plan.
- Check columns against aisles, exits, racks, and utility corridors.
- Document the chosen grid and the limits of future change.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Metal building system design resources · Common Industry Practices, 2024 edition
Common questions
Is clear span always less expensive overall?
No. Compare complete project scopes, foundation implications, and operational requirements without assuming a universal cost outcome.
Can a multi-span column be removed later?
Only through a project-specific engineered modification that also evaluates foundations and connected systems.
