Reviewing CFS Framing Exposure in Wet Areas
Review CFS framing in wet rooms and other moisture-prone areas with coating, waterproofing, substrate, drainage, and access documentation.
The condition to resolve

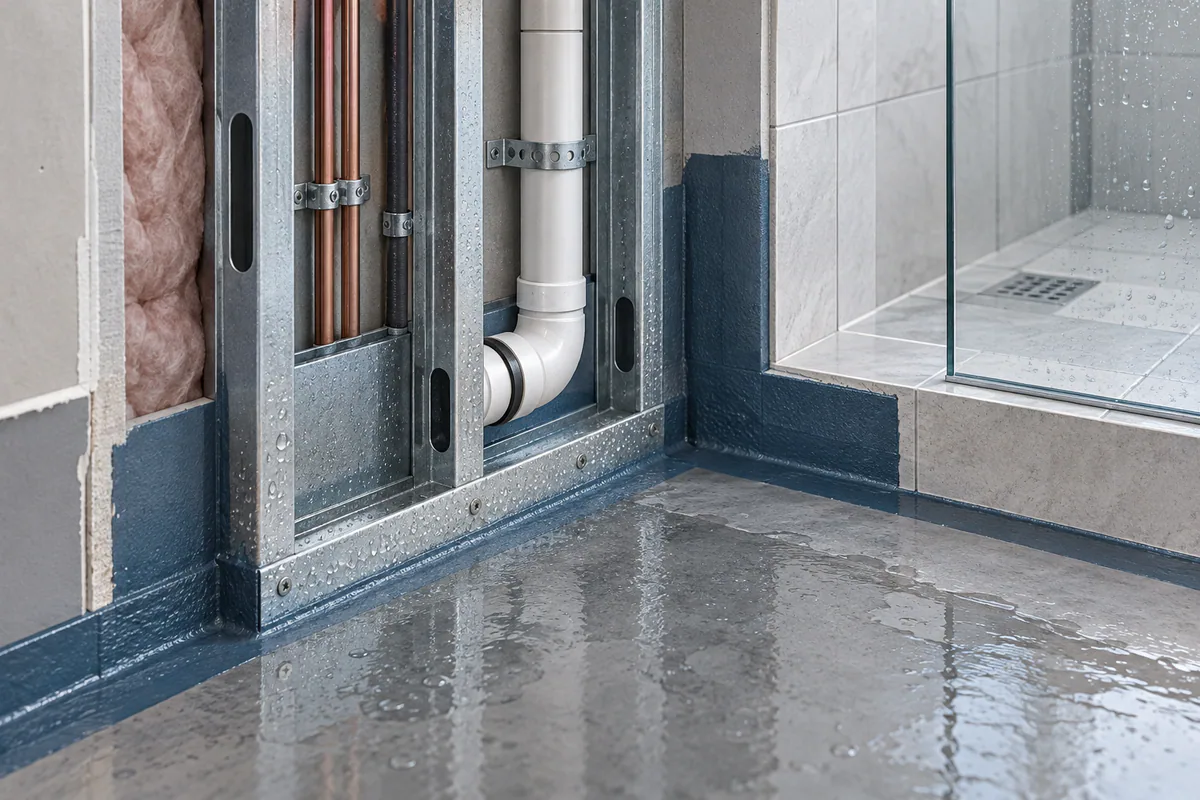

A wet room, utility space, or recurring leak can expose CFS framing differently from a dry interior cavity. Steel coating identification and waterproofing details address different parts of the problem. The project should define expected exposure, material requirements, and drainage rather than assume every galvanized member has identical suitability.
Coordinate before releasing the work
Identify likely moisture sources and obtain specified framing and fastener protection information. Coordinate waterproofing terminations, penetrations, and base details with the enclosure or wet-area designer. Review compatibility with adjacent materials and treatment products. Existing staining or corrosion should be documented for assessment instead of covered after a cosmetic cleaning.
How it fits the building system
Performance belongs to the complete assembly and its junctions. Structural attachment, fire resistance, sound control, and water management require compatible details, but they are not established by the same product label. Compare the project requirements with the exact assembly, test documentation, and manufacturer instructions being proposed. A substitution that simplifies framing may require a separate review of enclosure or acoustic performance.
Trace the interface beyond the face of the wall. Follow fasteners, backing, insulation, membranes, sealants, and finish layers through the corner or opening. Assign responsibility for concealed components and schedule review before the next layer blocks access. Photographs should identify the location and detail, while signed review records explain acceptance. A clean finished surface is insufficient evidence that the concealed junction matches the intended assembly.
References: Structural studs: product data and design resources · Current technical notes for CFS walls, floors, connections, and inspection · Rainscreen placement, attachments, and moisture-management interfaces
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Identify exposure sources and specified coatings for members and fasteners.
- Coordinate waterproofing bases and service penetrations.
- Document observed corrosion or construction wetting before concealment.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Exposure | Moisture-source review | Required protection basis |
| Materials | Coating and compatibility records | Accepted products |
| Water control | Base and penetration detail | Installed continuity |
Verification and handoff to the next trade
Before closing wet-area walls, verify product identification and accepted waterproofing transitions at bases and service penetrations. Record any exposure during construction and obtain disposition where damage or persistent moisture is observed. Preserve access to service points that can leak and provide the owner with relevant maintenance interfaces. A coating label does not excuse an unresolved water source; closeout should show the moisture-management details actually installed and any conditions still requiring investigation.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Does galvanized mean suitable for every wet environment?
No universal suitability follows. Review specified protection, exposure, adjacent materials, and moisture-control details for the actual project condition.
Can visible corrosion be painted over before closure?
Document it and obtain the appropriate assessment and disposition. A finish coating alone does not establish member condition or resolve the water source.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural studs: product data and design resources ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
- Rainscreen placement, attachments, and moisture-management interfaces ClarkDietrich
