Using a Slab-Edge Survey Before Releasing CFS Wall Panels
Turn slab-edge and elevation survey data into a clear CFS wall-panel release decision, with documented deviations and review ownership.
The condition to resolve

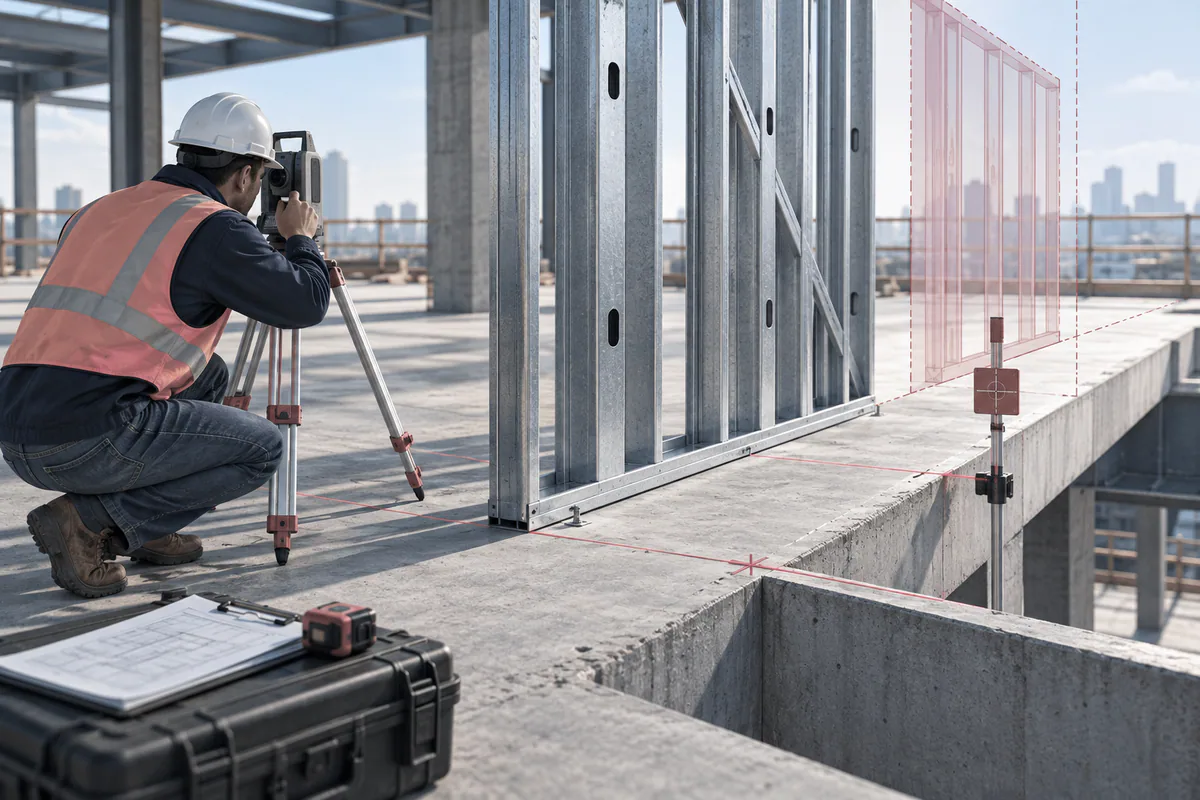

A concrete slab edge may differ from the model that generated exterior wall panels. That difference can affect the wall line, base support, connection access, and cladding alignment. Measuring only the building grid does not describe the edge condition where the panel will attach. Capture the actual support geometry at the relevant elevations and locations.
Coordinate before releasing the work
Use a survey record tied to named grids and a stated datum. Overlay the edge with the designed wall line and attachment detail, then mark exceptions rather than averaging them away. Send deviations to the structural and enclosure reviewers as applicable. Track which zones can be released and which await a response, especially when panel heights and facade interfaces depend on the same survey.
How it fits the building system
Cold-formed steel wall coordination starts with the wall's assigned role. A bearing wall, a wall resisting lateral forces, and a curtain wall can have similar-looking members but different support and movement details. Product literature supplies member information; it does not establish the building's load path. Identify the responsible structural designer and the current project detail before treating a catalog illustration as a construction instruction.
Overlay the architectural wall line with the structural support and the actual field survey. Carry the reference elevation, member orientation, opening locations, and interfaces into the same review. A dimension that works in plan may still conflict with a beam flange, slab edge, or finish at another elevation. Record these conflicts while the framing remains accessible, then obtain a coordinated response before changing members or connections.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Structural track: applications and supporting details · Deep leg deflection track system
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Record slab edge and top elevation using a shared datum.
- Compare the real attachment zone with the approved wall detail.
- Separate releasable panel zones from unresolved survey exceptions.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Edge location | Grid-based survey | Wall alignment response |
| Support elevation | Measured elevation record | Panel height and base condition |
| Attachment zone | Section with actual edge | Connection review disposition |
Verification and handoff to the next trade
The panel release record should identify the exact survey revision and the zones it supports. Verify that resolved edge deviations appear in the fabrication geometry and attachment details, not only in a reviewer email. Recheck the receiving surface where later concrete or adjacent work changes it. Keep remaining exceptions visible to the erection team and preserve the accepted measured condition for facade review so the wall and cladding do not use different edge assumptions.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can panel heights be released from nominal floor elevations?
Only when the project release process accepts that basis. Where field geometry matters, obtain the assigned survey and review before fixing fabrication dimensions.
Should an irregular slab edge be hidden with finish adjustments?
Finish changes do not evaluate support or connection conditions. Record the irregularity and obtain the relevant structural and enclosure decisions.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
- Structural studs: product data and design resources ClarkDietrich
- Structural track: applications and supporting details ClarkDietrich
- Deep leg deflection track system ClarkDietrich
