Roofing & enclosure
Reviewing Acoustic Flanking at CFS Wall and Floor Junctions
Review CFS acoustic junctions for indirect sound paths through floors, ceilings, services, and adjacent assemblies before enclosure.
The condition to resolve

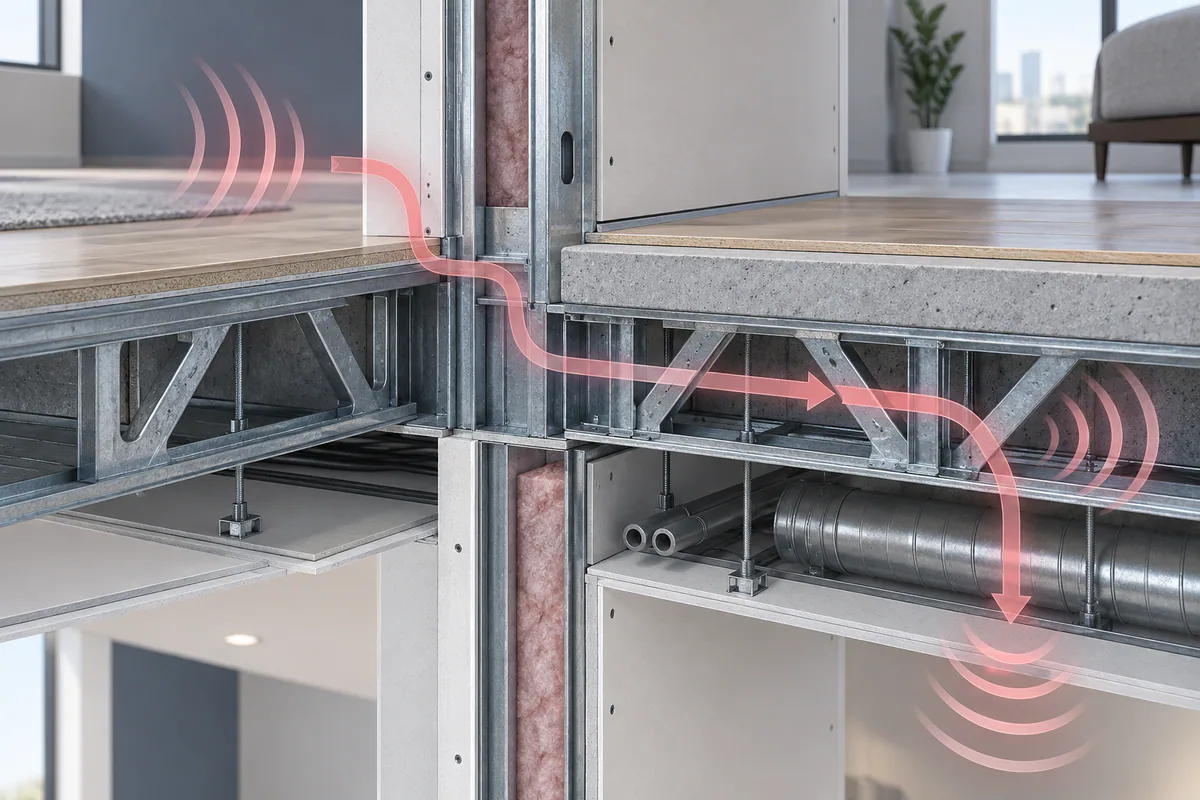

Sound can travel around an intended separation through continuous floors, ceilings, service cavities, and adjoining walls. A tested wall configuration does not automatically describe these junctions. Coordinate the actual project geometry and acoustic expectations before selecting details solely from a published assembly rating.
Coordinate before releasing the work
Ask the acoustic reviewer to identify important indirect paths at unit boundaries and other sensitive separations. Overlay structural connections and service routes with the junction details. Distinguish laboratory assembly results from the expected installed condition. Review perimeter continuity, penetrations, and intersecting layers together without promising a numerical site result from an unrelated test.
How it fits the building system
Performance belongs to the complete assembly and its junctions. Structural attachment, fire resistance, sound control, and water management require compatible details, but they are not established by the same product label. Compare the project requirements with the exact assembly, test documentation, and manufacturer instructions being proposed. A substitution that simplifies framing may require a separate review of enclosure or acoustic performance.
Trace the interface beyond the face of the wall. Follow fasteners, backing, insulation, membranes, sealants, and finish layers through the corner or opening. Assign responsibility for concealed components and schedule review before the next layer blocks access. Photographs should identify the location and detail, while signed review records explain acceptance. A clean finished surface is insufficient evidence that the concealed junction matches the intended assembly.
References: Sound clips and tested assembly configurations · Fire and acoustic assembly research directory · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Map indirect paths at wall, floor, ceiling, and service junctions.
- Coordinate structural attachments across the acoustic boundary.
- Review added backing and penetrations before closure.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Boundary | Acoustic junction map | Relevant separation |
| Indirect path | Coordinated section | Continuity response |
| Evidence | Assembly test and project review | Applicable performance basis |
Verification and handoff to the next trade
Before finishes close the junction, walk the separation boundary and compare actual intersecting layers with the accepted acoustic details. Record service additions and backing that cross the boundary because they may introduce a new path. Preserve the review basis and any project-required verification results by location. If the owner changes occupancy or equipment, send the affected junction information back to the reviewer rather than assuming the original wall rating establishes the revised space's acoustic performance.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Does a high laboratory wall rating guarantee the finished room?
No. The installed junctions and indirect paths matter. Have the acoustic reviewer assess the actual assembly and project conditions.
Can sealant alone resolve every flanking path?
No universal treatment follows. Continuous framing, floors, services, and connected finishes need coordinated junction review, not a single product assumption.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Sound clips and tested assembly configurations ClarkDietrich
- Fire and acoustic assembly research directory SFIA / BuildSteel
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
