Coordinating Roof Drainage Trades in Steel Buildings

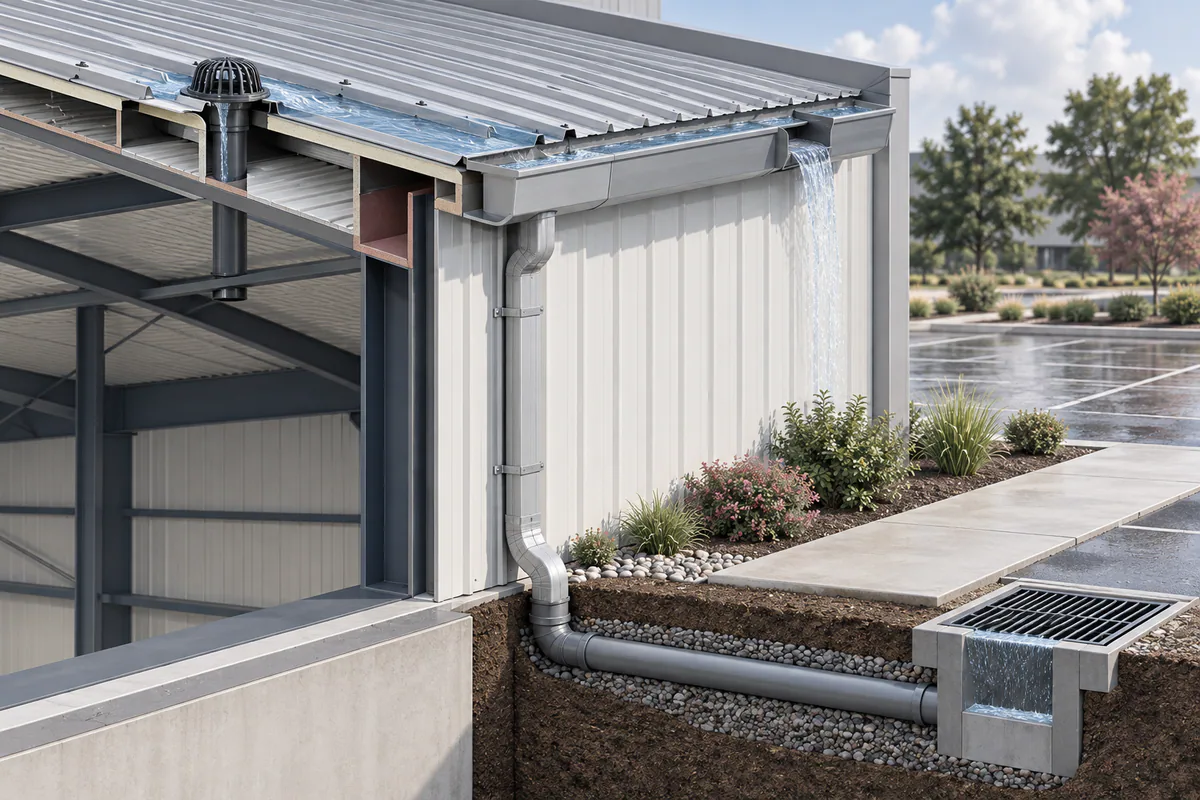

Connect steel roof drainage geometry, outlets, gutters, downspouts, overflow provisions when specified, and civil discharge coordination.
Define the condition and its scope
Roof drainage is a route from the roof surface to an accepted discharge location.
An enclosure interface is where several installation scopes meet. A steel-framed opening or roof accessory involves support, weather control, air continuity, thermal continuity, service clearances, and later access. These responsibilities are often divided among the building supplier, installer, door or equipment vendor, and other trades. Review the specific opening in plan and section before materials are released. A standard catalog detail can be a starting reference, but its support, movement, and exposure assumptions must match the proposed assembly.
References: Building enclosure commissioning process · HVAC integration of the building envelope
Gather the inputs before deciding
Trace the designed water route from roof areas through outlets, gutters, downspouts, specified overflow provisions, and the civil discharge location. Identify responsibility for each segment and review current grades and entrances. Ask designers to resolve conflicts, missing transitions, or differing termination locations. Gutters supplied in the roof package may not include the entire discharge arrangement. Keep material quantities separate from confirmation of the accepted drainage design.
- Reviewed roof drainage layout
- Outlet and gutter scope
- Downspout termination locations
- Civil discharge acceptance
References: Building enclosure commissioning process · HVAC integration of the building envelope
Set observable handoff deliverables
A downspout ending near an entrance can conflict with access and site water management.
| Input | Evidence to keep with it | Review status |
|---|---|---|
| Reviewed roof drainage layout | Accepted roof drainage plan | Identify reviewer and written decision |
| Outlet and gutter scope | Located outlet and termination details | Identify reviewer and written decision |
| Downspout termination locations | Coordinated civil discharge record | Identify reviewer and written decision |
Sequence review and release
Overlay drainage terminations on the site plan before roof and civil work are released. Review crossings with access, doors, landscaping, and underground services. Issue accepted revised details to both packages. Observe installed locations and any concealed connections as specified. When paving or site layout changes, revisit discharge interfaces rather than leaving downspouts at their original position without responsible review.
- Locate reviewed roof drainage layout in the current record.
- Compare outlet and gutter scope with the table's evidence.
- Document the decision: Review the complete drainage route across roof and site packages.
Worked project coordination example
The roof package places a downspout where the civil plan shows a pedestrian entrance. The two designers coordinate the complete discharge route before gutter and site work are installed.
Apply the stated release decision to the case: Review the complete drainage route across roof and site packages. The responsible team determines acceptance for the actual project and records any condition that still requires resolution.
Keep a closeout record another team can use
Keep accepted drainage plans, installed termination records, changes, and remaining site obligations. Provide maintenance access and product information for the actual components. Record unfinished connections separately from completed gutter installation. Future alterations should refer to the entire roof-to-site route. A finished fascia photograph cannot demonstrate that discharge coordination, specified overflow arrangements, or civil completion have been reviewed and accepted.
For this issue, include coordinated civil discharge record in the handoff. If review remains pending, identify the dependent work and its owner; do not present the record as a completed technical acceptance.
Common questions
Does installed guttering prove adequate drainage design?
No. Use the responsible design and accepted project details.
How should reviewed roof drainage layout be documented?
Review the complete drainage route across roof and site packages. Retain accepted roof drainage plan and check that the decision reached the team performing the dependent work.
