Coordinating the Steel Building Perimeter Base Water Interface
Coordinate steel wall bases with slab edges, exterior grades, drainage, flashing transitions, and concealed inspection access.
Define the condition and its scope

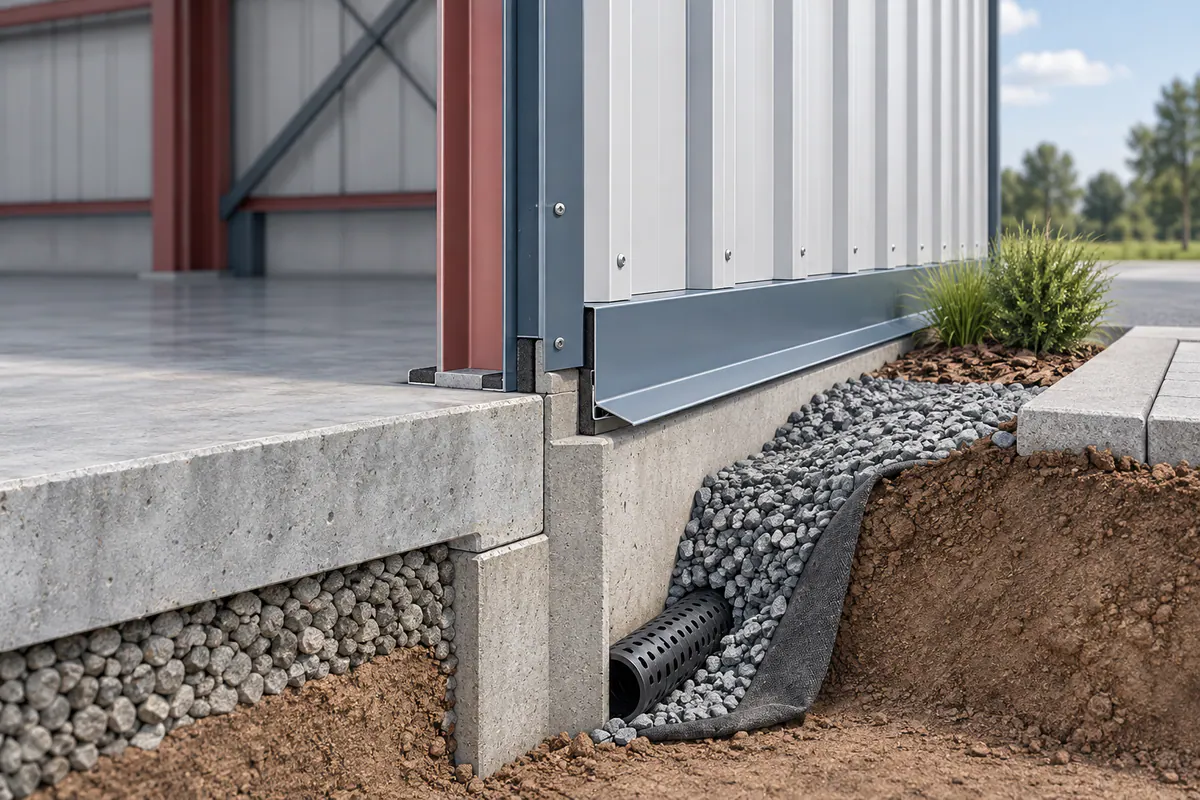

The wall base connects foundation geometry to the enclosure's water-management strategy.
An enclosure interface is where several installation scopes meet. A steel-framed opening or roof accessory involves support, weather control, air continuity, thermal continuity, service clearances, and later access. These responsibilities are often divided among the building supplier, installer, door or equipment vendor, and other trades. Review the specific opening in plan and section before materials are released. A standard catalog detail can be a starting reference, but its support, movement, and exposure assumptions must match the proposed assembly.
References: Building enclosure commissioning process · HVAC integration of the building envelope
Gather the inputs before deciding
Read the wall-base section together with slab edge, exterior grading, paving, flashing, and control-layer information. Identify drainage paths and the trade supplying each transition. Check material compatibility and installation access using the selected products' documents. Ask responsible reviewers to reconcile mismatched heights or terminations. A neat exterior sealant bead is not evidence that concealed transitions and adjoining grades form the accepted water-control detail.
- Wall-base and slab-edge detail
- Exterior grade relationship
- Water-control transition materials
- Concealed observation point
References: Building enclosure commissioning process · HVAC integration of the building envelope
Set observable handoff deliverables
Exterior paving changes can bury or interrupt a previously accepted wall-base transition.
| Input | Evidence to keep with it | Review status |
|---|---|---|
| Wall-base and slab-edge detail | Coordinated wall-base section | Identify reviewer and written decision |
| Exterior grade relationship | Current civil grading reference | Identify reviewer and written decision |
| Water-control transition materials | Accepted transition and observation record | Identify reviewer and written decision |
Sequence review and release
Review the base detail before the perimeter condition is concealed or paving fixes the exterior relationship. Coordinate the first installation with concrete, panel, and site contractors. Observe specified transitions while accessible and record corrections. Revisit the section when landscaping or paving changes. Keep an altered grade held for responsible review instead of extending trim or sealant as an improvised response to the new condition.
- Locate wall-base and slab-edge detail in the current record.
- Compare exterior grade relationship with the table's evidence.
- Document the decision: Accept the coordinated base, grade, and water-control interface before concealment.
Worked project coordination example
A paving revision raises the surface beside a wall base. Civil and enclosure reviewers compare the new section with the accepted drainage detail before the paving contractor places the affected area.
Apply the stated release decision to the case: Accept the coordinated base, grade, and water-control interface before concealment. The responsible team determines acceptance for the actual project and records any condition that still requires resolution.
Keep a closeout record another team can use
Retain the coordinated base section, observed concealed details, accepted grade changes, and installation products. Identify remaining exterior completion and maintenance responsibilities. Give the owner the relationship that must be reconsidered before later paving or grade alterations. An accepted detail applies to its reviewed assembly and site geometry. Preserve actual installed conditions so future repairs can evaluate the complete interface rather than only a visible panel edge.
For this issue, include accepted transition and observation record in the handoff. If review remains pending, identify the dependent work and its owner; do not present the record as a completed technical acceptance.
Common questions
Can surface sealant alone settle a base detail?
No. Review the complete joint, drainage, materials, and adjoining geometry.
How should wall-base and slab-edge detail be documented?
Accept the coordinated base, grade, and water-control interface before concealment. Retain coordinated wall-base section and check that the decision reached the team performing the dependent work.
