Reviewing Overhead Door Interfaces in Steel Buildings
Coordinate overhead door clearances, jamb supports, operators, thresholds, perimeter sealing, and adjoining steel building scopes.
Define the condition and its scope
The door opening has support, operating clearance, service, and enclosure requirements that must agree.
An enclosure interface is where several installation scopes meet. A steel-framed opening or roof accessory involves support, weather control, air continuity, thermal continuity, service clearances, and later access. These responsibilities are often divided among the building supplier, installer, door or equipment vendor, and other trades. Review the specific opening in plan and section before materials are released. A standard catalog detail can be a starting reference, but its support, movement, and exposure assumptions must match the proposed assembly.
References: Building enclosure commissioning process · HVAC integration of the building envelope
Gather the inputs before deciding
Use the selected vendor's required opening, clearances, tracks, operator arrangement, support information, and service-access diagrams. Overlay these with structural and interior framing records. Coordinate threshold and wall-perimeter transitions with civil and enclosure details. Identify power and controls responsibilities. Nominal width and height cannot reveal conflicts with tracks, headroom, equipment, or interior assemblies that occupy the operating space.
- Vendor opening and clearance data

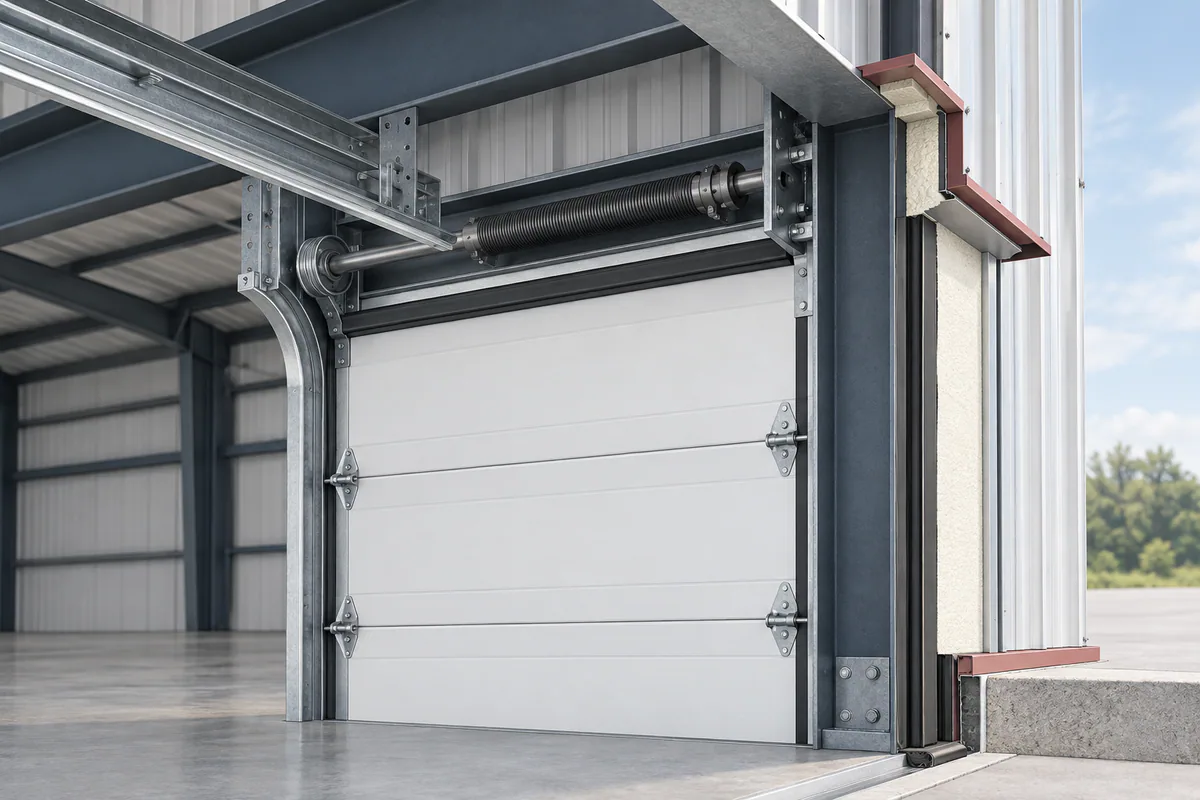

- Jamb and header interfaces
- Operator power and service access
- Threshold and perimeter transitions
References: Building enclosure commissioning process · HVAC integration of the building envelope
Set observable handoff deliverables
A correct rough opening can still conflict with tracks, operators, or service access.
| Input | Evidence to keep with it | Review status |
|---|---|---|
| Vendor opening and clearance data | Current vendor clearance diagram | Identify reviewer and written decision |
| Jamb and header interfaces | Coordinated support and interior overlay | Identify reviewer and written decision |
| Operator power and service access | Accepted threshold and perimeter detail | Identify reviewer and written decision |
Sequence review and release
Resolve support and operating-space conflicts before releasing door and adjoining framing packages. Issue the accepted vendor layout with the coordinated opening detail. Establish installer handoffs for perimeter work and electrical services. Check the actual opening and installation against the accepted references. Route discrepancies before modifying supports or adjacent framing. Preserve review of any relocated operator or changed track configuration.
- Locate vendor opening and clearance data in the current record.
- Compare jamb and header interfaces with the table's evidence.
- Document the decision: Accept the full operating envelope and enclosure interface before release.
Worked project coordination example
A door operator occupies space reserved for interior cold-formed framing. The team overlays vendor and interior layouts, obtains the responsible disposition, and updates both packages before installation.
Apply the stated release decision to the case: Accept the full operating envelope and enclosure interface before release. The responsible team determines acceptance for the actual project and records any condition that still requires resolution.
Keep a closeout record another team can use
Save installed door identification, support and clearance references, perimeter observations, and operator service information. Separate remaining adjustments from final acceptance. Give the owner operating and maintenance instructions for the actual system. Later interior changes should be checked against its operating envelope. The record should explain accepted interfaces rather than imply every door can fit any steel opening of the same nominal size.
For this issue, include accepted threshold and perimeter detail in the handoff. If review remains pending, identify the dependent work and its owner; do not present the record as a completed technical acceptance.
Common questions
Is nominal door size enough for coordination?
No. Obtain the selected vendor's opening, clearance, and support information.
How should vendor opening and clearance data be documented?
Accept the full operating envelope and enclosure interface before release. Retain current vendor clearance diagram and check that the decision reached the team performing the dependent work.
