Coordinating Louvers in Steel Building Enclosures
Coordinate steel building louvers with airflow requirements, wall openings, support, drainage, air-control transitions, and maintenance access.
Define the condition and its scope

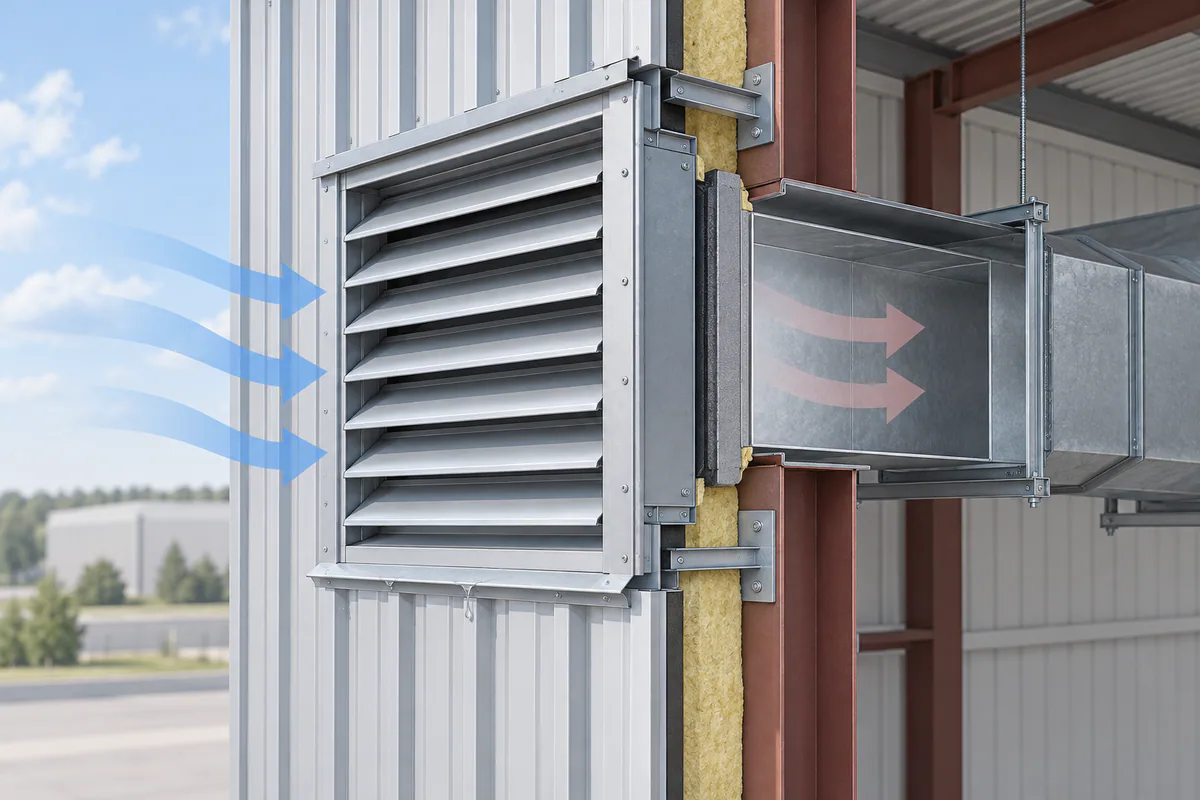

A louver connects mechanical performance to a specific wall and weather-control interface.
An enclosure interface is where several installation scopes meet. A steel-framed opening or roof accessory involves support, weather control, air continuity, thermal continuity, service clearances, and later access. These responsibilities are often divided among the building supplier, installer, door or equipment vendor, and other trades. Review the specific opening in plan and section before materials are released. A standard catalog detail can be a starting reference, but its support, movement, and exposure assumptions must match the proposed assembly.
References: Building enclosure commissioning process · HVAC integration of the building envelope
Gather the inputs before deciding
Obtain the selected louver's dimensions, performance information, mechanical duty, installation limits, and service needs. Compare its opening, support, drainage, and perimeter transitions with the actual wall assembly. Identify the mechanical and enclosure review roles separately. A same-size substitution may differ in relevant performance or interface requirements. Keep the accepted vendor information traceable to the opening identifier and current product selection.
- Selected louver product data
- Mechanical airflow requirements
- Wall opening and support
- Drainage and service access
References: Building enclosure commissioning process · HVAC integration of the building envelope
Set observable handoff deliverables
Matching nominal opening dimensions does not establish airflow or weather suitability.
| Input | Evidence to keep with it | Review status |
|---|---|---|
| Selected louver product data | Accepted louver product information | Identify reviewer and written decision |
| Mechanical airflow requirements | Mechanical duty confirmation | Identify reviewer and written decision |
| Wall opening and support | Coordinated wall transition and access | Identify reviewer and written decision |
Sequence review and release
Review the louver with the mechanical designer and wall-system participants before purchase. Resolve support and weather-control transitions on a located section. Establish installation order and required observation access. Verify the supplied product and first installation against the accepted record. Route substitutions and field discrepancies for both mechanical and enclosure disposition rather than asking one installer to decide the complete interface alone.
- Locate selected louver product data in the current record.
- Compare mechanical airflow requirements with the table's evidence.
- Document the decision: Accept mechanical function and enclosure interfaces together.
Worked project coordination example
A contractor proposes a different louver with the same outside dimensions. Mechanical and enclosure reviewers compare product performance and transition details before accepting the substitution into the wall package.
Apply the stated release decision to the case: Accept mechanical function and enclosure interfaces together. The responsible team determines acceptance for the actual project and records any condition that still requires resolution.
Keep a closeout record another team can use
Retain the installed louver identity, mechanical acceptance, wall detail, observed transitions, and maintenance access. Identify remaining adjustments or testing separately. Provide the owner relevant service instructions and review needs for later replacement. The record should show both accepted function and installed enclosure connections. A photograph of a completed exterior grille does not establish the performance information or concealed transitions used in the coordinated design.
For this issue, include coordinated wall transition and access in the handoff. If review remains pending, identify the dependent work and its owner; do not present the record as a completed technical acceptance.
Common questions
Can louver size alone establish equivalence?
No. The responsible reviewers evaluate product performance and installation conditions.
How should selected louver product data be documented?
Accept mechanical function and enclosure interfaces together. Retain accepted louver product information and check that the decision reached the team performing the dependent work.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Building enclosure commissioning process National Institute of Building Sciences / WBDG
- HVAC integration of the building envelope Whole Building Design Guide
