Mapping Conditioned Space Boundaries in Steel Buildings
Coordinate conditioned and unconditioned steel building zones through walls, roofs, slabs, doors, penetrations, and HVAC design assumptions.
Define the condition and its scope
A conditioning boundary must remain continuous across all affected plans and sections.
Energy coordination starts with the actual use of the steel building: conditioned spaces, operating hours, equipment, indoor moisture, and expected maintenance. The metal shell, cold-formed infill, openings, and HVAC systems must be considered together. A component's insulation label is not a complete description of whole-assembly performance. Establish the applicable energy requirements and compliance approach with the responsible design team. DOE's state resources help research adoption, while the local authority confirms which edition and amendments govern the project.
References: State energy code portal · Energy and sustainability resources · HVAC integration of the building envelope
Gather the inputs before deciding
Ask the owner which rooms and operations are intended to be conditioned, including shutdown and future-use assumptions. Trace the boundary through floor, walls, ceiling or roof, doors, and service crossings. Compare it with mechanical plans and energy documentation. Identify transitions between an interior office and an unconditioned shell. A line on a floor plan is insufficient when the ceiling or services leave the zone open.
- Owner operating temperature intentions
- Marked zone boundary
- Interior dividing assembly
- HVAC and opening coordination
References: State energy code portal · Energy and sustainability resources · HVAC integration of the building envelope
Set observable handoff deliverables

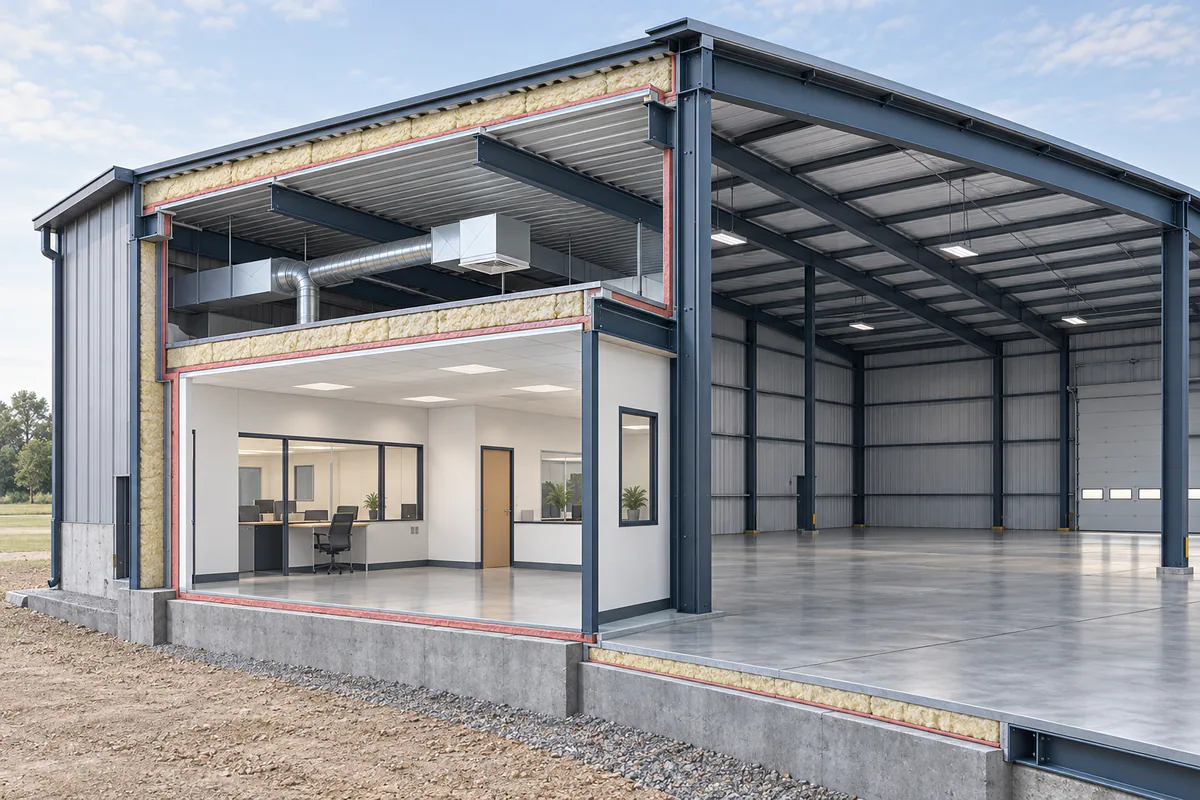

A heated office beside an open shop needs a coordinated boundary at its ceiling and services.
| Input | Evidence to keep with it | Review status |
|---|---|---|
| Owner operating temperature intentions | Owner-confirmed conditioned zones | Identify reviewer and written decision |
| Marked zone boundary | Coordinated boundary drawings | Identify reviewer and written decision |
| Interior dividing assembly | Mechanical and enclosure review record | Identify reviewer and written decision |
Sequence review and release
Prepare coordinated plans and sections showing the complete proposed boundary. Review assembly interfaces with enclosure and mechanical designers. Resolve service penetrations and access requirements before interior release. Observe specified transitions before finishes conceal them. If the owner changes conditioning scope, update the boundary and ask the responsible team to reevaluate affected assumptions. Do not simply extend one insulation order without reviewing the rest of the assembly.
- Locate owner operating temperature intentions in the current record.
- Compare marked zone boundary with the table's evidence.
- Document the decision: Confirm the complete boundary with enclosure and mechanical designers.
Worked project coordination example
A small office sits inside a larger unconditioned shell. The team traces its walls, ceiling, doors, and service crossings instead of treating the shell roof insulation as the office's entire boundary.
Apply the stated release decision to the case: Confirm the complete boundary with enclosure and mechanical designers. The responsible team determines acceptance for the actual project and records any condition that still requires resolution.
Keep a closeout record another team can use
Retain the accepted zone map, assembly details, observed transitions, and operating assumptions. Give the owner clear information about the conditioned areas and future-change review needs. Record deviations or deferred boundary work separately. Later tenant improvements should start from this installed-condition record. An air-conditioning unit's presence does not establish that the room's complete enclosure boundary was designed, installed, or verified for the intended use.
For this issue, include mechanical and enclosure review record in the handoff. If review remains pending, identify the dependent work and its owner; do not present the record as a completed technical acceptance.
Common questions
Does heating one area make the entire shell conditioned?
Have the responsible team define the actual zones and applicable requirements.
How should owner operating temperature intentions be documented?
Confirm the complete boundary with enclosure and mechanical designers. Retain owner-confirmed conditioned zones and check that the decision reached the team performing the dependent work.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- State energy code portal U.S. Department of Energy
- Energy and sustainability resources Metal Building Manufacturers Association
- HVAC integration of the building envelope Whole Building Design Guide
