Panel Stitch Screws vs. Support and Clip Fasteners
Separate metal-panel lap screws, support attachments, and clip fasteners when planning lengths, washers, movement, and purchasing lists.

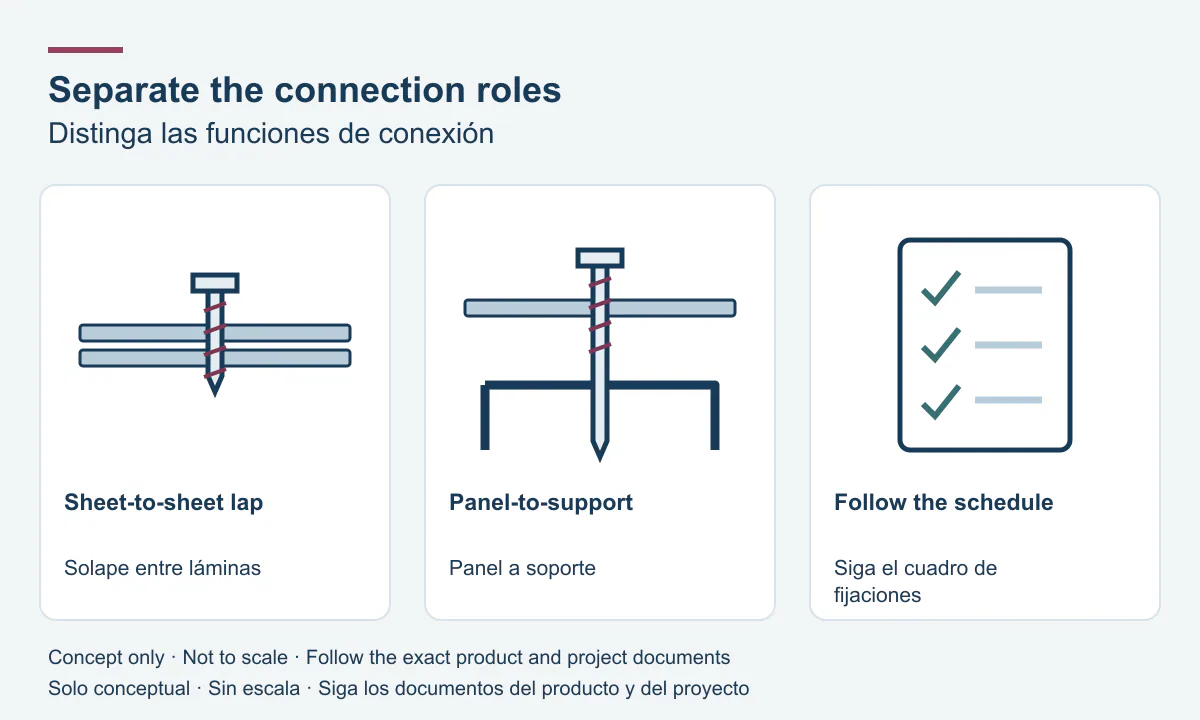

Start with the joint's assigned role
A roof or wall can use several fastening functions within a small area: joining neighboring sheets, connecting a panel to a purlin or girt, securing a clip, and attaching a flashing. Mark each function on the drawing. Avoid a single purchase line labeled roof screws when that line hides several distinct connections.
Manufacturer panel manuals distinguish panel support and lap locations. Their typical details must still be checked against the project's actual design. This guide organizes that review; it does not establish a fastening pattern, resistance, or permission to replace the specified screw with another diameter.
References: Commercial and industrial panel manual: attachment and lap details
Separate the catalog options by function
The fastener catalog contains lap, driller, tapping, and shoulder references. Keep the original identifiers in the takeoff, then connect each proposed item to a current project detail. A washer diameter, color, or Long Life description cannot establish the connection role without that supporting information.
| Connection | Information to collect | Acceptance question |
|---|---|---|
| Sheet-to-sheet lap | Panel profiles, overlapping layers, sealant | Which lap screw and joint detail apply? |
| Panel-to-support | Receiving support, complete stack, point | Does the selected screw match the designed support attachment? |
| Clip-to-support | Clip model, support material, fastener callout | Is the exact screw accepted for that clip system? |
| Flashing or accessory | Part detail, layers, exposure | Which attachment and seal are shown? |
References: Fastener catalog: product identifiers, heads, points, and accessories · Roofing and cladding fastener selection guide
Check point, engagement, and movement independently
Record every layer the screw penetrates and identify the material receiving its threads. Request the drill or pilot-hole requirements and connection data for the exact product. A short lap fastener and a support screw may look alike from above while serving different receiving conditions below the panel.
Where the system includes a sliding clip, slot, or shouldered fastener, obtain its particular assembly instructions. Identify what must remain free to move and what must be held. Do not assume that a generic shoulder screw fits every movement detail or that tightening an unfamiliar assembly more firmly improves it.
References: Roof clip self-drilling screws
Coordinate the water path and installation sample
Overlay the fastener positions with panel laps, sealant lines, closures, and drainage paths. Ask the panel reviewer to resolve a proposed attachment that conflicts with the accepted water-management detail. Keep changes to the joint geometry visible in the review rather than treating them as a purchasing substitution.
Prepare an accessible sample for each repeated joint type. Review the actual layers, selected screw, tool, head seating, washer condition, and visible panel shape. State who can accept a sample and who must answer a damaged-hole or distorted-panel condition. Retain photographs labeled by joint type so crews do not apply one accepted sample to every connection.
Send a connection-based request to the supplier
Provide a marked detail and a separate product line for each function. Ask the supplier for current dimensional and application documents, then obtain the responsible professional's response to load or system changes. Confirm price, package quantities, and finish only after the technical identity is clear.
- Tag each lap, support, clip, and flashing connection on the plan.
- Record product identifier, diameter, length, point, head, washer, finish, and color.
- Attach the receiving-material and assembly-stack information for that tag.
- Request confirmation of the applicable instructions and identify unresolved substitutions.
- Keep accepted products separated and labeled by connection during installation.
Common questions
Can a lap screw replace the fastener attaching a panel to a purlin?
Do not infer that from appearance or diameter. Compare the actual receiving support and the reviewed attachment detail. Obtain acceptance for the exact product and configuration before replacing a support fastener with a sheet-lap product.
Does a larger washer resolve a different connection requirement?
A larger washer changes one component of the assembly. It does not establish thread engagement, point suitability, movement allowance, or a sealed joint. Submit the complete proposed arrangement for review and retain the accepted detail with the product identification.
