Planning & documentation
Shop Inspection Records for Prefabricated CFS Panels
Organize CFS shop review records by panel mark, released revision, components, observations, and resolved exceptions before shipment.
The condition to resolve

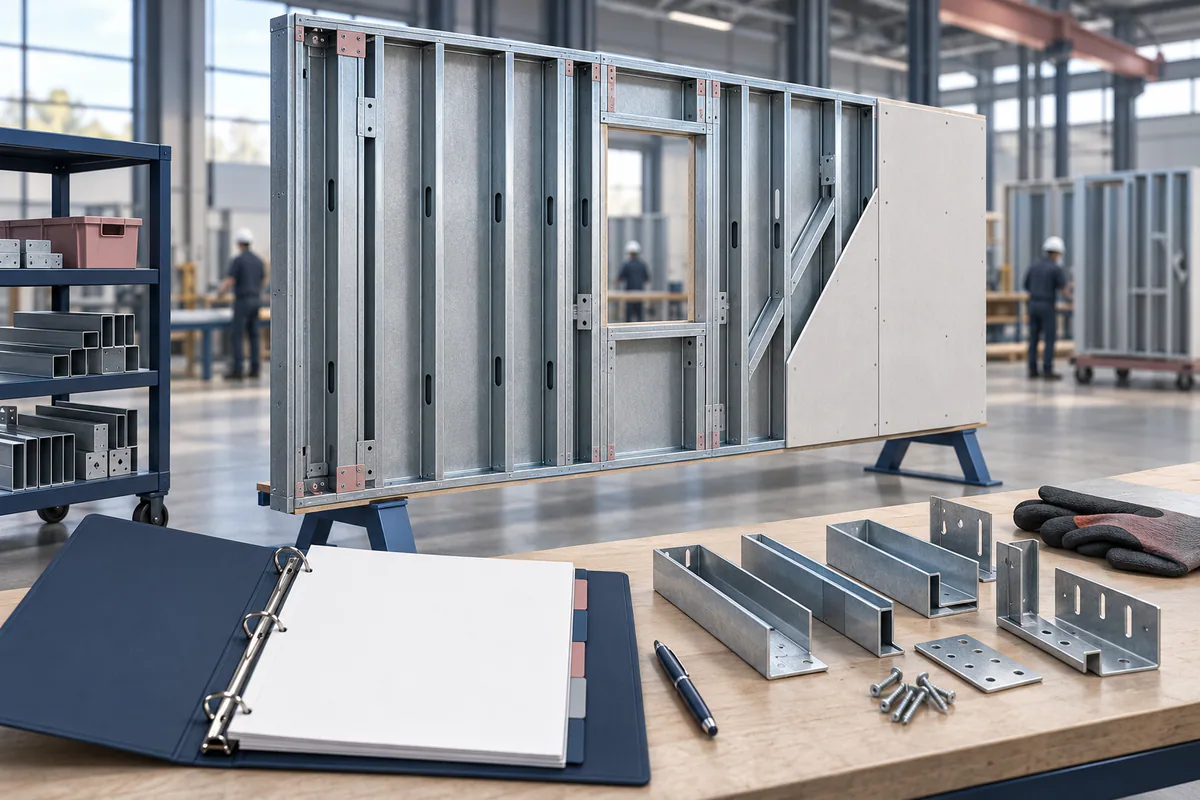

Factory sheathing can conceal connections before the panel reaches the site. A general quality statement does not show which panels were reviewed or what details were visible. Establish a panel-based record that follows fabrication and identifies the observations the project expects before covering components or shipping assemblies.
Coordinate before releasing the work
Define shop review scope with the project's assigned reviewers; do not assume every project requires the same formal inspection. Link product identification, dimensions, connection observations, and photographs to the panel mark and revision. Track corrective work separately from initial findings. Give field reviewers the relevant records so shop and site checks complement each other rather than leave a concealed interface unverified.
How it fits the building system
Offsite panelization changes when coordination decisions become expensive to reverse. The fabrication release should connect an approved drawing revision to actual member data, panel geometry, and the field installation plan. A model that displays a complete wall may omit a connection, a finish clearance, or a delivery constraint. Review what the fabrication model contains and which details remain in separate documents.
Separate the permanent building design from temporary handling and installation planning. A completed wall panel is not automatically designed for every lifting, storage, or erection condition. Assign review of those conditions to the appropriate competent parties and keep the approved plan with the shipment. The field crew needs identifiable panels, an installation sequence, accessible connections, and a way to report damage without improvising a repair.
References: CFS Prefab 101: fabrication and coordination workflow · Structural track: applications and supporting details · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Assign panel marks and drawing revisions to shop observations.
- Record concealed connections before factory closure.
- Close corrective items and transmit relevant records with shipment.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Product check | Member identification record | Matches released schedule |
| Concealed work | Detail-based observations | Accepted before closure |
| Exception | Correction and recheck record | Closed before shipment |
Verification and handoff to the next trade
Review the shipment's quality record for open exceptions before accepting its release status. Confirm any corrected concealed detail was rechecked through the assigned process and carries the current panel revision. Give the field team a clear boundary between shop observations and work still requiring site review. Archive the panel-based record with final installed locations so later reviewers can find evidence without interpreting a general factory quality certificate as verification of every connection.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Does a shop quality record replace field review?
No. The record covers its stated observations. Field connections, support conditions, and installation damage still need the project's assigned review.
Must every shop photograph show every connection?
Agree on meaningful evidence with the reviewer. Photographs should support identifiable locations and details, while the required review scope determines what must be observed.
