Reviewing Field Fit at Prefabricated CFS Panel Joints
Document CFS panel joint mismatches and coordinate support, connection, and enclosure responses before forcing an assembly into place.
The condition to resolve

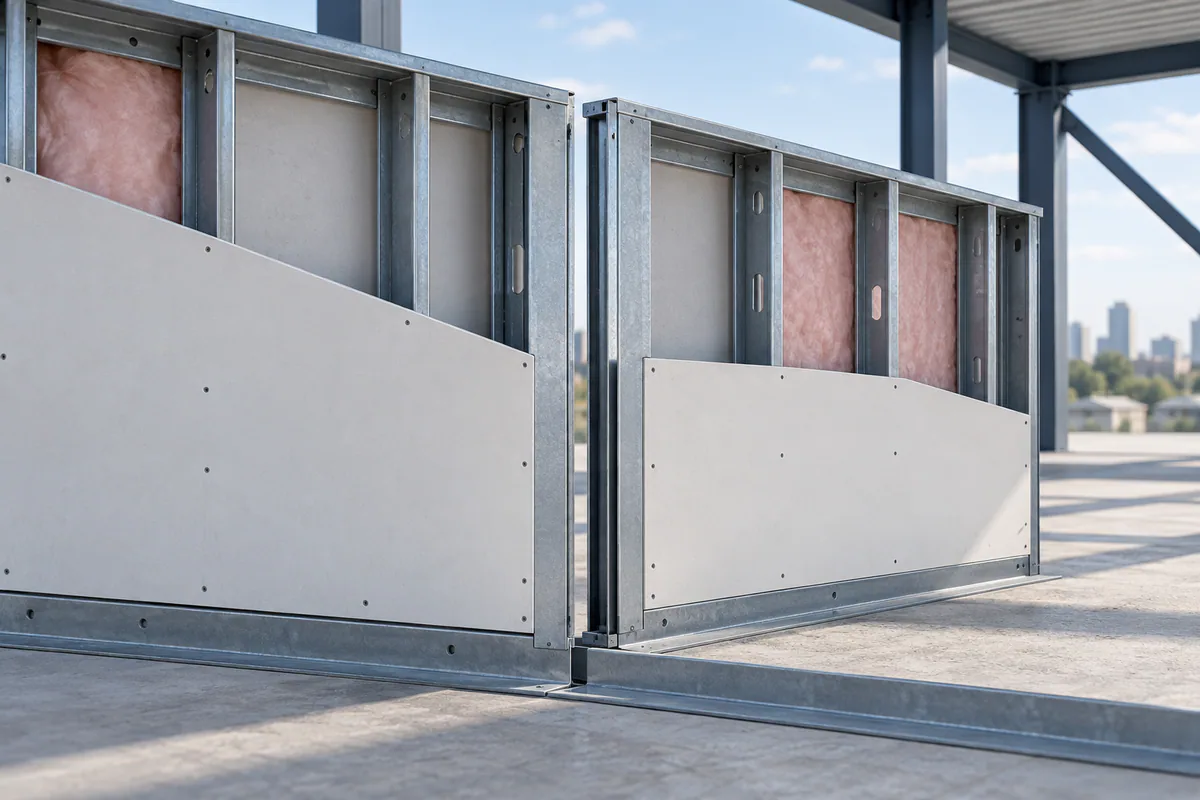

A panel joint may fail to align because of support geometry, orientation, fabrication dimensions, or accumulated layout differences. Forcing panels together can hide the cause and create another conflict at the opening or connection. Record the actual condition relative to the building grid and released panel marks before proposing corrective work.
Coordinate before releasing the work
Compare the support survey, adjacent panel drawings, and installed orientation. Show the gap or offset at several relevant locations so the reviewer understands the geometry. Route the proposed response to the panel designer and enclosure team when continuity is affected. Retain the original observation and accepted correction so later crews do not repeat an unreviewed adjustment.
How it fits the building system
Offsite panelization changes when coordination decisions become expensive to reverse. The fabrication release should connect an approved drawing revision to actual member data, panel geometry, and the field installation plan. A model that displays a complete wall may omit a connection, a finish clearance, or a delivery constraint. Review what the fabrication model contains and which details remain in separate documents.
Separate the permanent building design from temporary handling and installation planning. A completed wall panel is not automatically designed for every lifting, storage, or erection condition. Assign review of those conditions to the appropriate competent parties and keep the approved plan with the shipment. The field crew needs identifiable panels, an installation sequence, accessible connections, and a way to report damage without improvising a repair.
References: CFS Prefab 101: fabrication and coordination workflow · Structural track: applications and supporting details · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Verify adjacent panel marks, orientation, and drawing revision.
- Measure joint mismatch relative to the shared building datum.
- Coordinate structural and enclosure consequences of the proposed correction.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Mismatch | Measured joint record | Actual geometry and cause |
| Connection | Approved correction detail | Acceptable revised interface |
| Enclosure | Layer continuity review | Joint weather and finish response |
Verification and handoff to the next trade
After correcting a joint, verify the resulting connection and enclosure configuration against the accepted disposition. Preserve measurements before and after the work where needed to explain the actual adjustment. Check nearby openings and panel alignment for consequences of the correction rather than reviewing the joint alone. Update the field record if the original panel detail no longer describes the installed condition, and communicate those changes before the same mismatch is encountered in the next zone.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can crews trim a panel edge until the joint fits?
Do not make an unreviewed change to the assembly. Document the mismatch and use a designer-approved disposition that considers members, connections, and enclosure layers.
What evidence makes a field-fit request useful?
Provide panel marks, current revisions, grid location, measured offsets, support information, and clear photographs. Explain the proposed correction and affected adjoining work.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- CFS Prefab 101: fabrication and coordination workflow SFIA / BuildSteel
- Structural track: applications and supporting details ClarkDietrich
- Resources for framing contractors ClarkDietrich
