Planning Break Locations in Prefabricated CFS Wall Panels
Coordinate CFS panel breaks with load paths, openings, handling, field connections, and enclosure joints before fabrication.
The condition to resolve

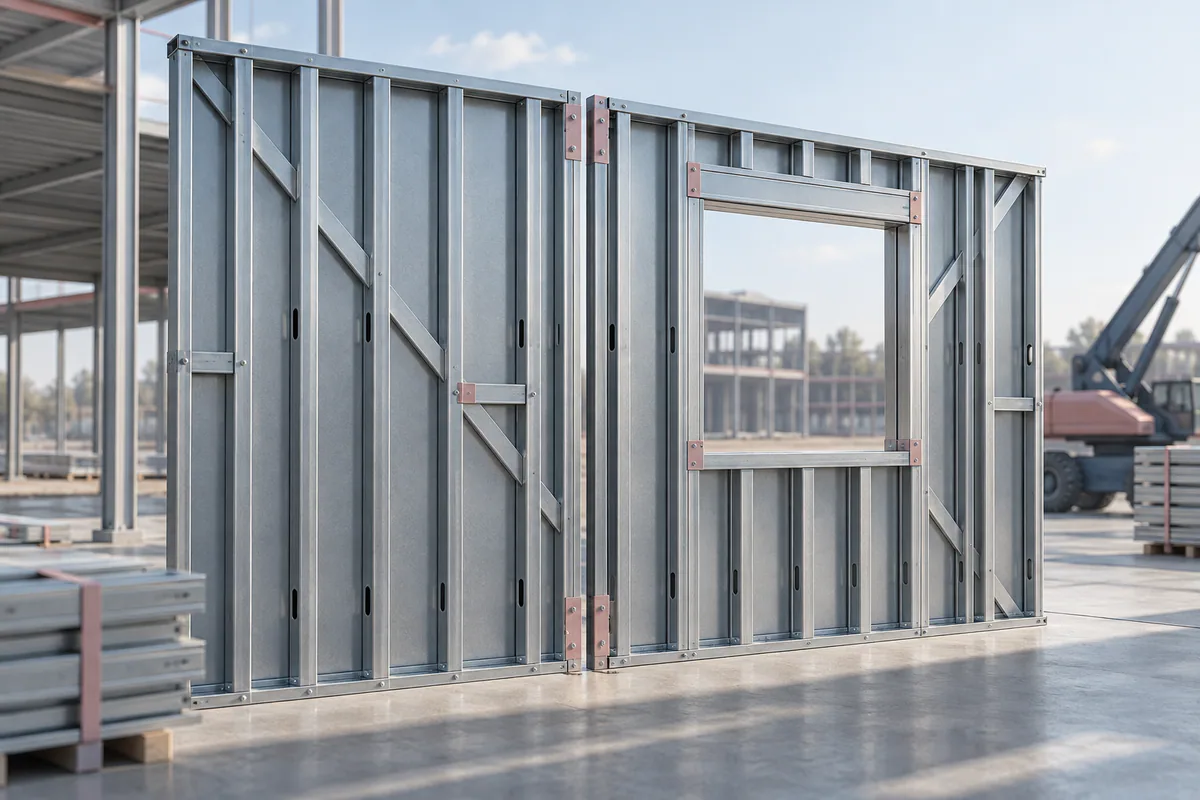

A shipping-friendly panel split may fall beside a concentrated reaction, through an opening assembly, or behind an inaccessible finish return. A break changes the fabrication and field-connection interface even when the wall appears continuous after finishing. Mark each proposed break against the structural details and the actual erection route.
Coordinate before releasing the work
Bring the panel designer, fabricator, installer, and enclosure team into the review. Compare transport limits and erection access with joint connection requirements. Clarify which sheathing and membrane joints occur in the shop and which remain field work. Release panel marks only after the break map and corresponding connection details agree.
How it fits the building system
Offsite panelization changes when coordination decisions become expensive to reverse. The fabrication release should connect an approved drawing revision to actual member data, panel geometry, and the field installation plan. A model that displays a complete wall may omit a connection, a finish clearance, or a delivery constraint. Review what the fabrication model contains and which details remain in separate documents.
Separate the permanent building design from temporary handling and installation planning. A completed wall panel is not automatically designed for every lifting, storage, or erection condition. Assign review of those conditions to the appropriate competent parties and keep the approved plan with the shipment. The field crew needs identifiable panels, an installation sequence, accessible connections, and a way to report damage without improvising a repair.
References: CFS Prefab 101: fabrication and coordination workflow · Structural track: applications and supporting details · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Overlay proposed breaks with bearing zones and opening assemblies.
- Review field connection access at every break location.
- Coordinate shop and field work for sheathing and membrane joints.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Panel split | Break-location plan | Structural joint review |
| Handling | Shipment and erection plan | Feasible panel geometry |
| Enclosure joint | Layer continuity detail | Shop versus field scope |
Verification and handoff to the next trade
At the first joint installation, compare actual connection access and layer continuity with the accepted break map. Record any relocated break and obtain the required structural and enclosure responses before repeating it. Confirm that the shipment marks still match the revised layout and that crews have the current joint detail. The final record should locate field-completed joints and their accepted configuration so future investigations can distinguish panel boundaries from ordinary framing intersections.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can a fabricator relocate a break to suit transport?
Submit the proposed change for the assigned design and installation review. Transport convenience does not establish the structural or enclosure acceptability of a new joint.
Should breaks follow every architectural wall segment?
Not automatically. Panel boundaries should reflect approved joint details, fabrication and handling constraints, and field access alongside the architectural geometry.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- CFS Prefab 101: fabrication and coordination workflow SFIA / BuildSteel
- Structural track: applications and supporting details ClarkDietrich
- Resources for framing contractors ClarkDietrich
