Preparing a CFS Framing Substitution Review Package
Evaluate CFS substitutions with exact member properties, connection interfaces, certifications, rated assemblies, and fabrication consequences.
The condition to resolve
A proposed member can share nominal depth with the specified product while differing in flange geometry, thickness designation, holes, coating, or connection compatibility. A purchasing comparison based on one dimension does not establish equivalence. Present the exact products and project uses so the responsible reviewers can assess the substitution's consequences.
Coordinate before releasing the work
Build a side-by-side product schedule with identified documents and revisions. Map each proposed substitution to wall, floor, opening, and connection details. Include rated-assembly and enclosure impacts where relevant. Ask the fabricator about model and tooling changes, then obtain the required review before ordering or producing parts from the alternate product.
How it fits the building system
A useful cold-formed steel scope connects quantities to drawings, responsibilities, and release conditions. Separate material supply, engineering, fabrication, installation, temporary work, inspection, and closeout so an included task can be verified. Area-based allowances can support early planning, but they should not conceal unresolved connections, openings, or interfaces. Describe the information still missing and the event that will convert an allowance to a defined scope.
Use comparable assumptions when evaluating offers. Different delivery sequences, panelization methods, access conditions, and design responsibilities can produce different prices without either proposal being incorrect. Record the drawing revision, exclusions, and schedule basis beside each offer. Reconcile those assumptions with the approved project documents before purchasing, then keep changes visible through fabrication and installation rather than relying on an informal understanding between individuals.
References: Resources for framing contractors · CFS Prefab 101: fabrication and coordination workflow · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.

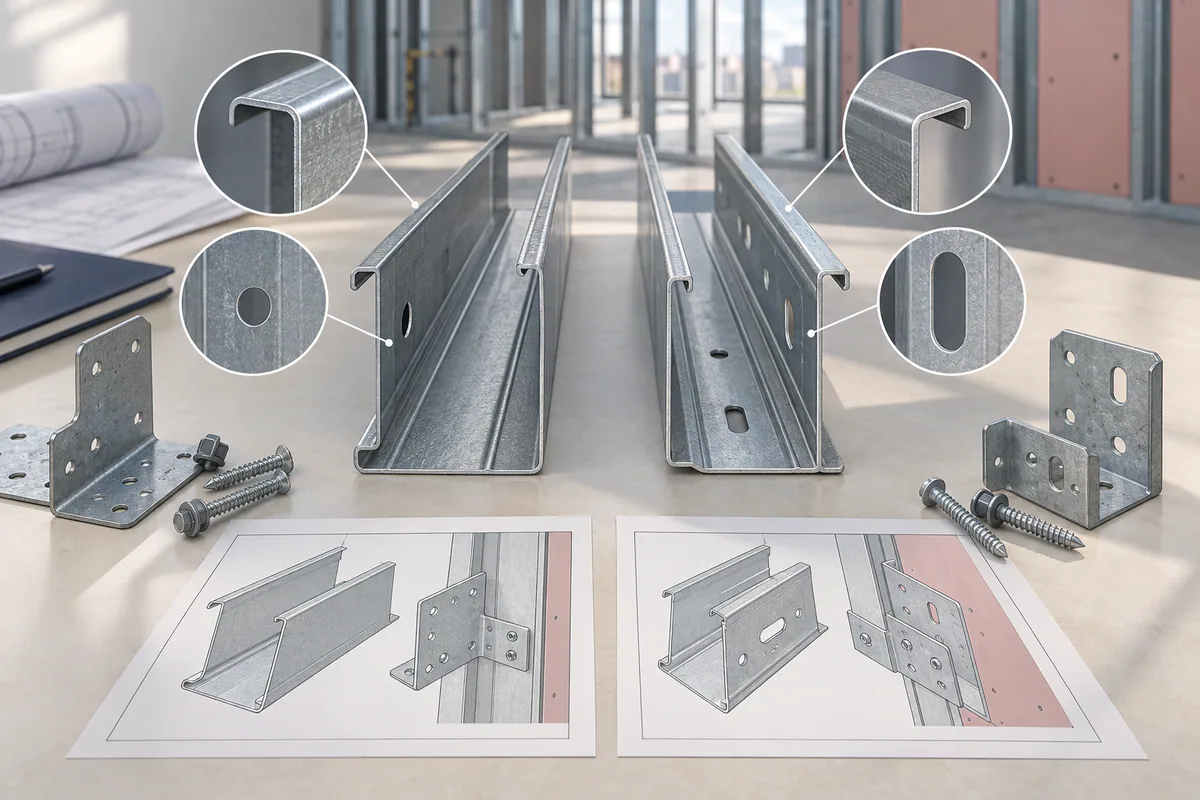

- Compare exact designations and source documents side by side.
- Map altered geometry and holes to connection and service details.
- Record approval limits and revised fabrication instructions.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Product | Exact proposed and specified data | Relevant differences |
| Interfaces | Affected detail map | Required reviews |
| Acceptance | Location-specific disposition | Authorized use boundaries |
Verification and handoff to the next trade
The accepted response should identify the substitute and the locations to which it applies, including required detail revisions. Confirm received product markings against that response and withdraw outdated schedules from active use. If only selected zones were approved, prevent the material from being distributed universally. Retain revised connection and assembly documents with the acceptance so later crews do not confuse a procurement-approved product with a substitute evaluated for every condition in the building.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Does matching gauge prove equivalence?
No. Gauge shorthand can omit design thickness and other attributes. Review the exact identified product and its use in the approved assembly.
Can one approved substitution apply everywhere?
Only where the acceptance explicitly covers the conditions. Different structural, rated, and connection interfaces may require separate evaluation.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Resources for framing contractors ClarkDietrich
- CFS Prefab 101: fabrication and coordination workflow SFIA / BuildSteel
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
