Planning & documentation
Documenting Labor Productivity Assumptions for CFS Framing
Build transparent CFS labor estimates from project geometry, access, assembly complexity, crew scope, and documented production assumptions.
The condition to resolve
A labor estimate based only on wall area can miss height, openings, structural connections, equipment access, and repeated layout differences. Shop fabrication and field installation also involve different tasks. State the assumptions behind the estimate so a bidder or project manager can see which conditions would change the labor plan.
Coordinate before releasing the work
Separate layout, cutting, assembly, lifting or placement, connection work, review support, and punch corrections. Identify access constraints and the sequence assumed for other trades. Use the contractor's documented data where available without presenting it as an industry-wide guarantee. Track early actual output against the same task definitions before revising the remaining plan.
How it fits the building system
A useful cold-formed steel scope connects quantities to drawings, responsibilities, and release conditions. Separate material supply, engineering, fabrication, installation, temporary work, inspection, and closeout so an included task can be verified. Area-based allowances can support early planning, but they should not conceal unresolved connections, openings, or interfaces. Describe the information still missing and the event that will convert an allowance to a defined scope.
Use comparable assumptions when evaluating offers. Different delivery sequences, panelization methods, access conditions, and design responsibilities can produce different prices without either proposal being incorrect. Record the drawing revision, exclusions, and schedule basis beside each offer. Reconcile those assumptions with the approved project documents before purchasing, then keep changes visible through fabrication and installation rather than relying on an informal understanding between individuals.
References: Resources for framing contractors · CFS Prefab 101: fabrication and coordination workflow · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.

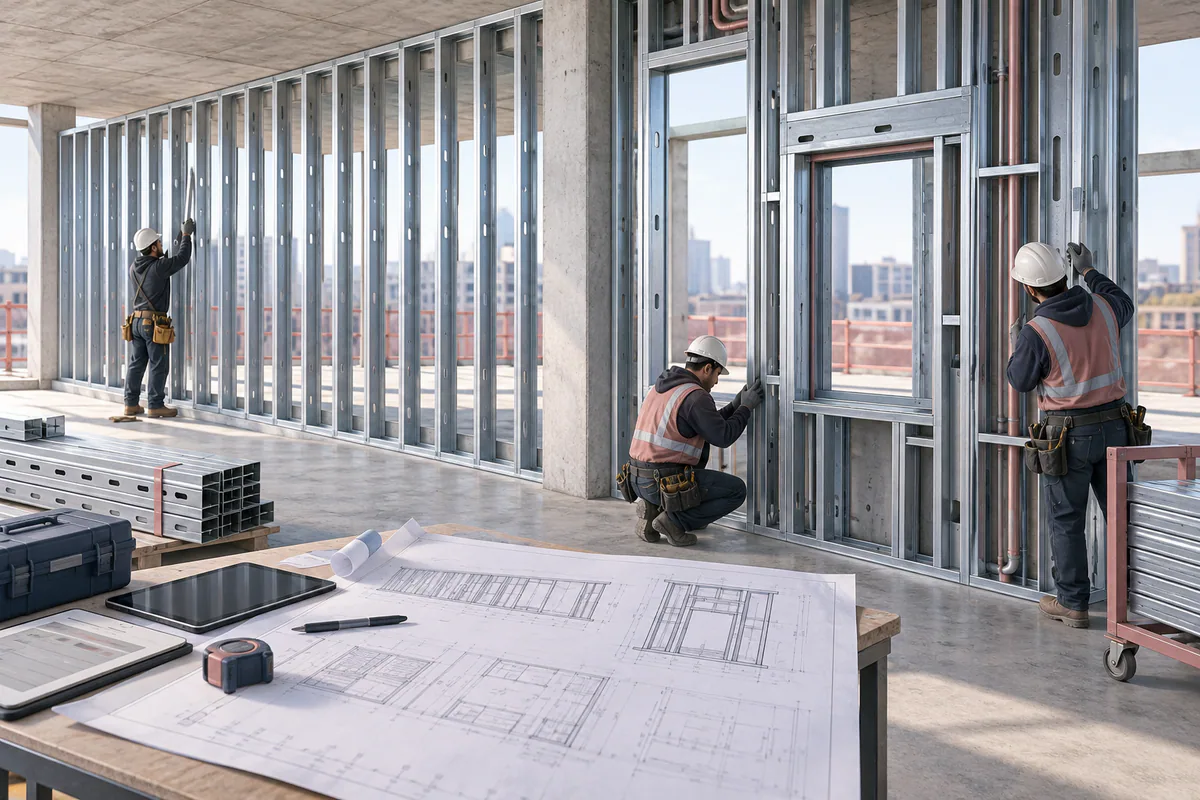

- Separate repetitive walls from openings and complex interfaces.
- Record access and adjacent-trade assumptions with labor quantities.
- Compare actual tasks with the estimate after a representative zone.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Quantity | Detail-based labor breakdown | Comparable task definition |
| Access | Site and equipment assumptions | Feasible work condition |
| Actual output | Location-based production record | Revised remaining-work basis |
Verification and handoff to the next trade
After the first representative work area, compare actual conditions with the estimate's assumptions and explain material differences. Do not turn a partial production result into a blanket schedule promise for more complex zones. Preserve quantities, crew scope, access conditions, and drawing revision with the comparison. The revised labor plan should identify remaining non-typical work and unresolved interfaces so a favorable average does not conceal the effort needed to complete connections, review access, or final corrections.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Is there one reliable square-feet-per-day CFS rate?
A universal rate would conceal project and crew differences. Use task-specific, documented assumptions and update them against representative actual conditions.
Does panelization eliminate field labor?
No. Receiving, handling, setting, connections, review support, and corrections remain. Compare the full scope when estimating panelized and field-framed work.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Resources for framing contractors ClarkDietrich
- CFS Prefab 101: fabrication and coordination workflow SFIA / BuildSteel
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
