Blind Rivets and Compression Fasteners for Metal Panels
Plan grip range, hole preparation, blind-side clearance, setting tools, and sealing for pop rivets and compression fasteners in panel and trim connections.

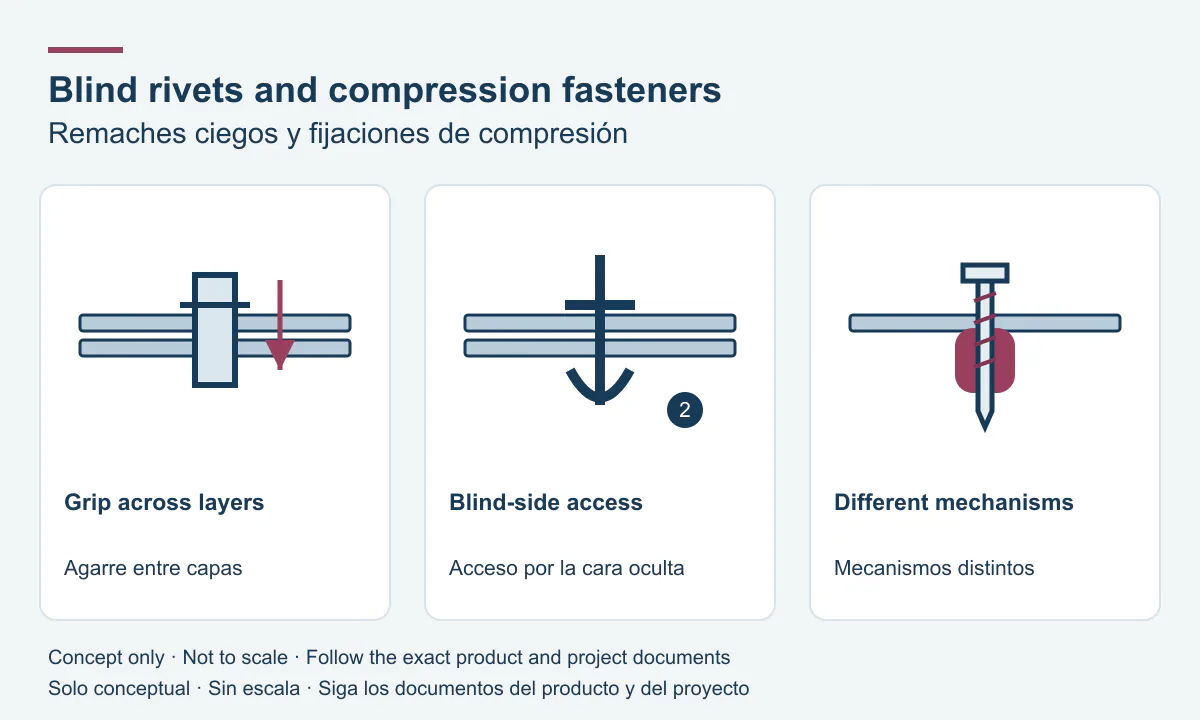

Distinguish the fastening mechanisms
A blind rivet permits installation from one accessible side of the joint. The product's setting system forms its blind-side attachment. A screw-operated compression fastener uses a different mechanism and requires its own installation instructions. Do not select the two by matching an exposed head or assuming the same hand tool will set both.
The Nexus catalog includes pop-rivet references and a Fab-Loc compression reference. Manufacturer literature for DEWALT Fab-Lok illustrates one screw-and-sleeve system, but that literature does not by itself prove the identity of a similarly named catalog item. Obtain the manufacturer's part number and matching document for the product supplied.
References: POP rivet design guidelines: joint, grip, hole, and tool access · Fab-Lok panel rivets: product-specific grip and setting instructions · Fastener catalog: product identifiers, heads, points, and accessories
Measure the joint before choosing a grip range
Record the actual materials held by the fastener, including any washers or intervening components that the product instructions include in the grip. Distinguish the complete assembly depth from the material thickness the fastener clamps. Show gaps or irregular contact on a sketch so they are reviewed before a sample is set.
Ask the supplier to identify the published minimum and maximum grip for the exact proposed part. Keep body length, nominal size, and grip range in separate fields. If the catalog label is ambiguous, resolve it with a current dimensional drawing rather than calculating a grip from the product title.
References: POP rivet design guidelines: joint, grip, hole, and tool access
Build the joint review table
Use a separate row for each trim lap, panel detail, or accessory interface. A single project can need several rivet configurations even when visible colors match. Record the fastening role and the responsible review so a trim connection is not silently reused as a structural attachment.
| Field | Evidence to request | Why it belongs in the record |
|---|---|---|
| Joint materials | Each sheet, coating, and washer | Supports compatibility review |
| Grip | Measured stack and published range | Separates clamp thickness from body length |
| Prepared hole | Exact diameter and permitted tolerance | Allows a defined hole inspection |
| Blind side | Clearance and setting envelope | Confirms space for the installed fastener |
| Sealing | Accepted fastener and joint detail | Documents weather-exposed interfaces |
| Tool | Setting tool, nosepiece, and inspection criteria | Keeps the product and method together |
Review the sample and weathering detail
Arrange a sample using the actual sheet stack and intended access. Ask the installer to demonstrate the specified setting method and the reviewer to identify acceptable head contact and joint fit. Record a distorted sheet, incomplete setting, spinning fastener, or damaged coating as a condition requiring review rather than hiding it under another washer.
For roof or exterior wall use, obtain the assembly's accepted water-management detail. A painted rivet head does not establish that the joint is sealed. Keep sealant, washer, and exposed-hole requirements with the particular joint, and preserve access for the planned inspection before the adjoining trim conceals it.
Release a complete inquiry and keep a repair record
Request the product identification, dimensional drawing, application limits, installation instructions, and available finish for each joint type. Include physical piece quantities and the tool or replacement nosepiece needed to complete the work. Ask the responsible designer to resolve load-related substitutions separately from purchasing questions.
- Mark the joint location and explain why access from only one side is needed.
- Attach material-stack measurements, prepared-hole requirements, and clearance information.
- Confirm the exact fastener model and approved setting tool before ordering.
- Record the sample review and obtain a specific repair response for damaged holes.
- Retain part identification and inspection records with the completed panel or trim detail.
Common questions
Can I choose a pop rivet from its overall length alone?
No. Match the actual joint to the published grip range for the exact rivet. Also confirm material, head, prepared hole, setting tool, and application. Similar nominal lengths can belong to different products with different accepted configurations.
Can a compression fastener automatically repair an enlarged screw hole?
No. Document the hole, surrounding sheet condition, connection role, and required seal. Obtain a product-specific repair detail and responsible review before enlarging the hole or changing the fastening mechanism. A product family description does not approve every damaged connection.
