PBR Light Transmitting Panel
PBR Light Transmitting Panel. A light transmitting panel for introducing daylight through a compatible building panel assembly. Coordinate its profile, dimensions, support, and fastening with the surrounding metal panels and the required safety controls. Choose color / finish, gauge, type, and length for your project.
Part: 81.1520

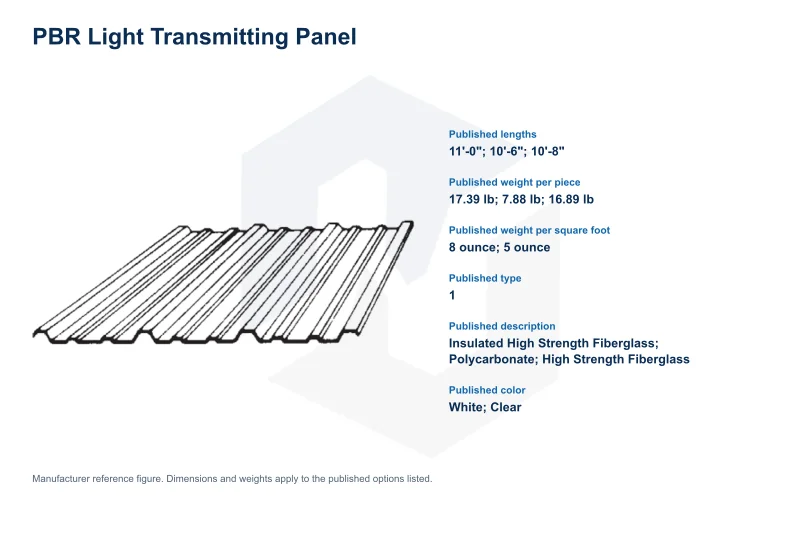

1 / 3 · MBCI published product reference figure. The shown finish and configuration are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Confirm the price basis, specifications, and availability before ordering.
Published product details
- Published lengths
- 11'-0"; 10'-6"; 10'-8"
- Published weight per piece
- 17.39#; 7.88#; 16.89#
- Published weight per square foot
- 8 ounce; 5 ounce
- Published type
- 1
- Published description
- Insulated High Strength Fiberglass; Polycarbonate; High Strength Fiberglass
- Published color
- White; Clear
Supplier specifications
| Part # | Description | Length | Color | Type | Weight/Sq Ft | Weight Each |
|---|---|---|---|---|---|---|
| HW-1490 | Insulated High Strength Fiberglass | 11'-0" | White | 1 | 8 ounce | 17.39# |
| HW-1520 | Polycarbonate | 10'-6" | Clear | 1 | 5 ounce | 7.88# |
| HW-1509 | High Strength Fiberglass | 10'-8" | White | 1 | 8 ounce | 16.89# |
Light transmitting panels require appropriate controls to prevent falls through the panel. Confirm the applicable installation and safety requirements; the panel is not a walking surface.
Product resources
Request current drawings and installation instructions for your selected product.
- Confirm the physical unit for thickness code 05/08. It does not establish steel gauge or weight in ounces per square foot.
