Flat Continuous Vent
Flat Continuous Vent. A continuous vent for a metal building roof assembly. Coordinate the vent base, roof panel profile, roof slope, and operating hardware with the project ventilation layout. Choose color / finish, gauge, size, and length for your project.
Part: 88.26.018.704

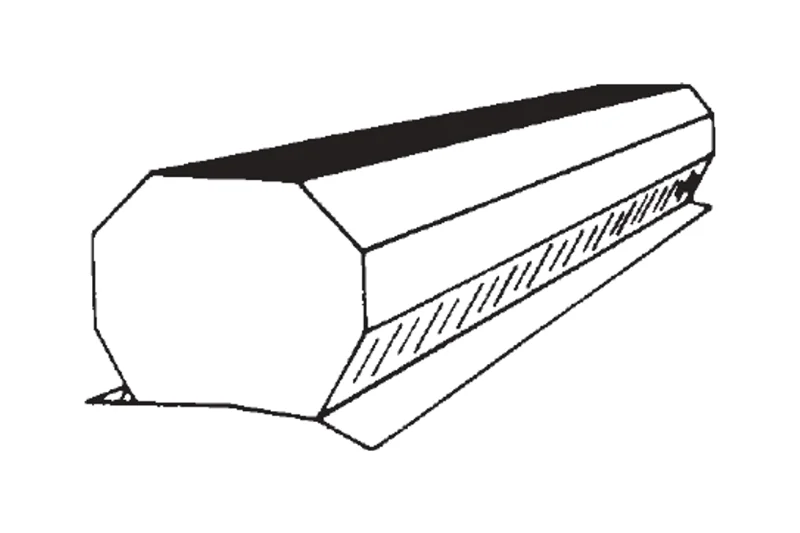

1 / 3 · MBCI published product reference figure. The shown finish and configuration are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Confirm current price and availability before ordering.
Published product details
- Published size
- 9' x 10'-0"; 12" x 10'-0"
- Published gauges
- 26
- Published weight per piece
- 115.00#; 150.00#
- Published type
- Flat Base
Supplier specifications
| Part # | Size | Type | Gauge | Weight Each |
|---|---|---|---|---|
| HW-702 | 9' x 10'-0" | Flat Base | 26 | 115.00# |
| HW-704 | 12" x 10'-0" | Flat Base | 26 | 150.00# |
The published configuration includes a base, two end skirts, and one vent operator. The listed maximum roof slope is 6:12; confirm compatibility with the roof.
Product resources
Request current drawings and installation instructions for your selected product.

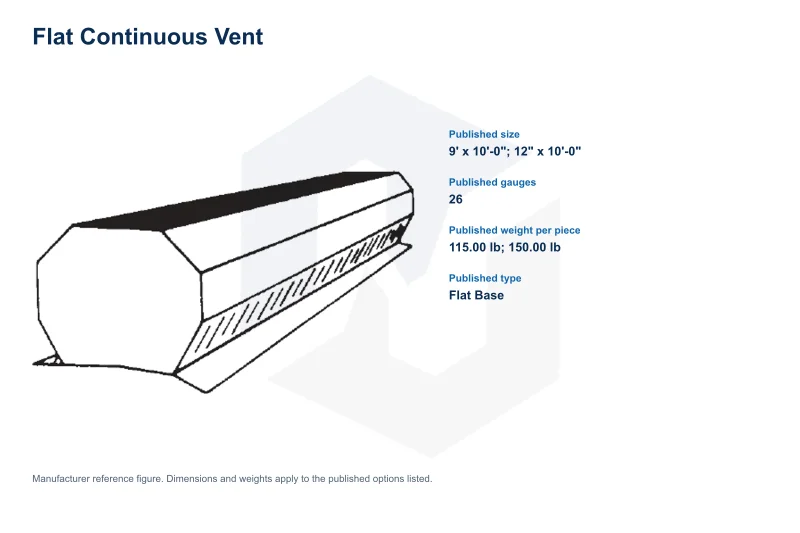

Product visualization. Some details are approximate; confirm specifications for your application.
