Corrugated Light Transmitting Panel - Non-Reinforced
Corrugated Light Transmitting Panel - Non-Reinforced. A light transmitting panel for introducing daylight through a compatible building panel assembly. Coordinate its profile, dimensions, support, and fastening with the surrounding metal panels and the required safety controls. Choose color / finish, gauge, and length for your project.
Part: 81.1570

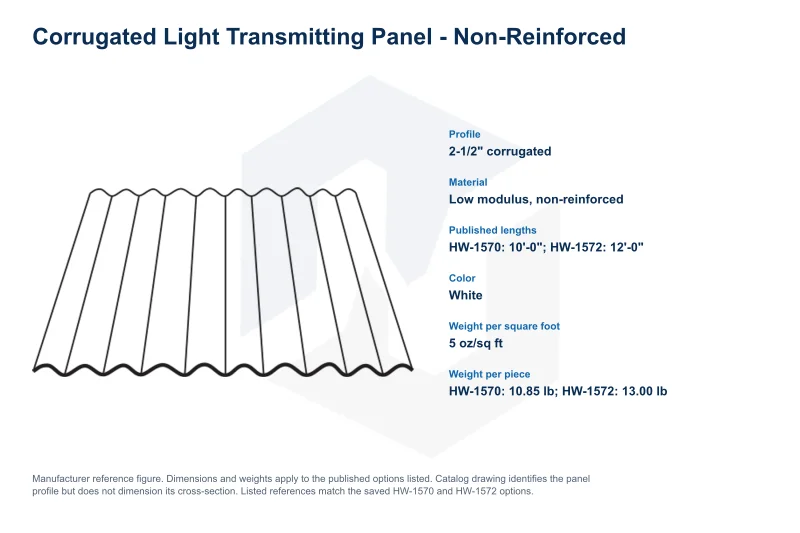

1 / 3 · MBCI published product reference figure. The shown finish and configuration are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Confirm the price basis, specifications, and availability before ordering.
Published product details
- Profile
- 2-1/2" corrugated
- Material
- Low modulus, non-reinforced
- Published lengths
- HW-1570: 10'-0"; HW-1572: 12'-0"
- Color
- White
- Weight per square foot
- 5 oz/sq ft
- Weight per piece
- HW-1570: 10.85 lb; HW-1572: 13.00 lb
Catalog drawing identifies the panel profile but does not dimension its cross-section. Listed references match the saved HW-1570 and HW-1572 options.
Light transmitting panels require appropriate controls to prevent falls through the panel. Confirm the applicable installation and safety requirements; the panel is not a walking surface.
Product resources
Request current drawings and installation instructions for your selected product.
- Confirm the physical unit for thickness code 05/08. It does not establish steel gauge or weight in ounces per square foot.
Product visualization. Some details are approximate; confirm specifications for your application.
